Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine

G00471183

Courtesy of NISSAN MOTOR CO., U.S.A.

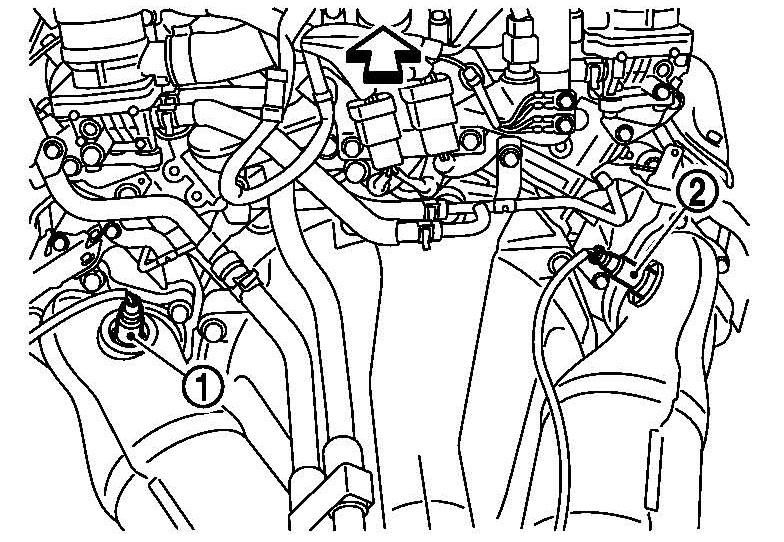

Fig 2: Rear Of Engine

G00471184

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Base Of Right "B" Pillar

G00471185

Courtesy of NISSAN MOTOR CO., U.S.A.

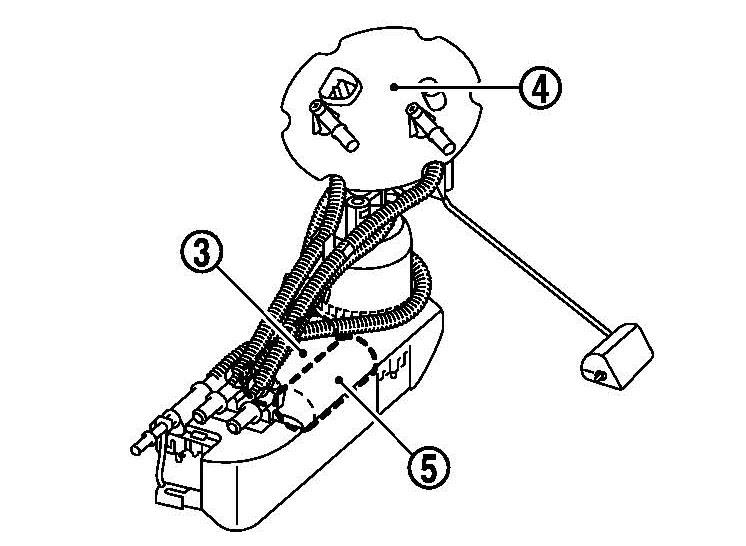

Fig 4: Top Of Fuel Tank

G00471186

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Right Rear Of Engine Compartment

G00471187

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Dash, Kick Panels & Center Console

G00471170

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Engine Compartment

G00471171

Courtesy of NISSAN MOTOR CO., U.S.A.

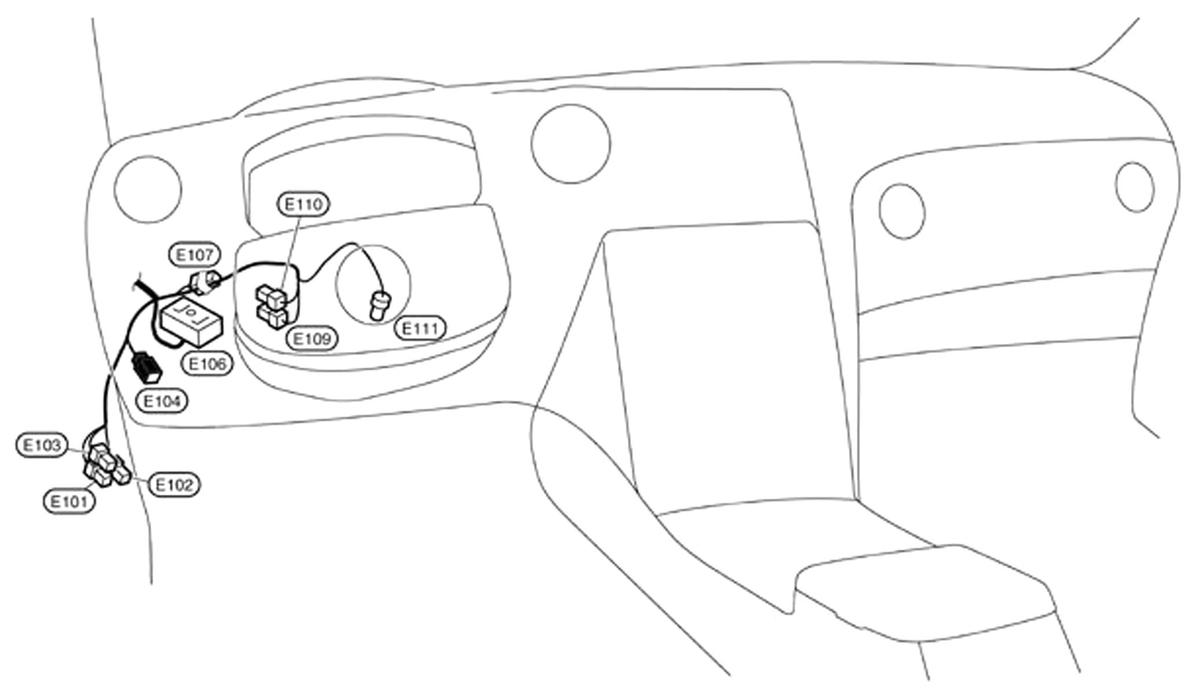

Fig 8: Left End Of Dash

G00471172

Courtesy of NISSAN MOTOR CO., U.S.A.

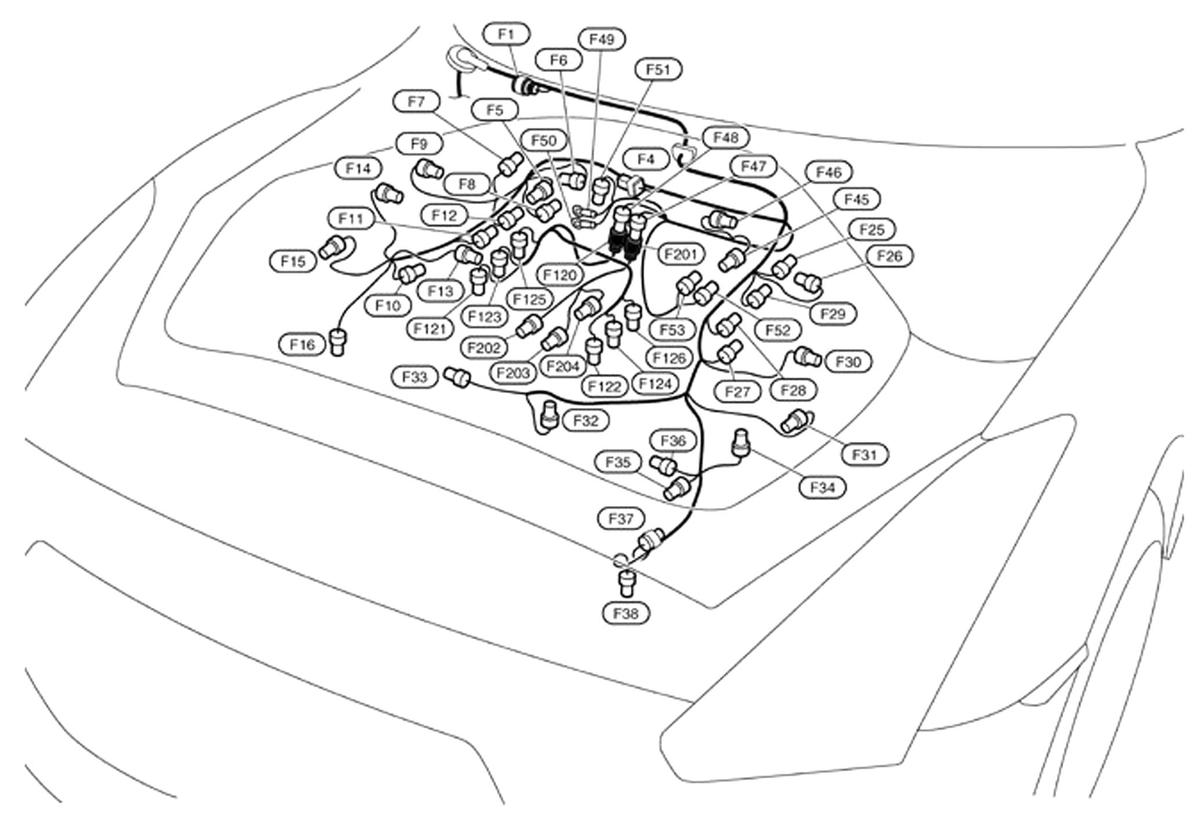

Fig 9: Engine

G00471173

Courtesy of NISSAN MOTOR CO., U.S.A.

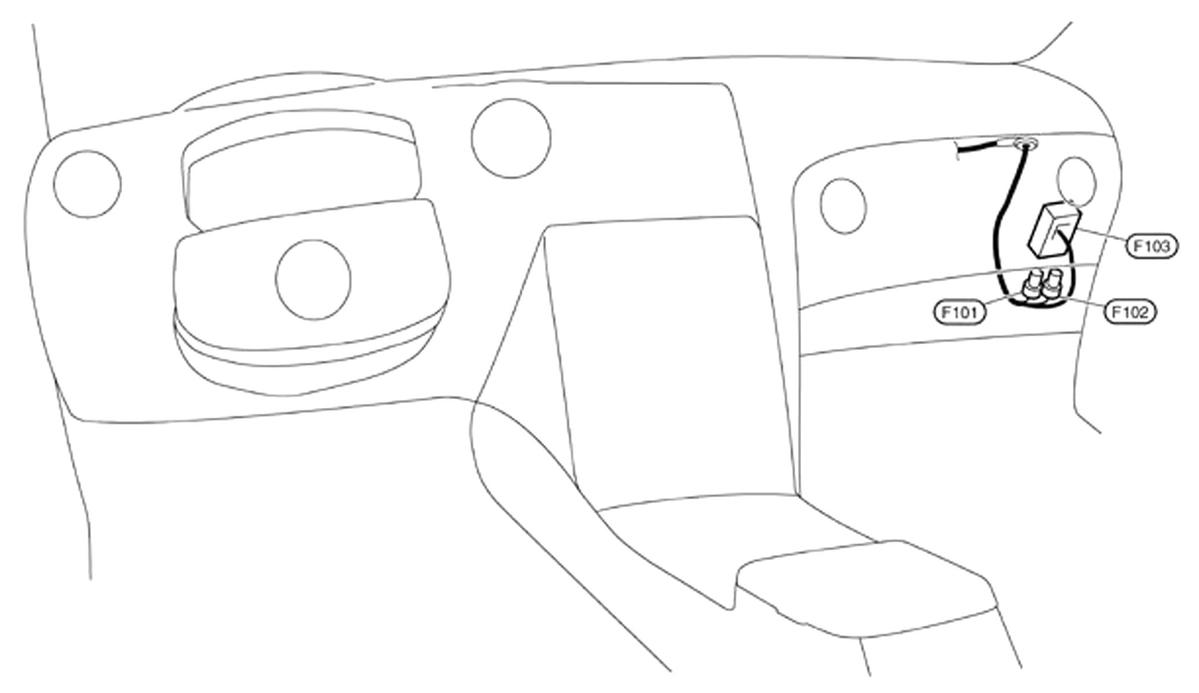

Fig 10: Right End Of Dash

G00471174

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Left Side Of Vehicle

G00471175

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Right Side Of Vehicle

G00471176

Courtesy of NISSAN MOTOR CO., U.S.A.

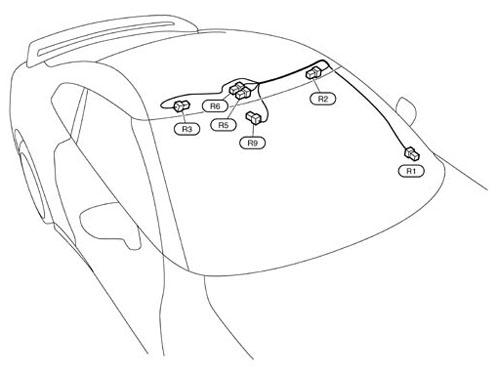

Fig 13: Front Of Roof

G00471177

Courtesy of NISSAN MOTOR CO., U.S.A.

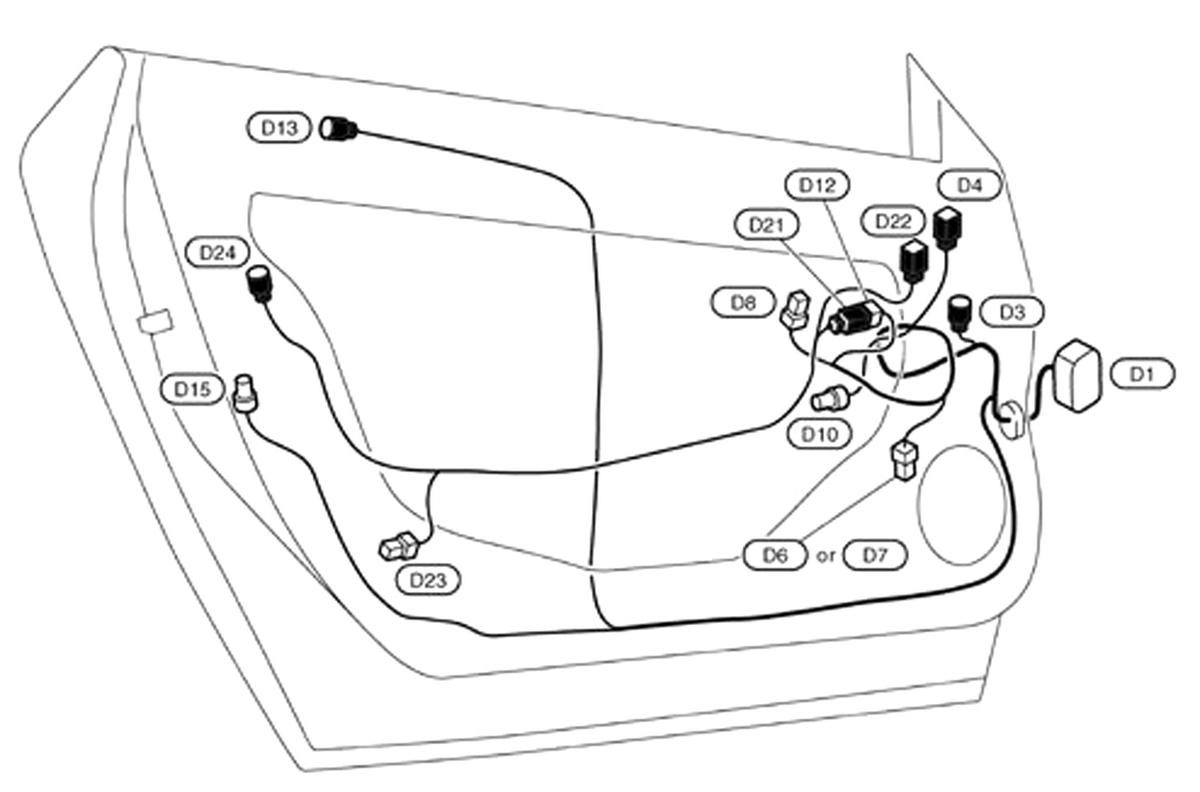

Fig 14: Driver's Door

G00471178

Courtesy of NISSAN MOTOR CO., U.S.A.

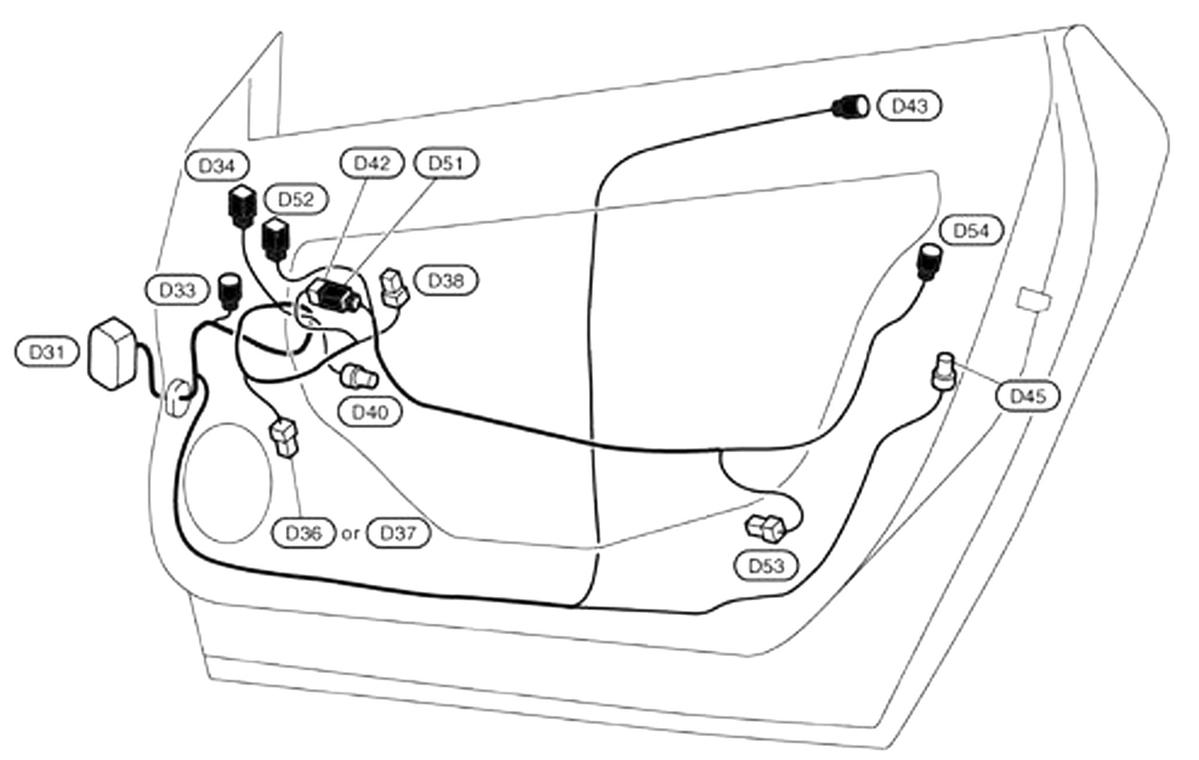

Fig 15: Front Passenger's Door

G00471179

Courtesy of NISSAN MOTOR CO., U.S.A.

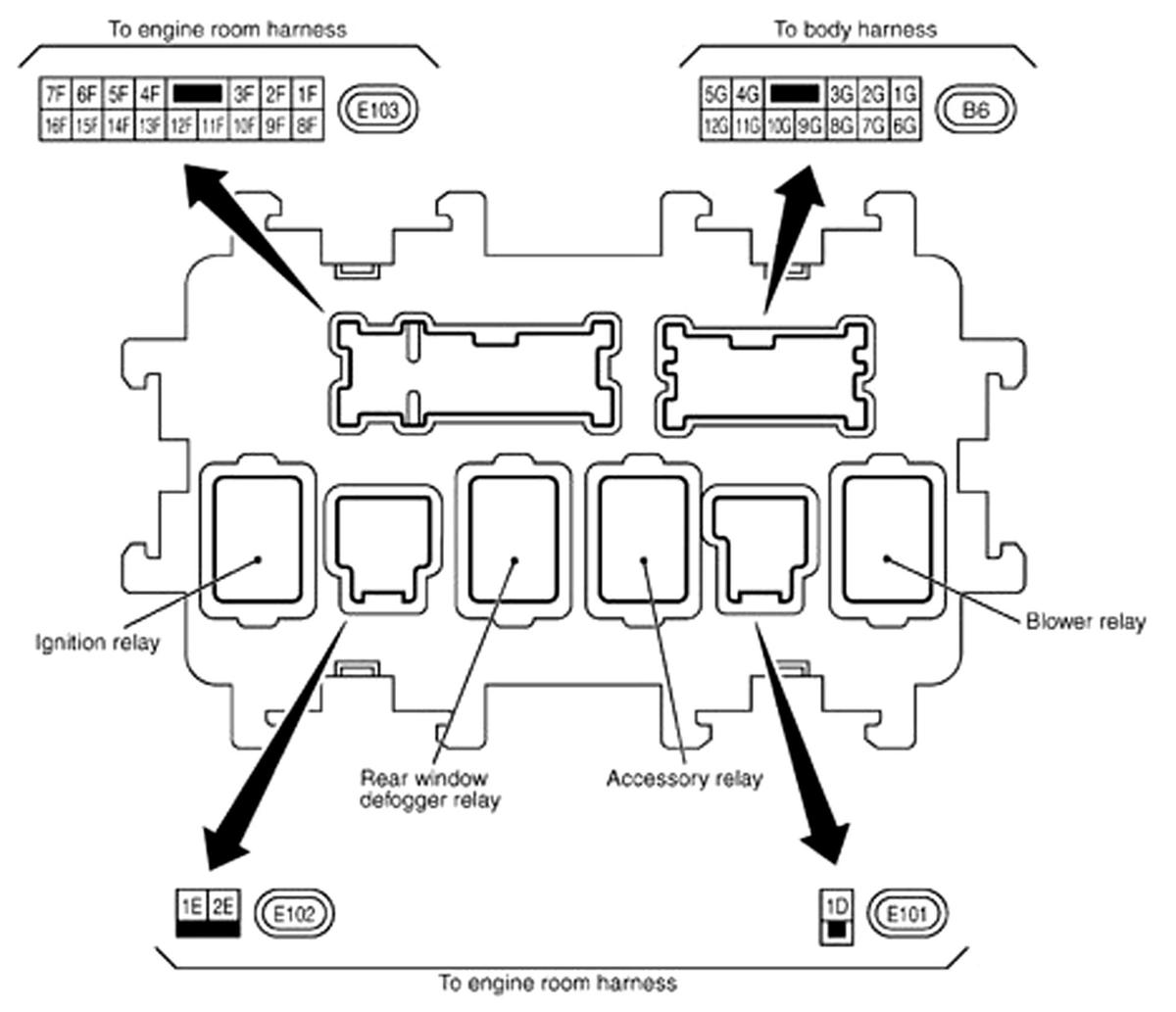

Fig 16: Fuse Block (J/B)

G00471180

Courtesy of NISSAN MOTOR CO., U.S.A.

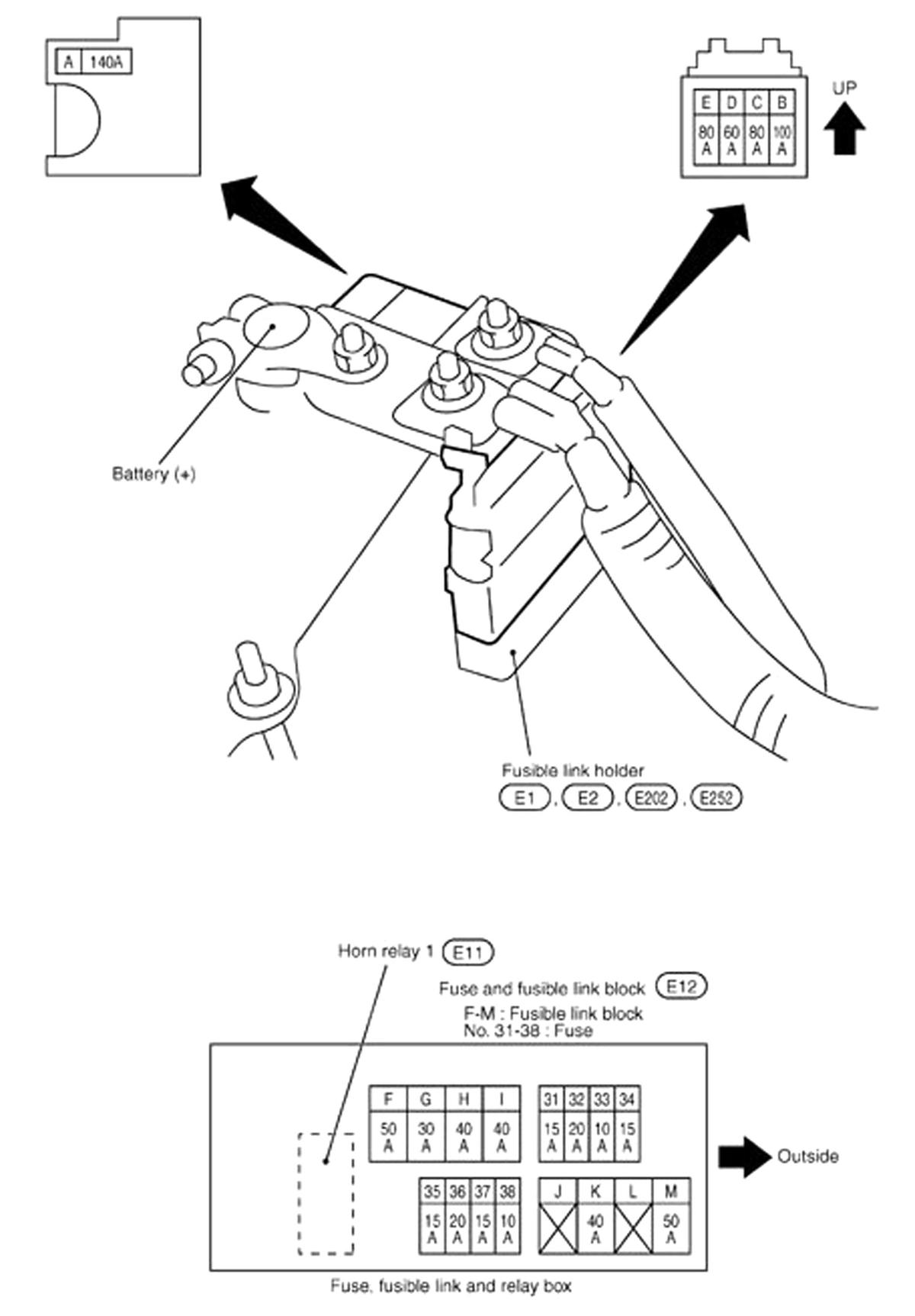

Fig 17: Fuse & Fusible Link Block

G00471181

Courtesy of NISSAN MOTOR CO., U.S.A.

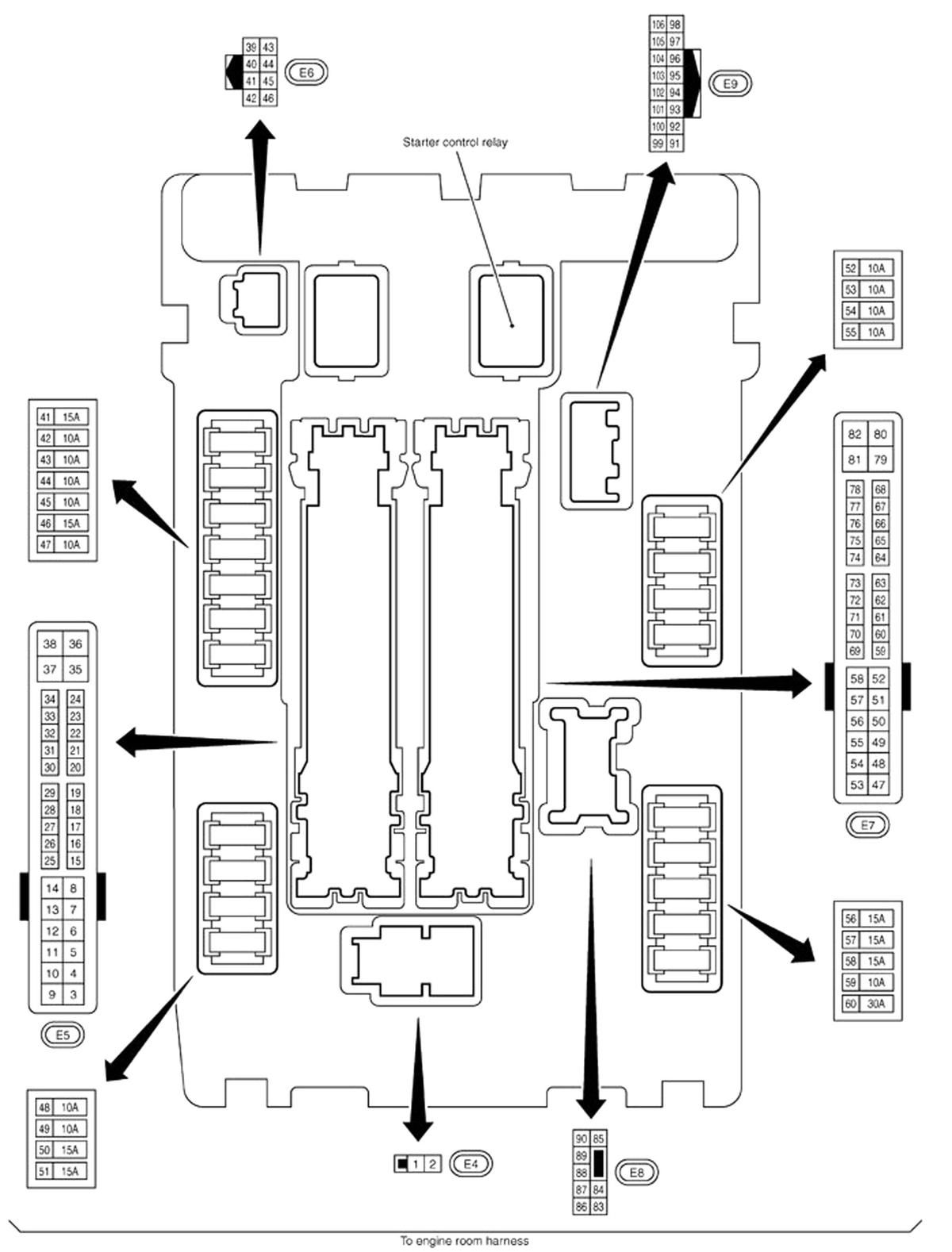

Fig 18: IPDM E/R (Intelligent Power Distribution Module Engine Room)

G00471182

Courtesy of NISSAN MOTOR CO., U.S.A.

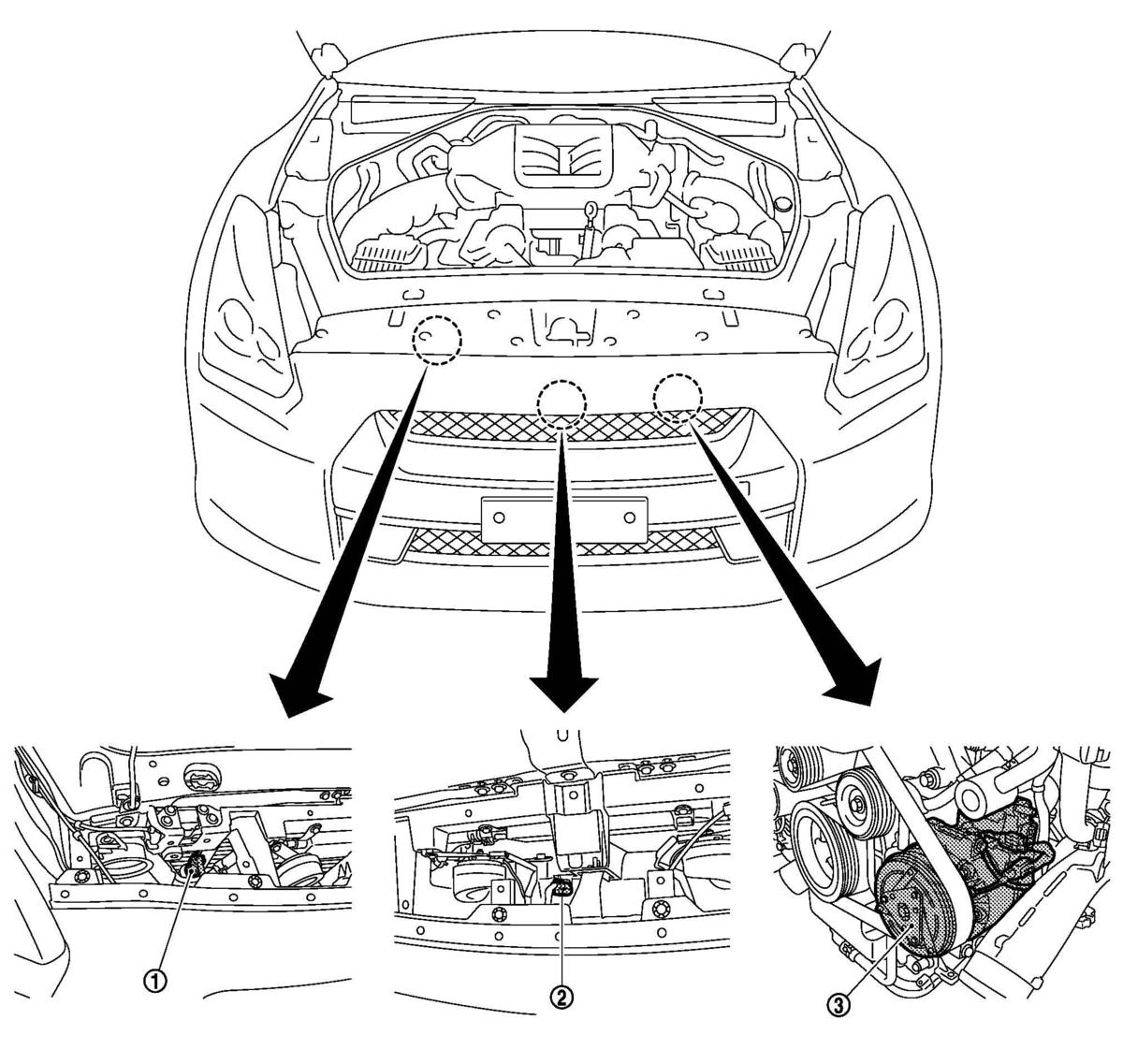

Fig 19: Engine Compartment

G00471188

Courtesy of NISSAN MOTOR CO., U.S.A.

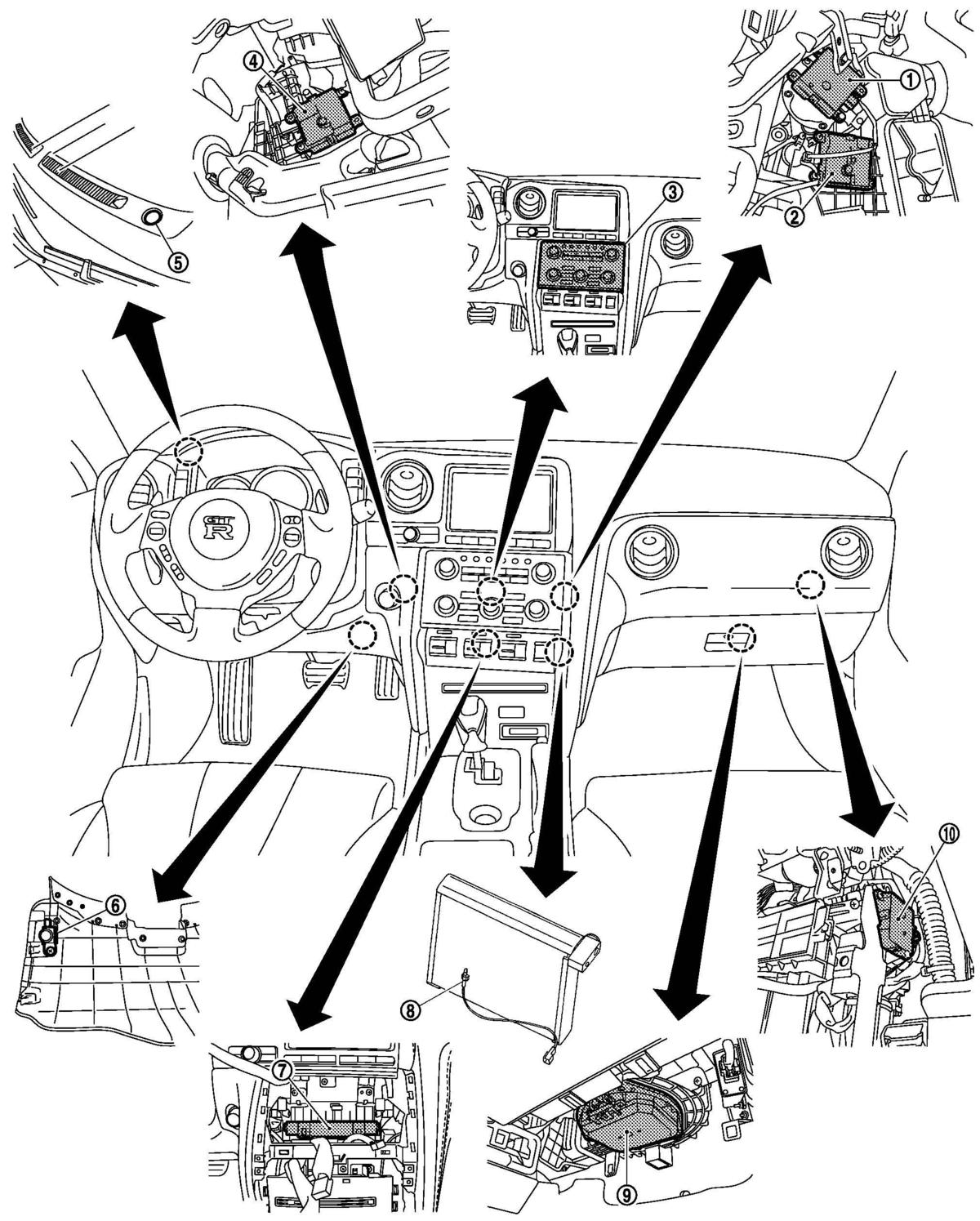

Fig 20: Dash

G00471189

Courtesy of NISSAN MOTOR CO., U.S.A.
