Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

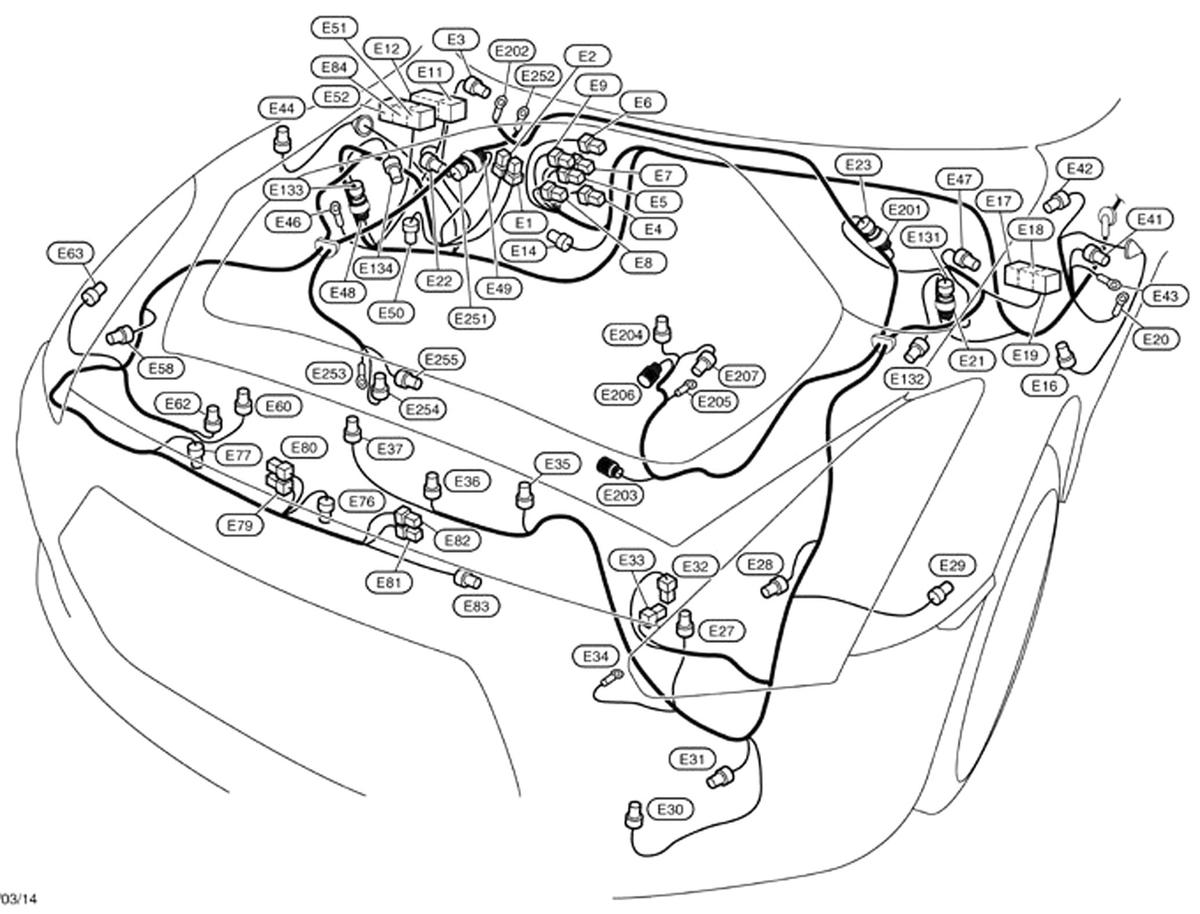

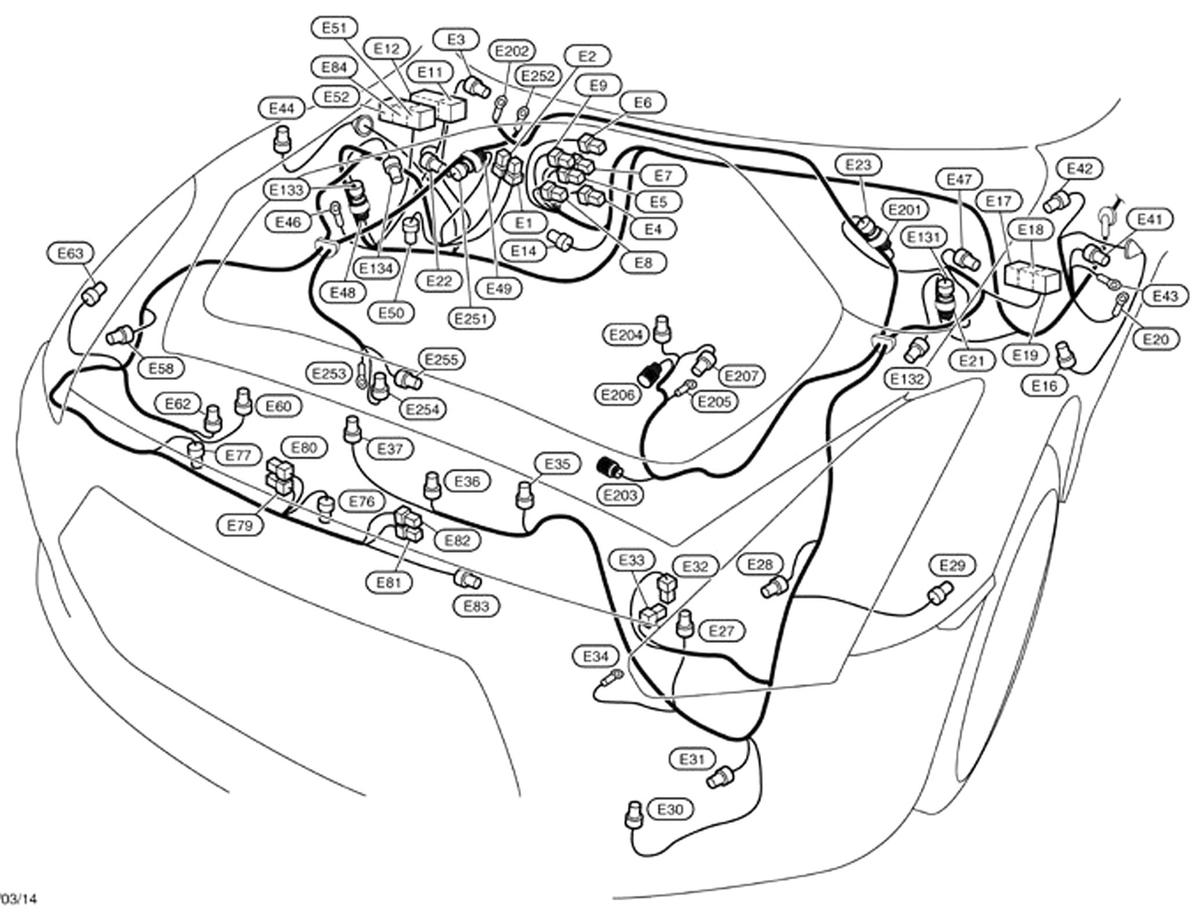

| ABS Actuator & Electric Control Unit (E41) | Left rear corner of engine compartment. See Figure. |

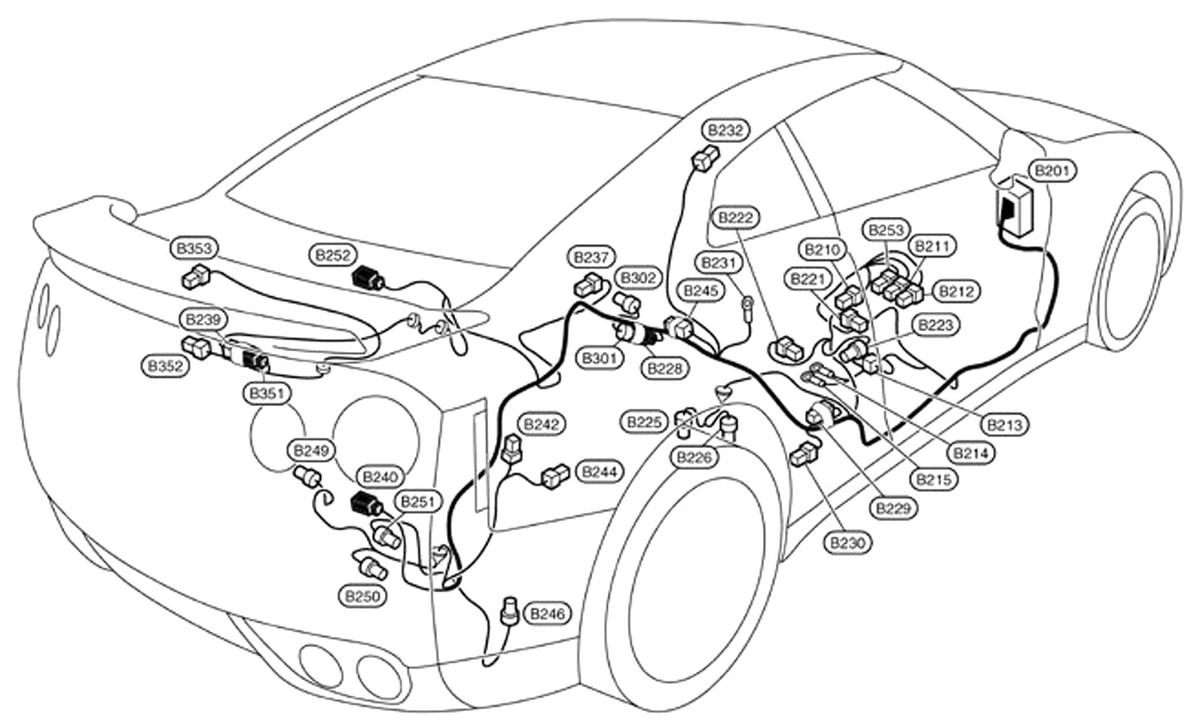

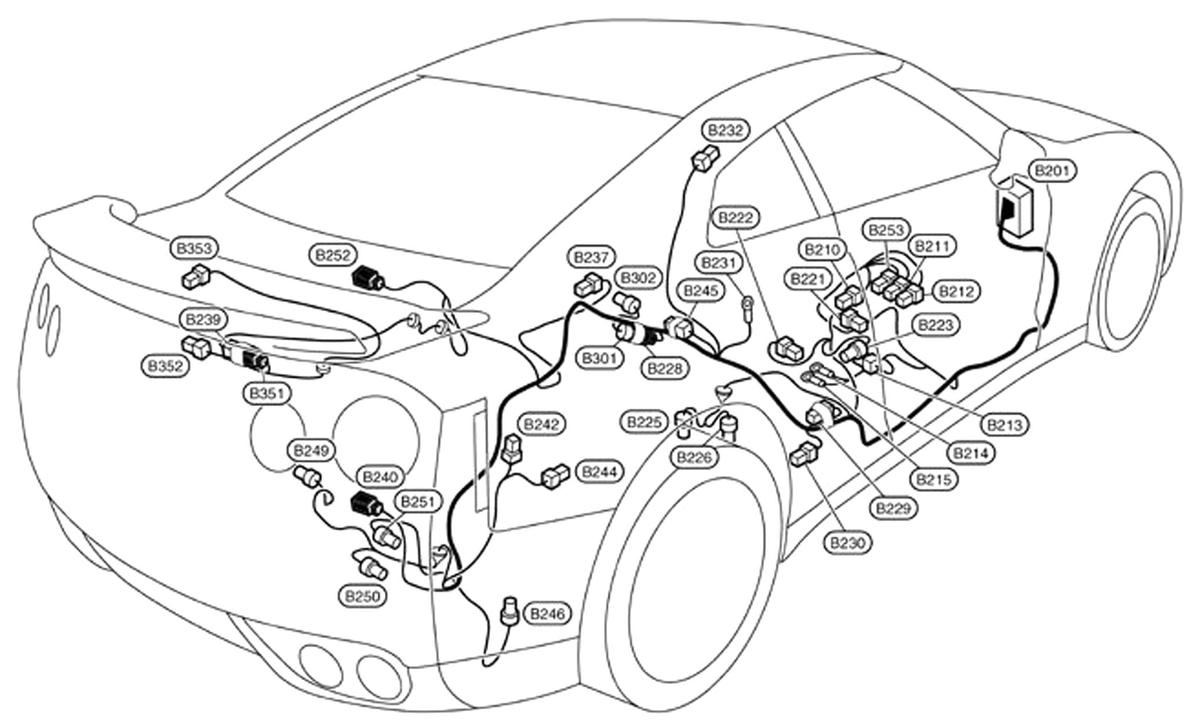

| AWD Control Unit (B213) | Under front passenger's seat. See Figure. |

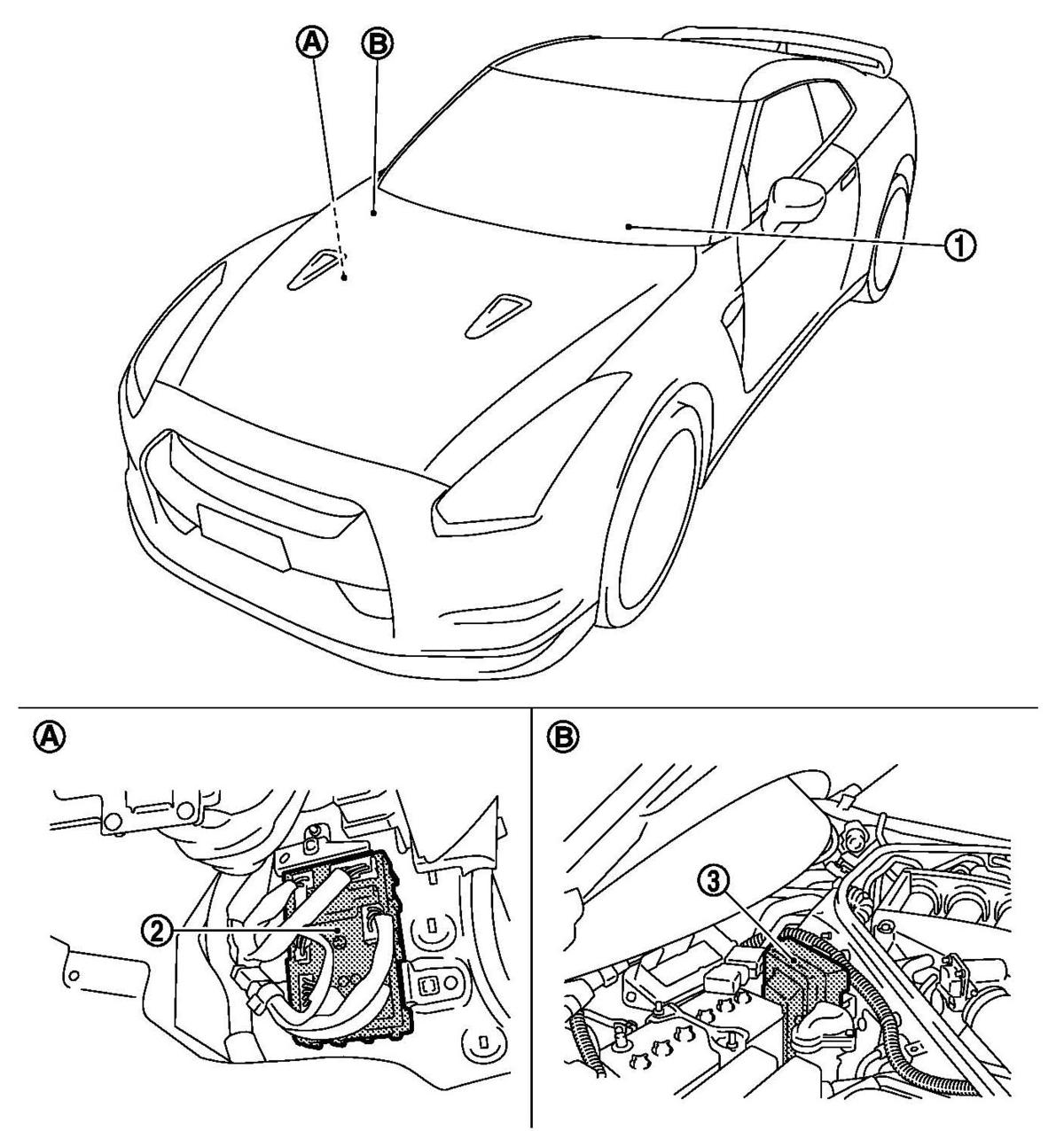

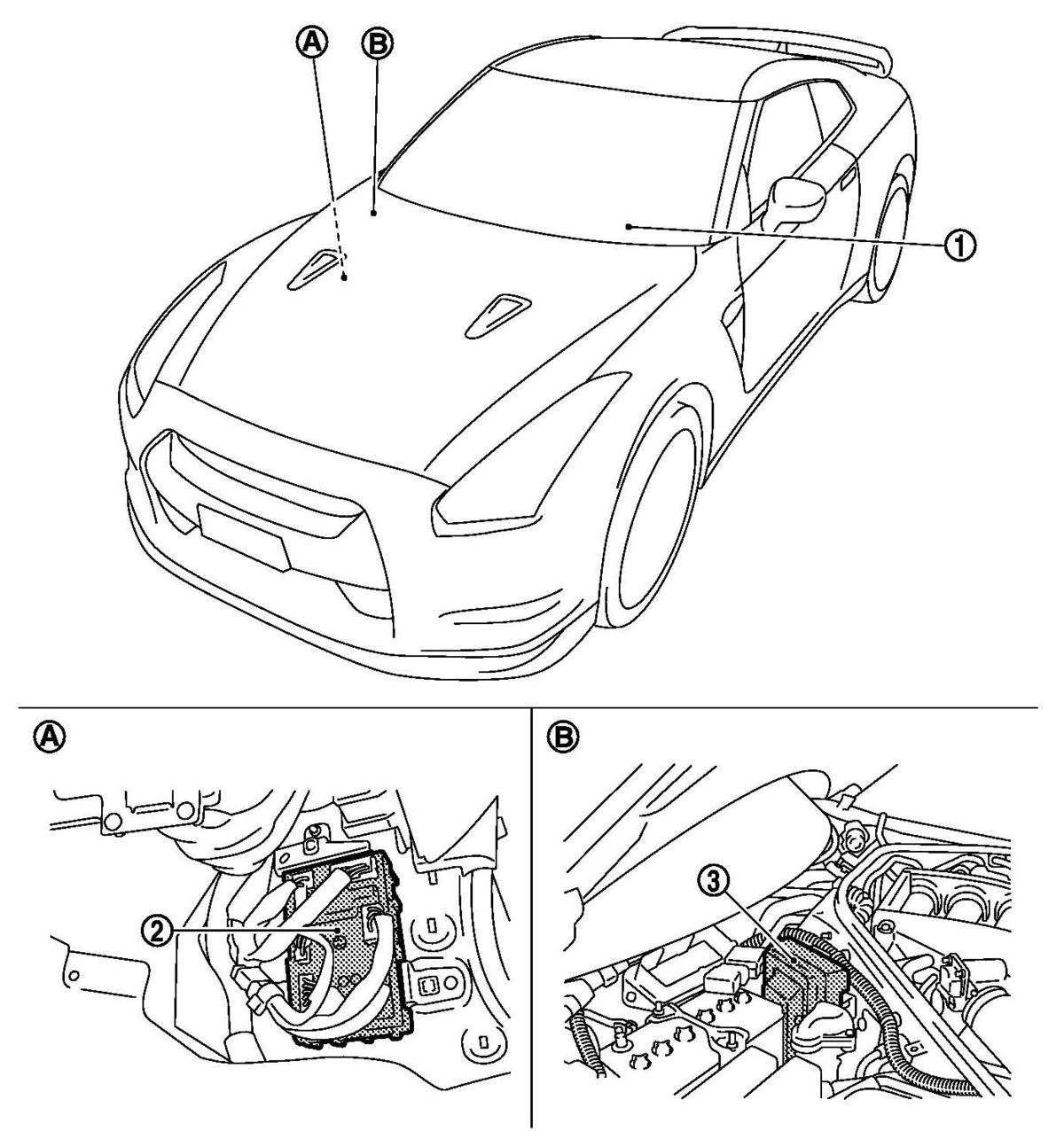

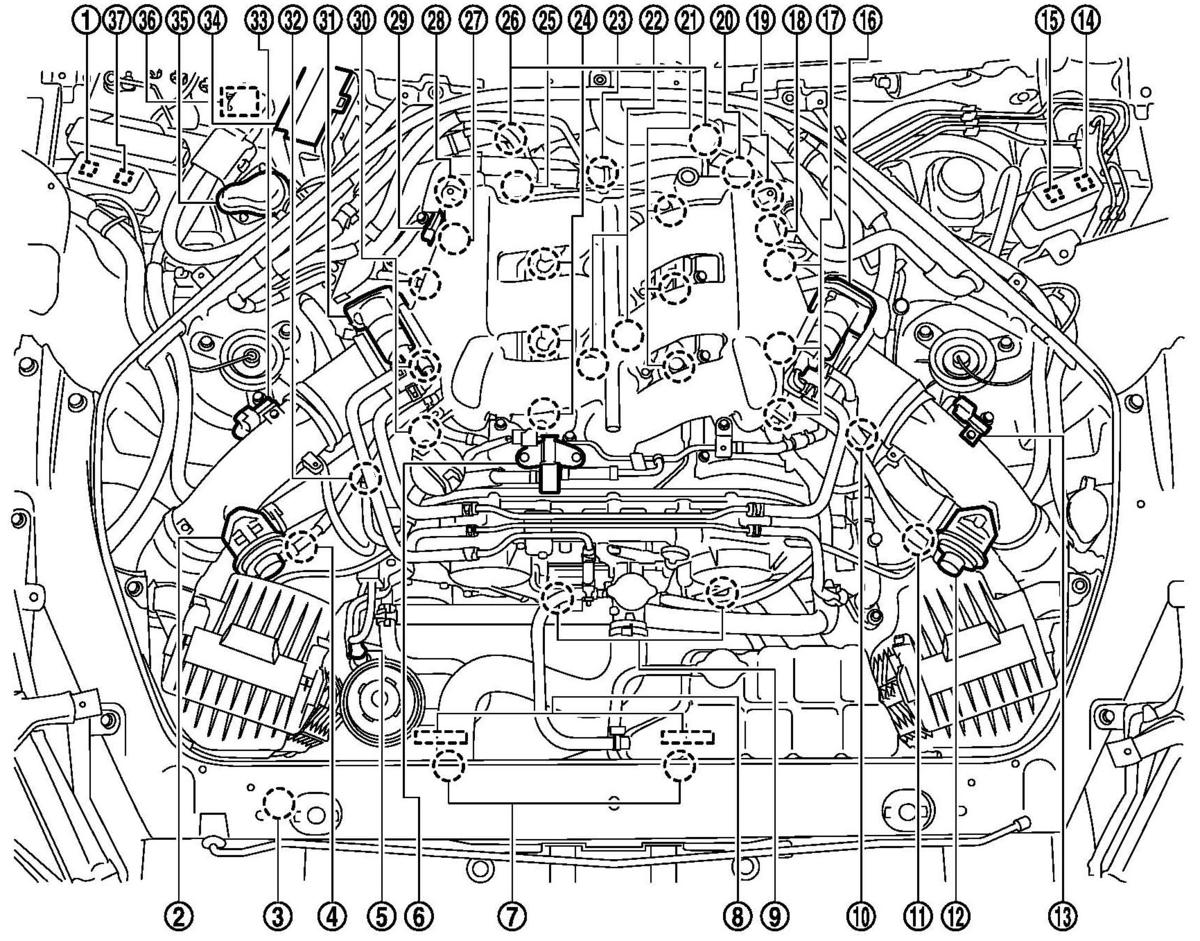

| BCM (Body Control Module) (2) | Right rear corner of engine compartment. See Figure. |

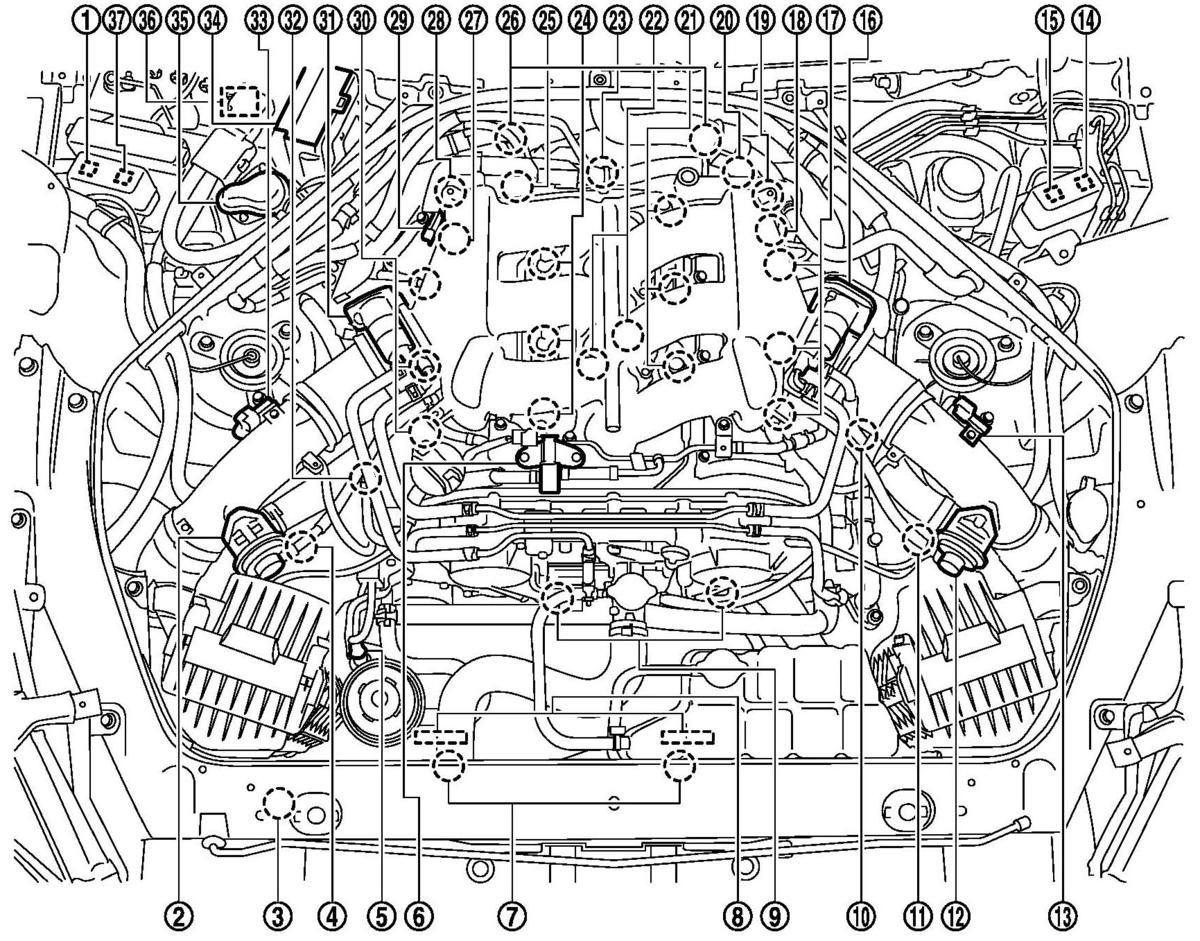

| Cooling Fan Module (8) | Attached to respective cooling fan. See Figure. |

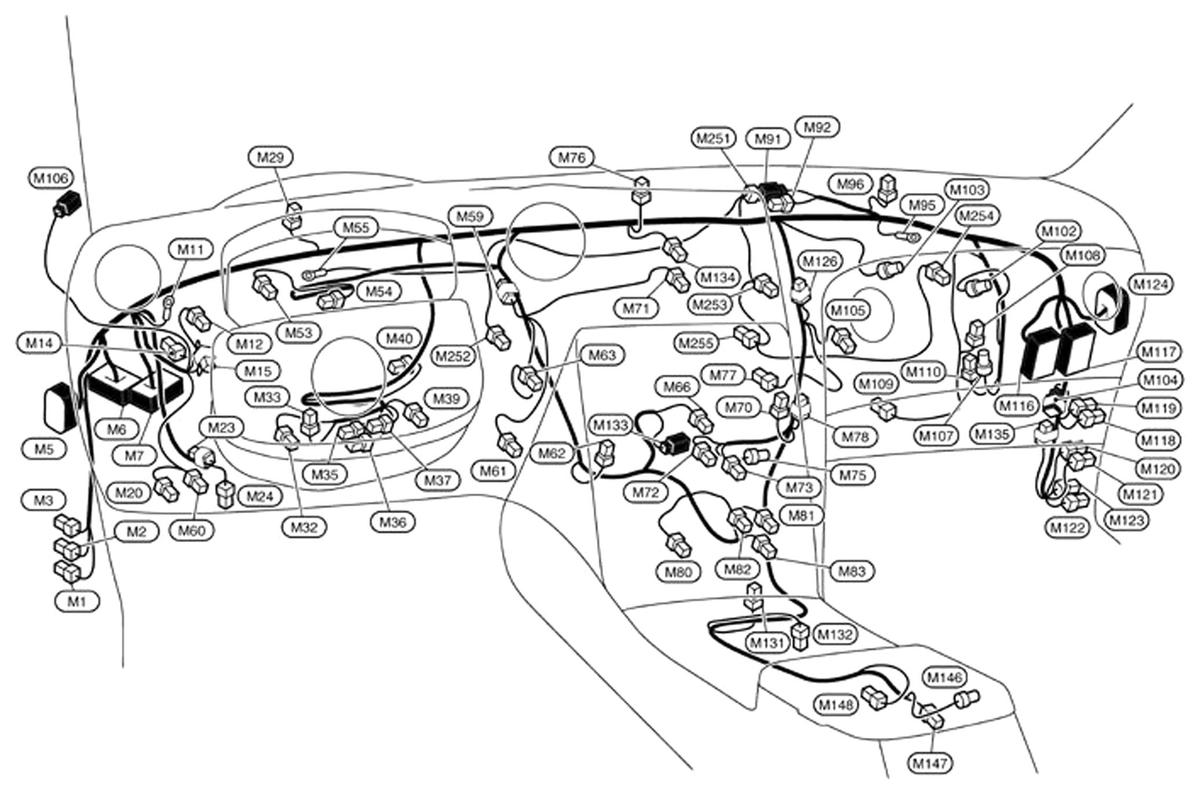

| ECM (Engine Control Module) (M107) | Right end of dash. See Figure. |
| E-SUS Control Unit (M110) | Right end of dash. See Figure. |

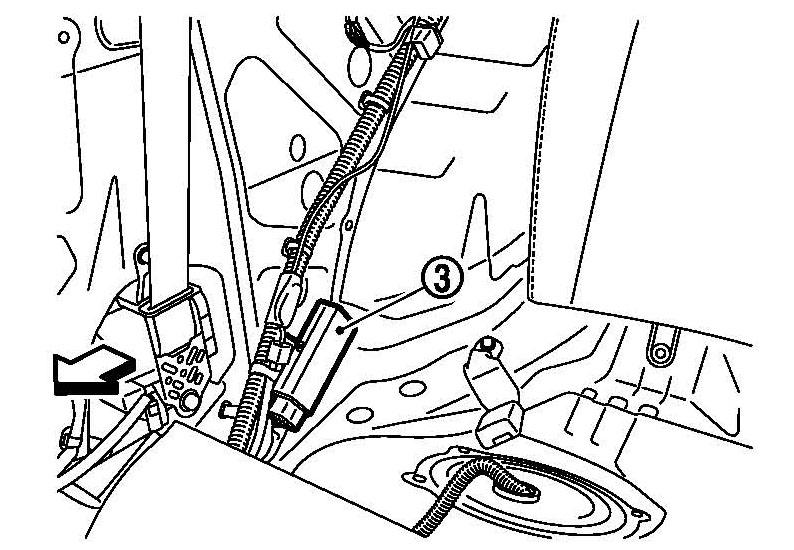

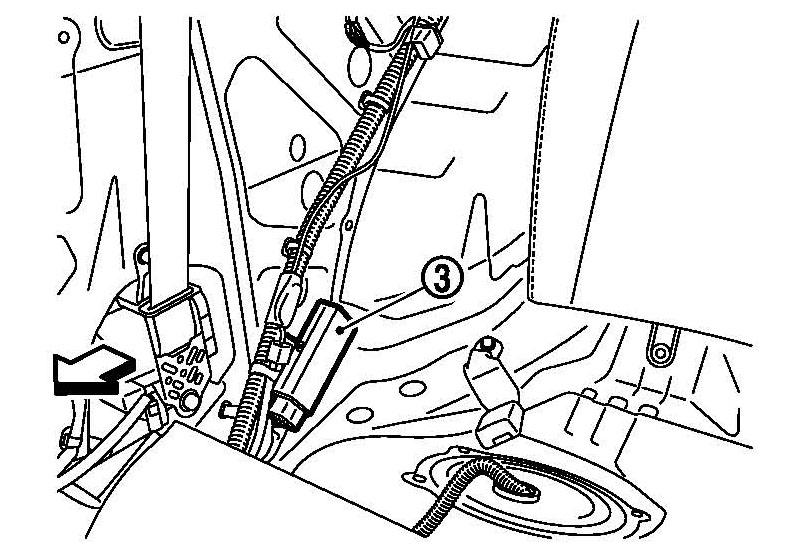

| Fuel Pump Control Module (FPCM) (3) | Base of right "B" pillar. See Figure. |
| Low Tire Pressure Warning Control Unit (M14) | Left end of dash. See Figure. |
| Occupant Classification System Control Unit (B253) | Under front passenger's seat. See Figure. |
| Power Steering Control Unit (M108) | Right side of dash. See Figure. |

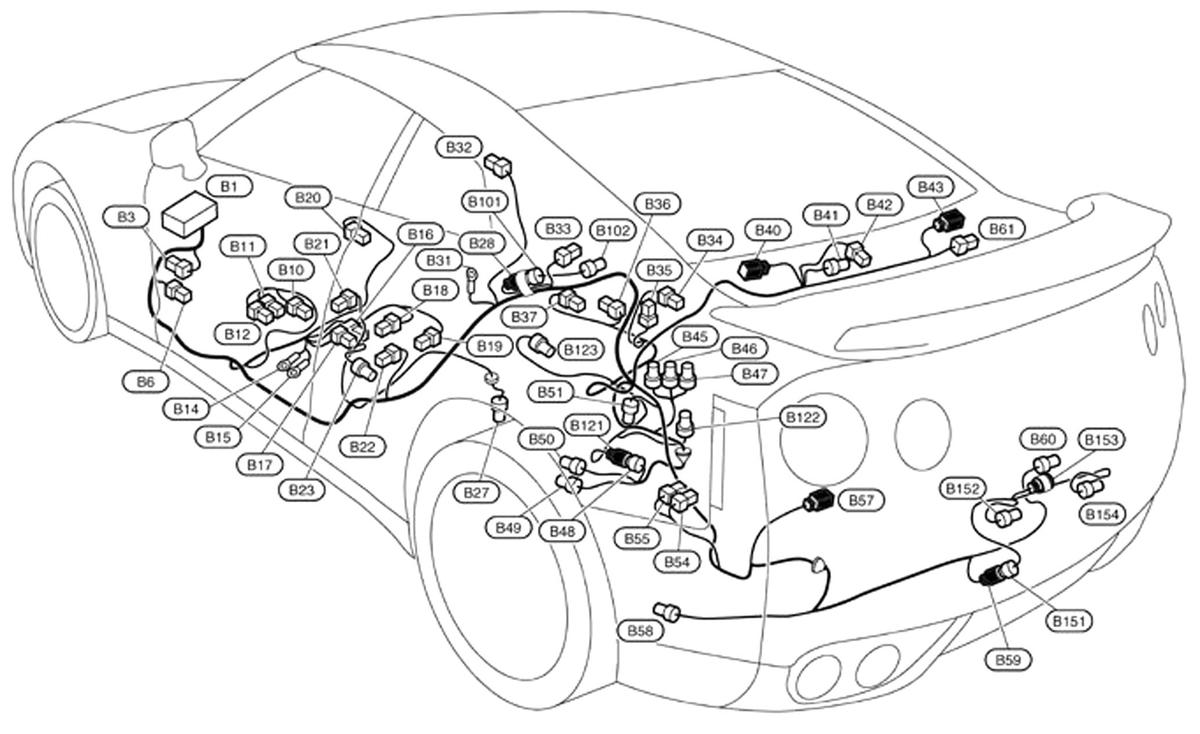

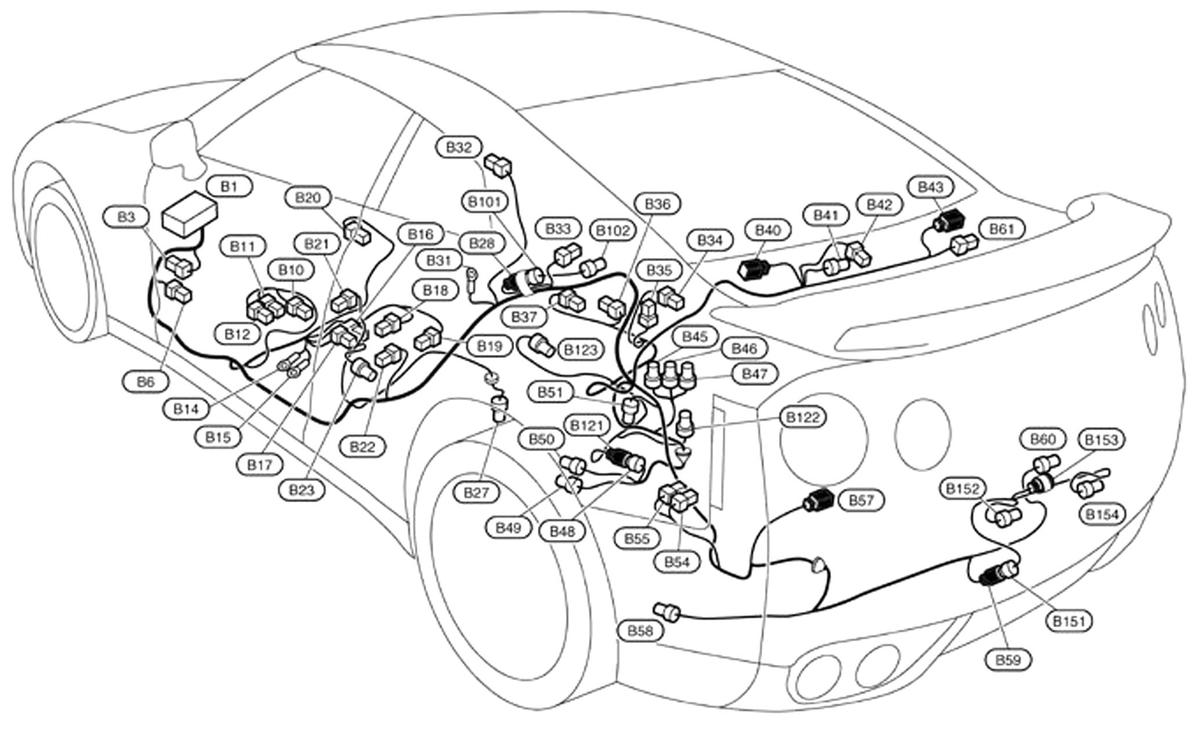

| TCM (Transmission Control Module) (B45) | Left side of luggage compartment. See Figure. |
