Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | Right rear of engine compartment. See Figure. |

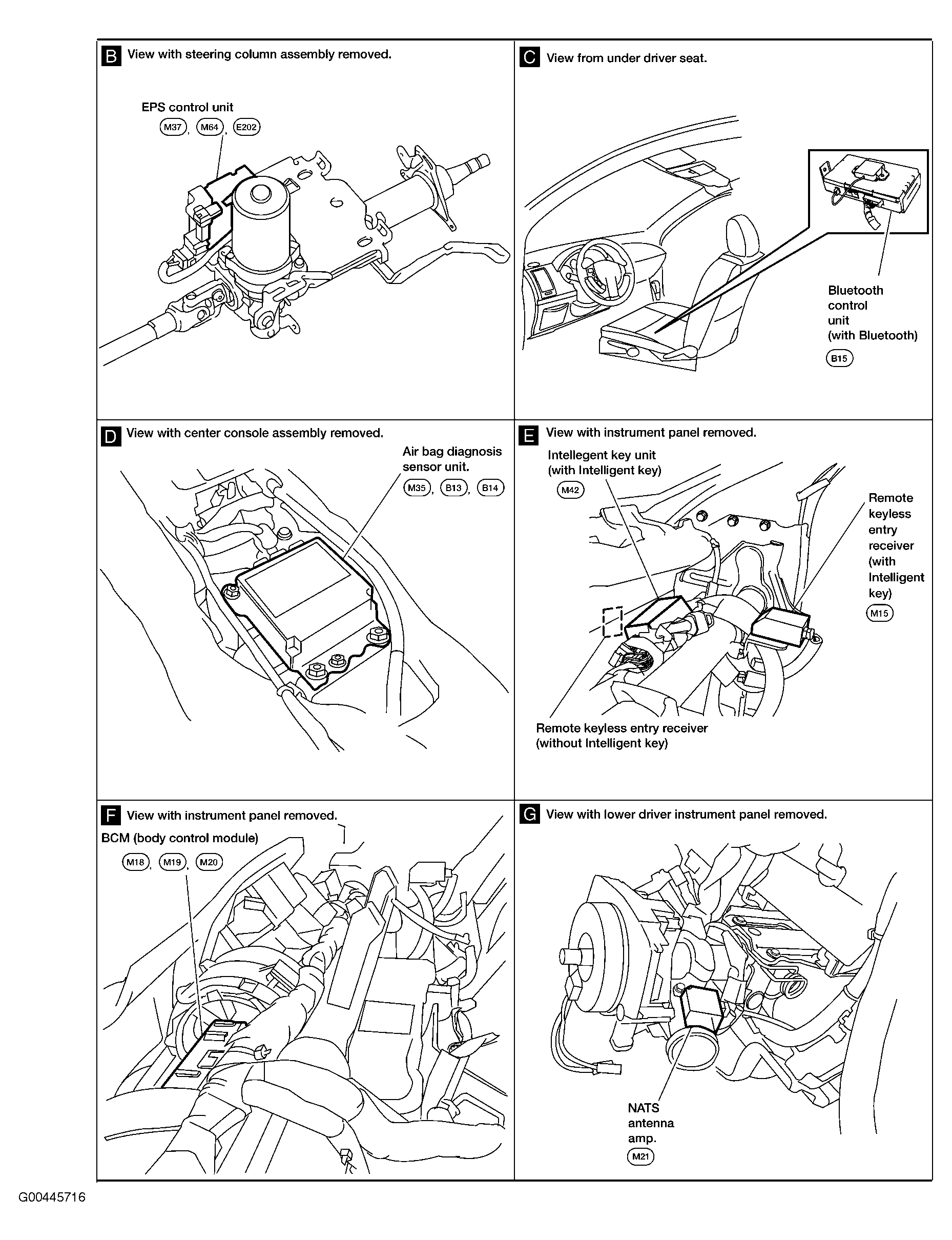

| Air Bag Diagnosis Sensor Unit | Below center floor console. See Figure. |

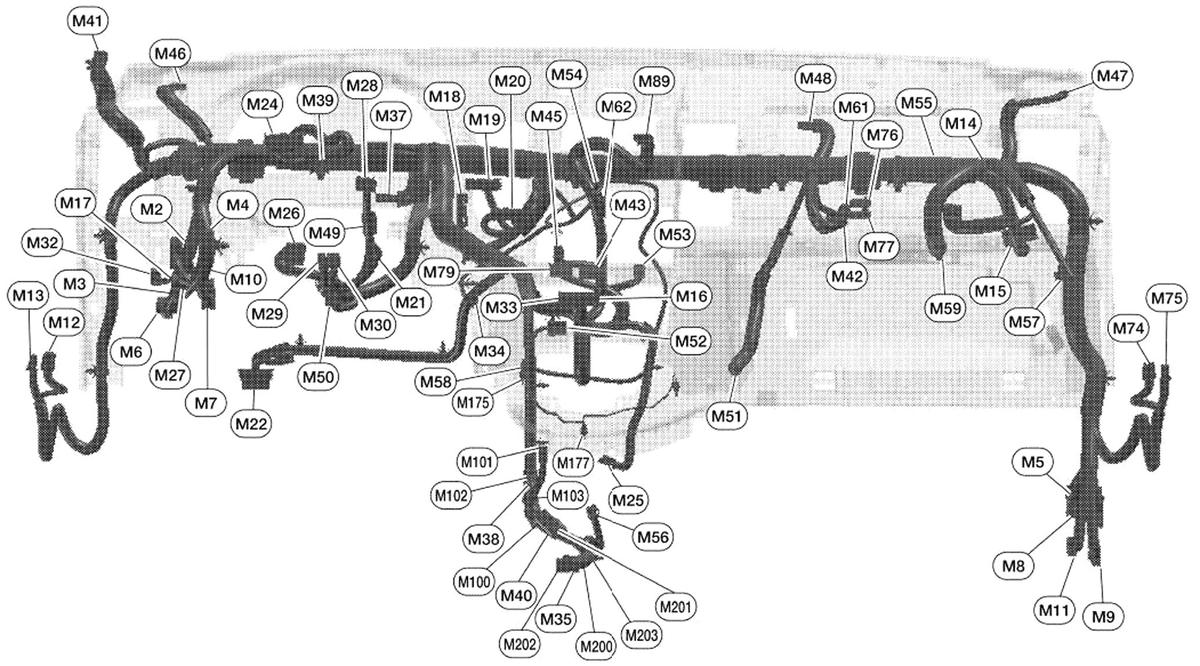

| BCM (Body Control Module) | Behind right side of dash. See Figure. |

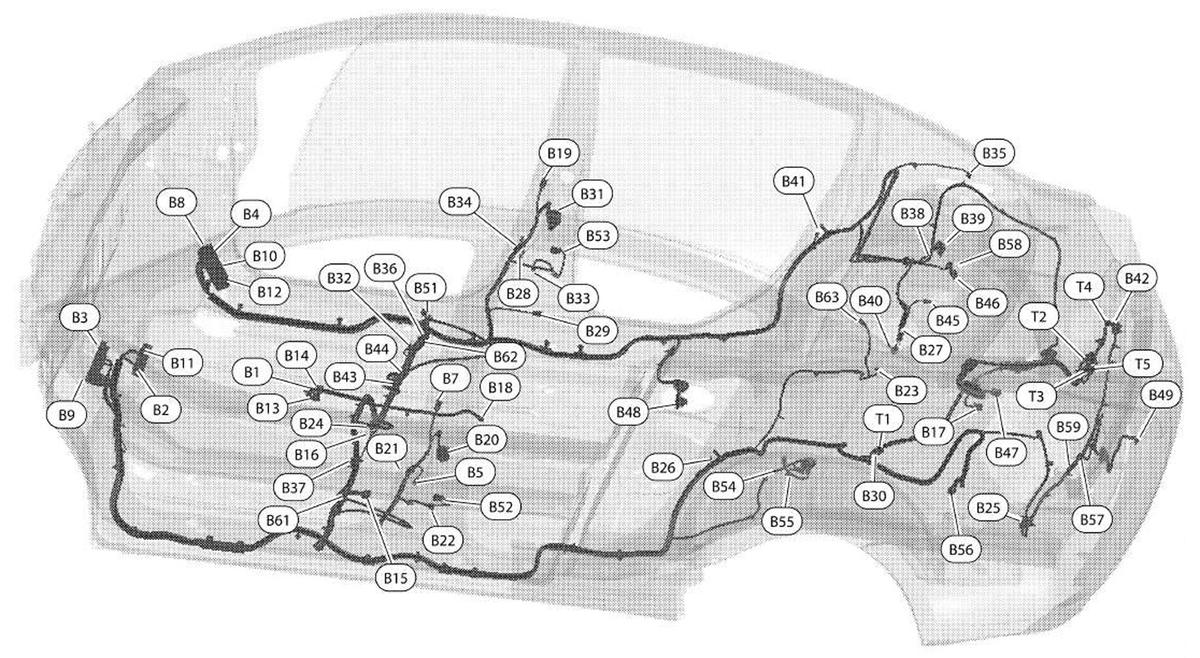

| Bluetooth Control Unit | Under driver's seat. See Figure. |

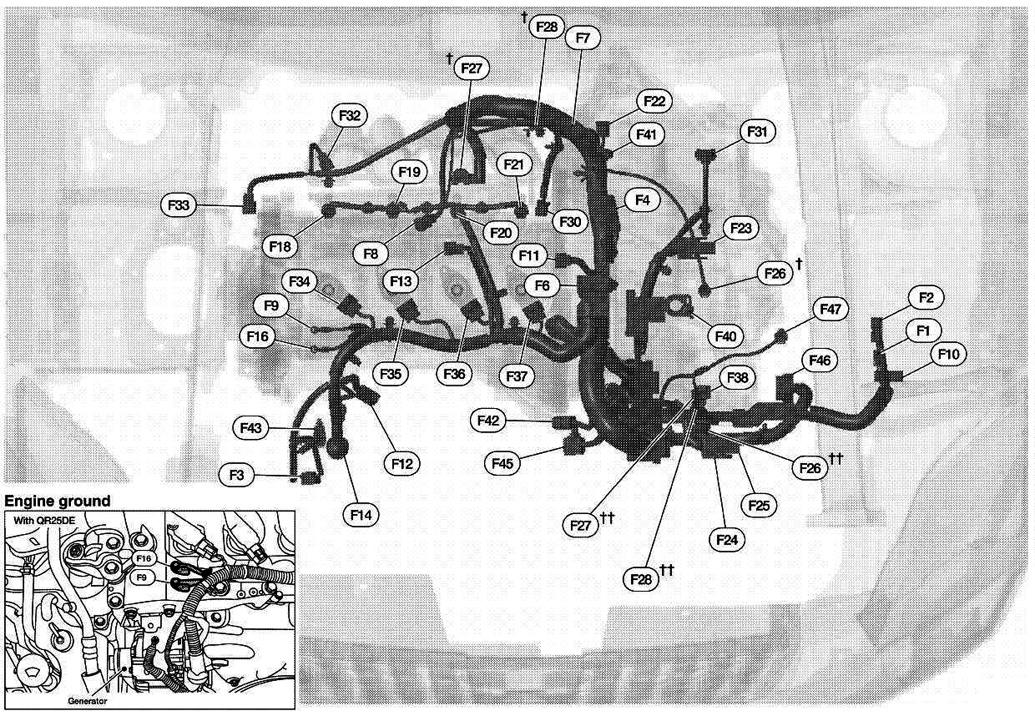

| ECM (E16) | On left side of firewall. See Figure. |
| Electric Throttle Control Actuator (2.0L) (F7) | On throttle body. See Figure. |
| Electric Throttle Control Actuator (2.5L) (F7) | On throttle body. See Figure. |
| EPS Control Unit | On steering column. See Figure. |
| Fan Control Amp. (M52) | Behind right side of dash. See Figure. |
| Front Left Side Air Bag Module (B37) | Under driver's seat. See Figure. |
| Front Right Side Air Bag Module (B51) | Under front passenger's seat. See Figure. |
| Left Side Curtain Air Bag Module (B23) | Base of left "C" pillar. See Figure. |
| Right Side Curtain Air Bag Module (B35) | Base of right "C" pillar. See Figure. |
| TCM (Transmission Control Module) | Left front of engine compartment. See Figure. |
