Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

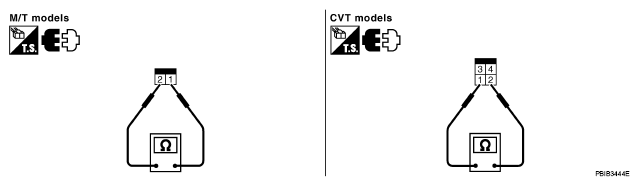

    Fig 1: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
    G04925545Courtesy of NISSAN MOTOR CO., U.S.A.
    CONTINUITY REFERENCE CHART

    Condition Continuity
    Brake pedal: Fully released. Should not exist.
    Brake pedal: Slightly depressed. Should exist.

    If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL , and perform step  3 again.
