Accelerator Control System: Component

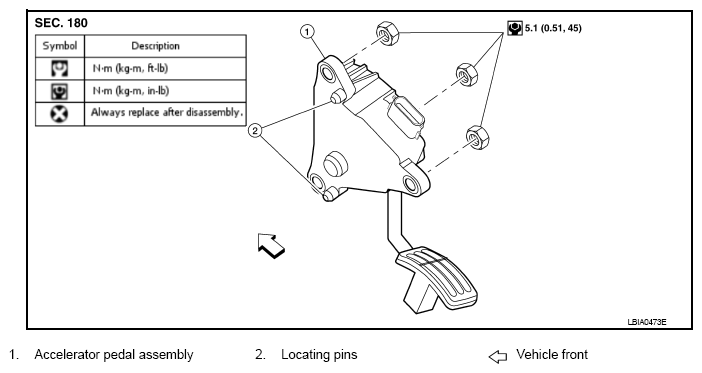

Fig 1: Accelerator Control System Components With Torque Specifications
G06548855Courtesy of NISSAN MOTOR CO., U.S.A.
