Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block (J/B) Behind left end of dash. See Figure.

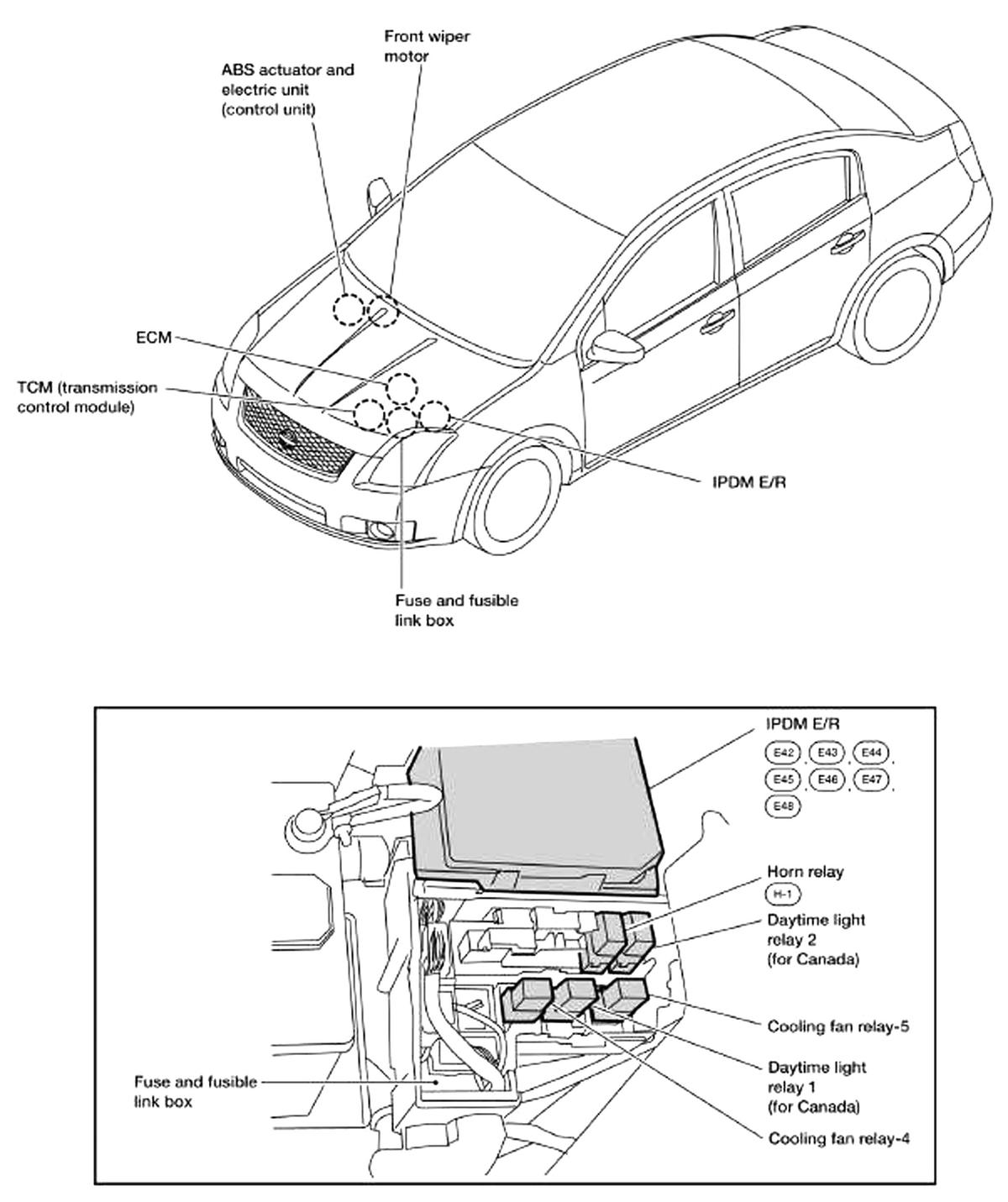

Fuse & Fusible Link Box Left front of engine compartment. See Figure.
Fusible Link Box (Battery) (F40) At battery. See Figure.
IPDM E/R (Intelligent Power Distribution Module Engine Room). Left front of engine compartment. See Figure.
