Engine Control System - Introduction (Qr25DE)
>>
Service Information
>>
Engine Control System
>>
Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Control System: Schematic

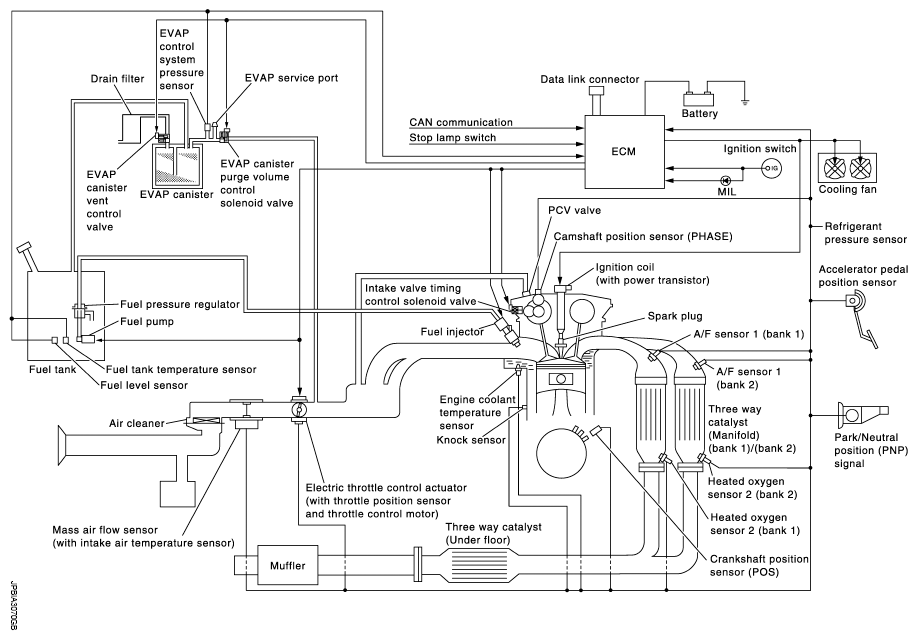

Fig 1: Engine Control System Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
