ASCD Indicator: Wiring Diagram

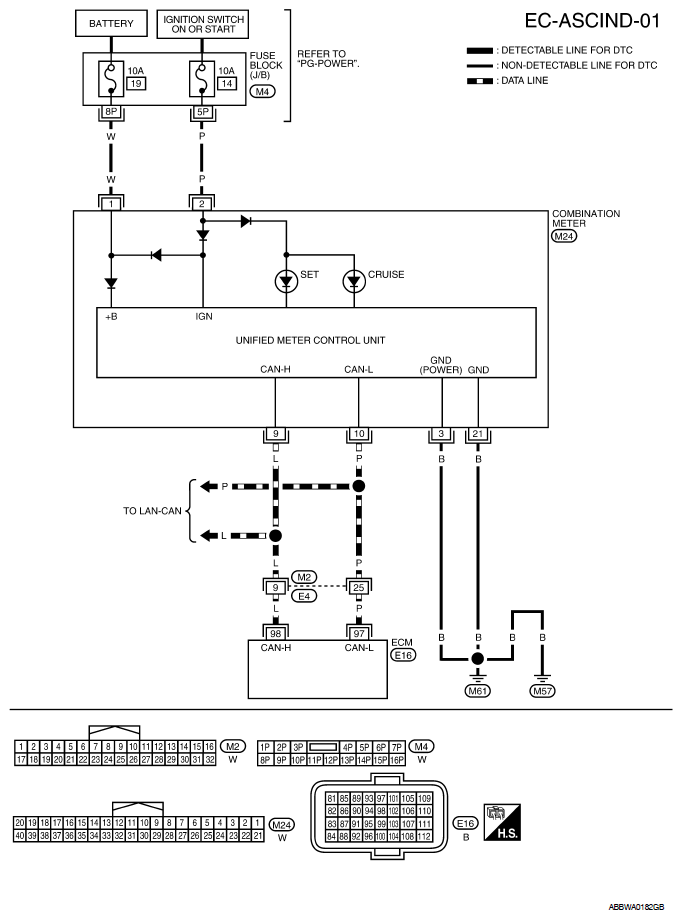

Fig 1: EC-ASCIND-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
