Method B

Remove No. 1 ignition coil (1). Refer to "REMOVAL AND INSTALLATION ".
- : Vehicle front
Fig 1: Location Of No. 1 Ignition Coil
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect No. 1 ignition coil (3) and No. 1 spark plug with suitable high-tension wire (1) as shown in the figure, and attach timing light (2) clamp to this wire.
- : Vehicle front
Fig 2: Connecting No. 1 Ignition Coil And No. 1 Spark Plug With Suitable High-Tension Wire
Courtesy of NISSAN MOTOR CO., U.S.A.

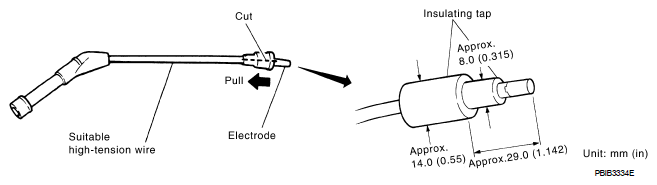

Fig 3: Identifying Electrode And High-Tension Wire
Courtesy of NISSAN MOTOR CO., U.S.A.
Check ignition timing.
- Timing indicator (1)

Fig 4: View Of Timing Indicator

Courtesy of NISSAN MOTOR CO., U.S.A.
