Connector Terminal Identification - Sedan

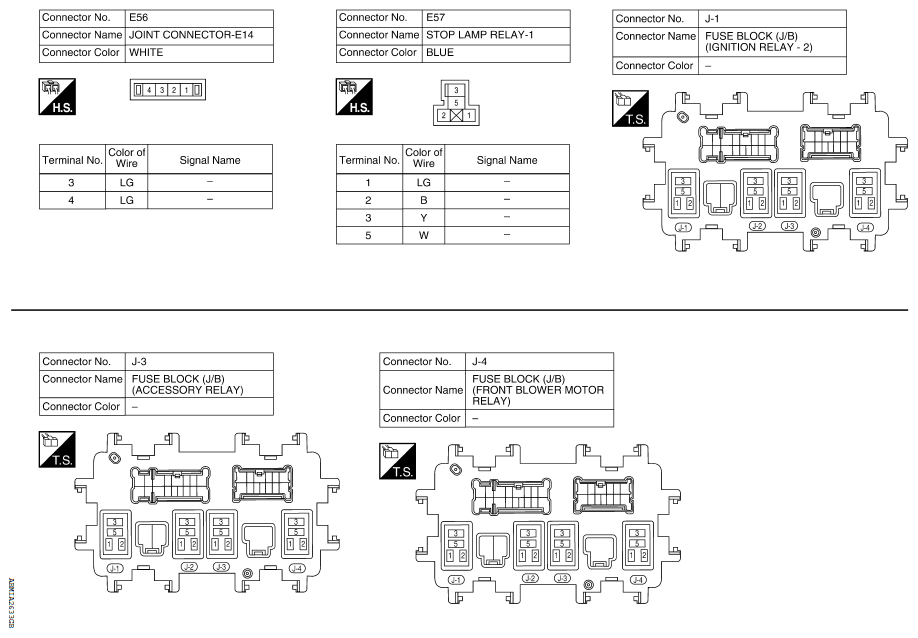

Fig 1: Identifying Power Distribution System Connectors - Sedan (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

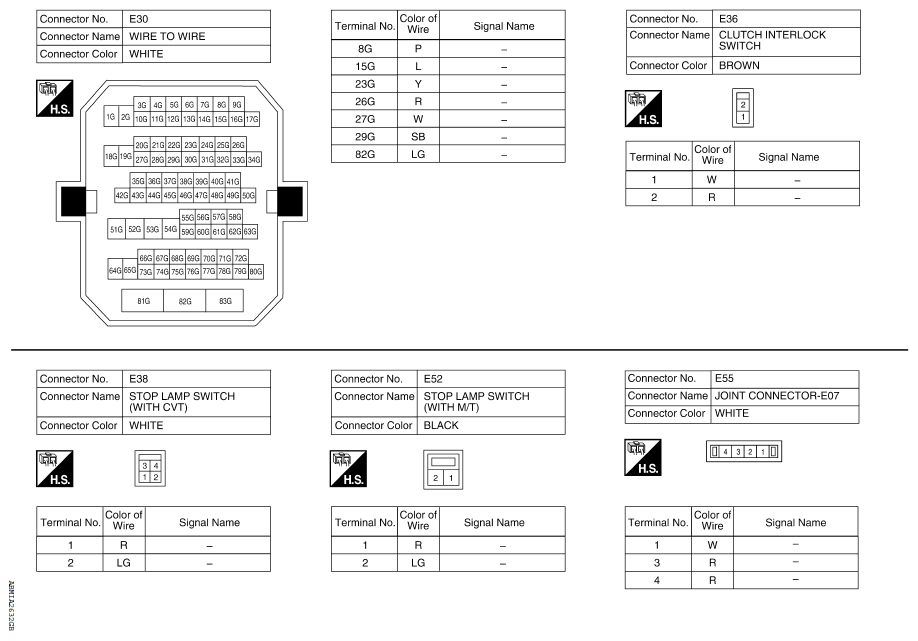

Fig 2: Identifying Power Distribution System Connectors - Sedan (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

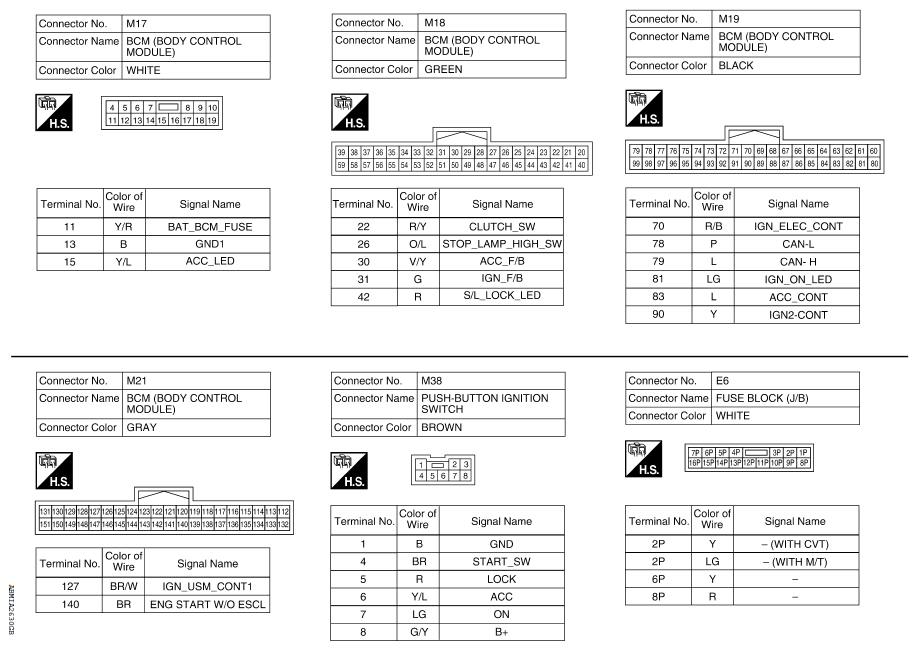

Fig 3: Identifying Power Distribution System Connectors - Sedan (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

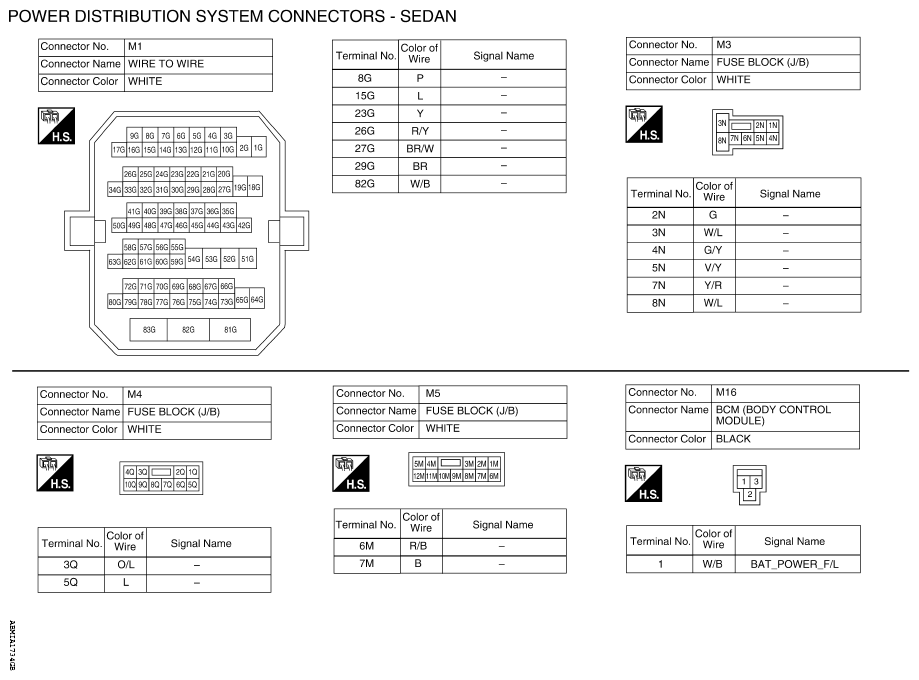

Fig 4: Identifying Power Distribution System Connectors - Sedan (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

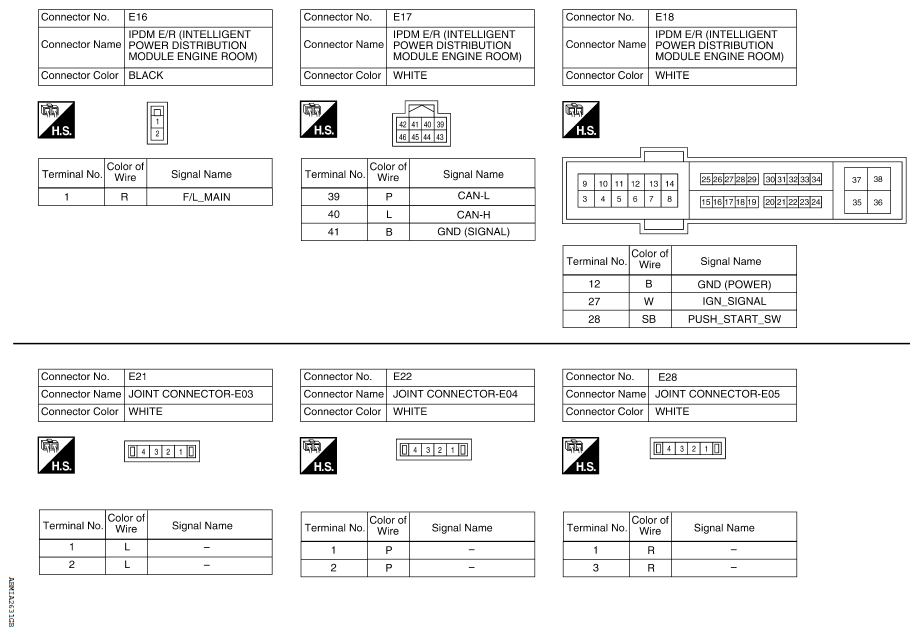

Fig 5: Identifying Power Distribution System Connectors - Sedan (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
