IGNITION TIMING: Special Repair Requirement

1. Attach timing light to No. 1 ignition coil (1) wire as shown in figure.

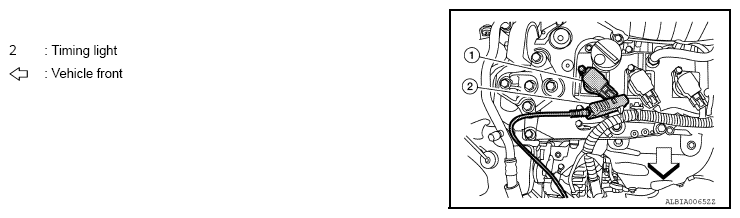

   Fig 1: Identifying Ignition Coil And Timing Light

   Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.

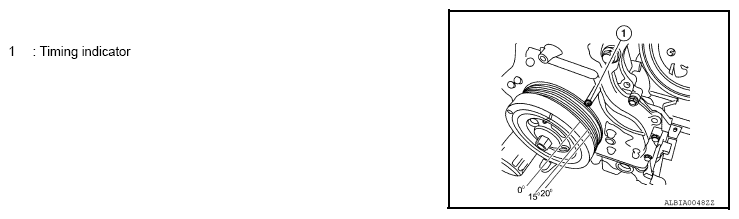

Fig 2: Identifying Timing Indicator

Courtesy of NISSAN NORTH AMERICA, INC.

INSPECTION END
