Connector Terminal Identification

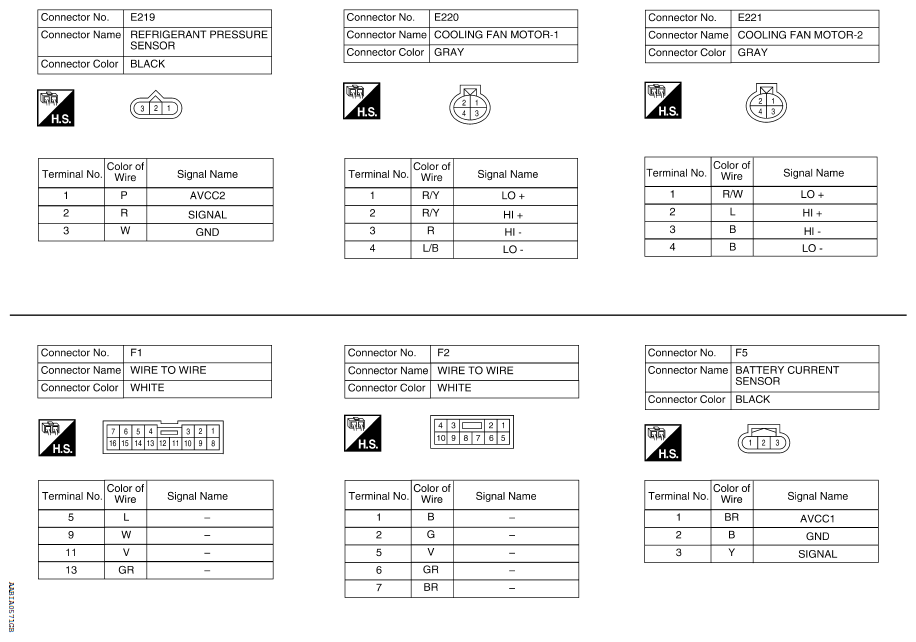

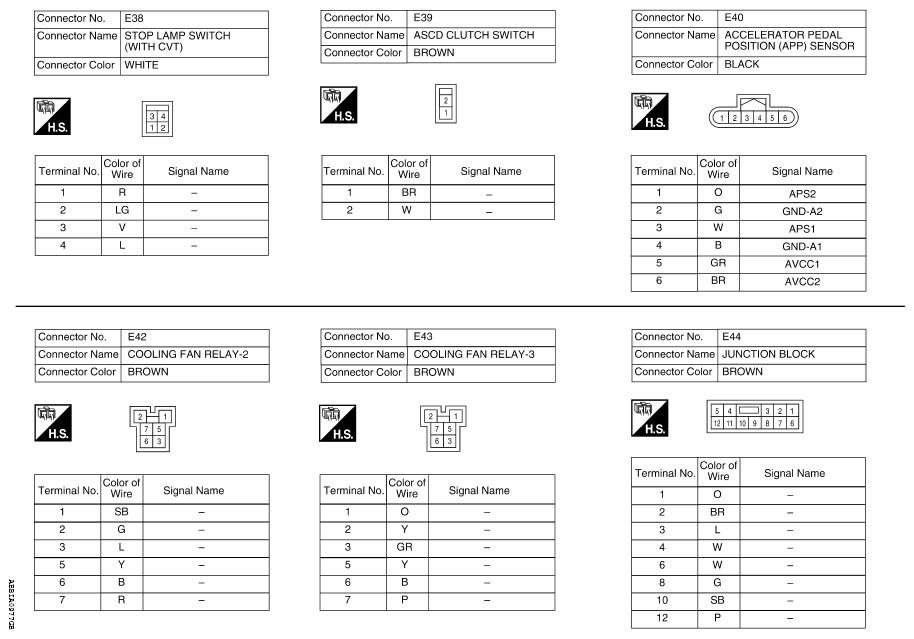

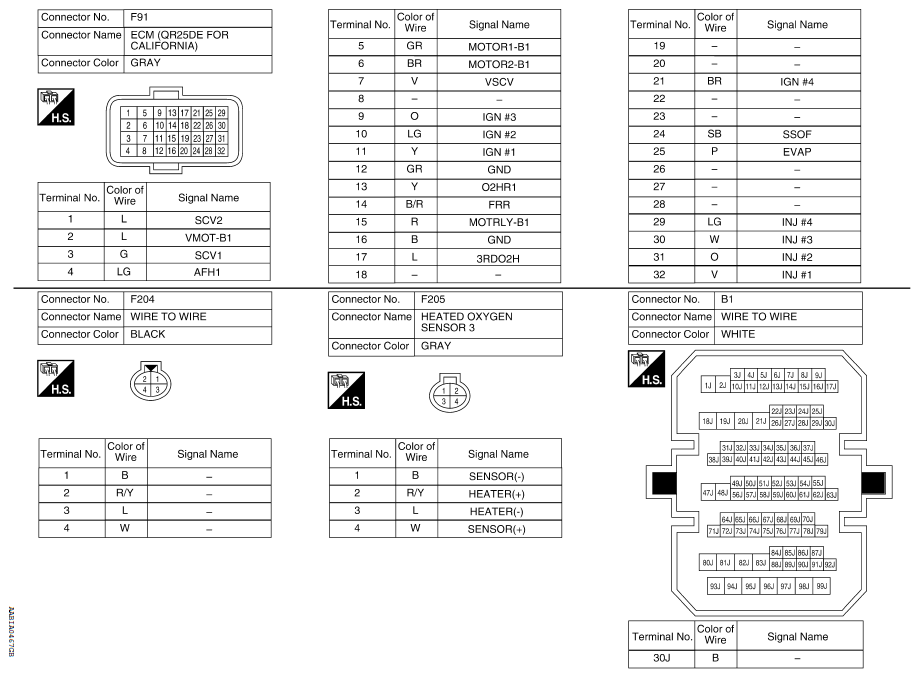

Fig 1: Identifying Engine Control System Connectors - QR25DE For California (1 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

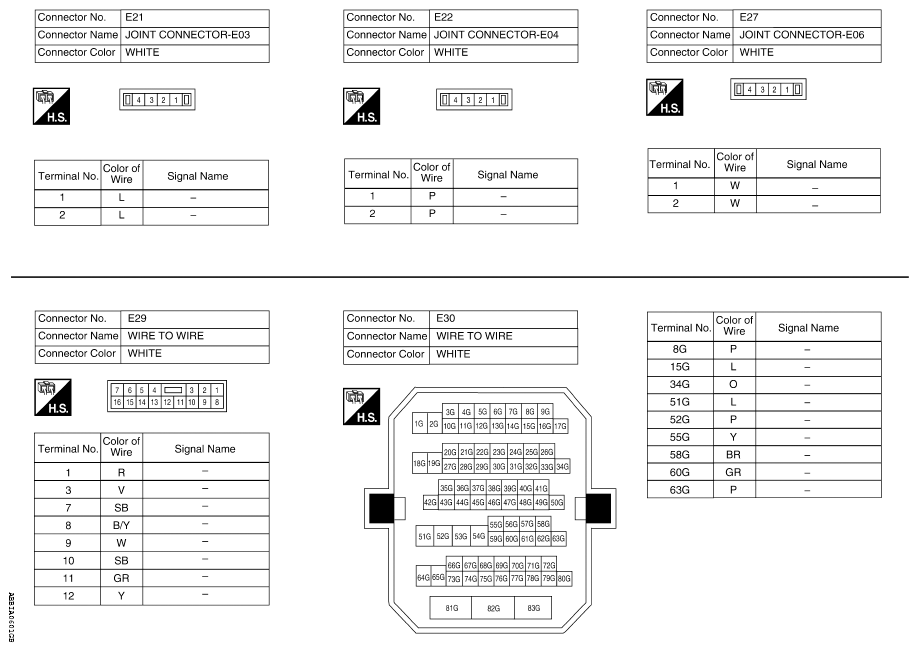

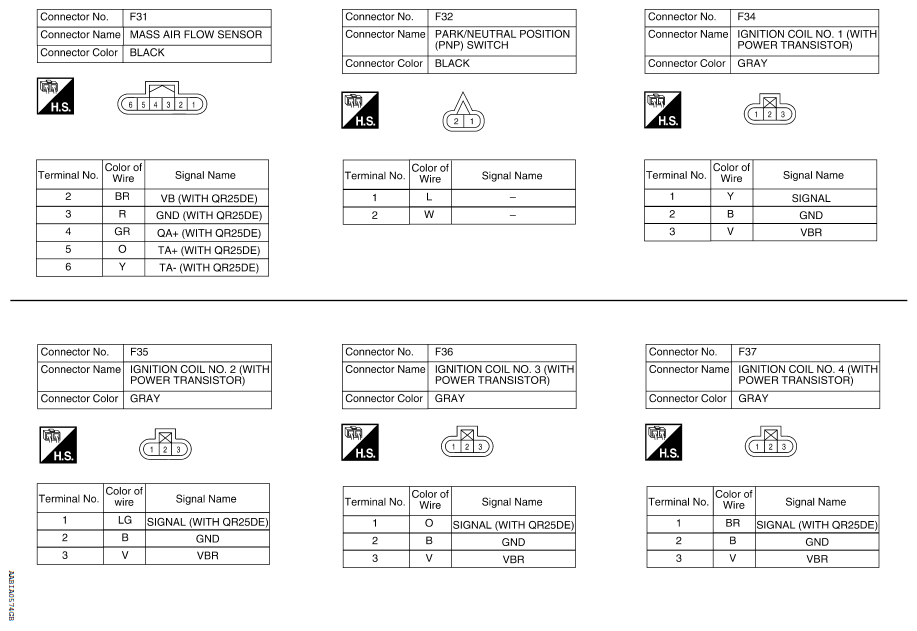

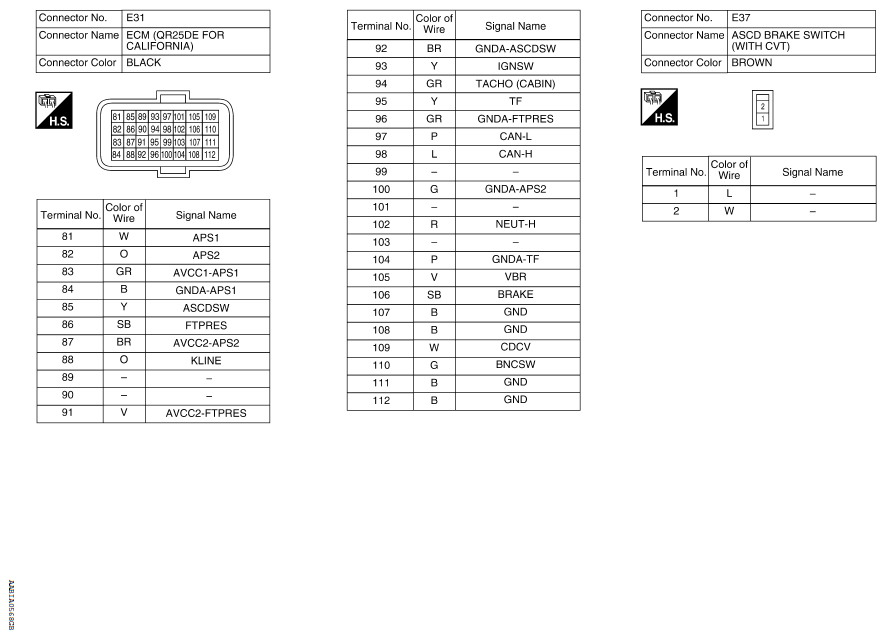

Fig 2: Identifying Engine Control System Connectors - QR25DE For California (2 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

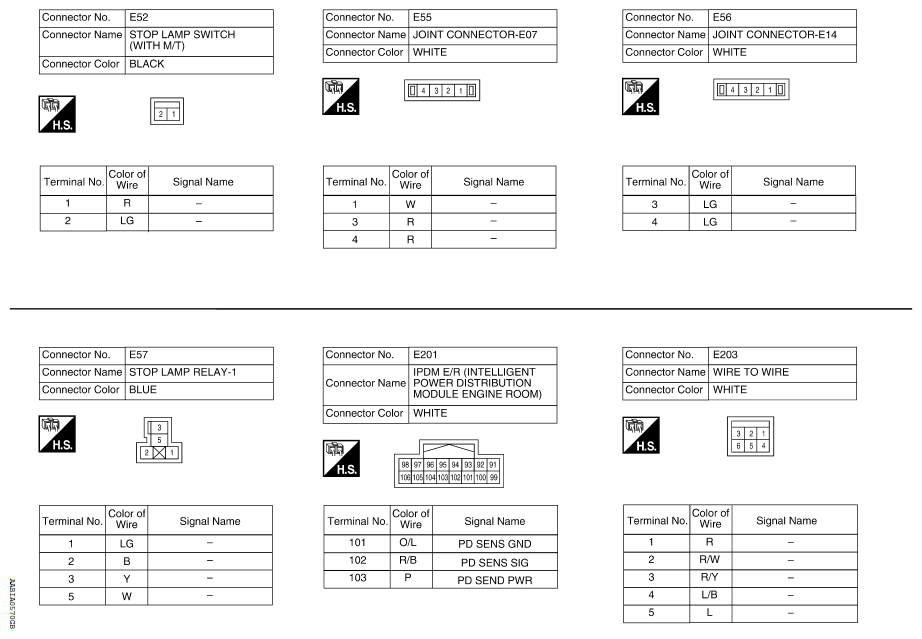

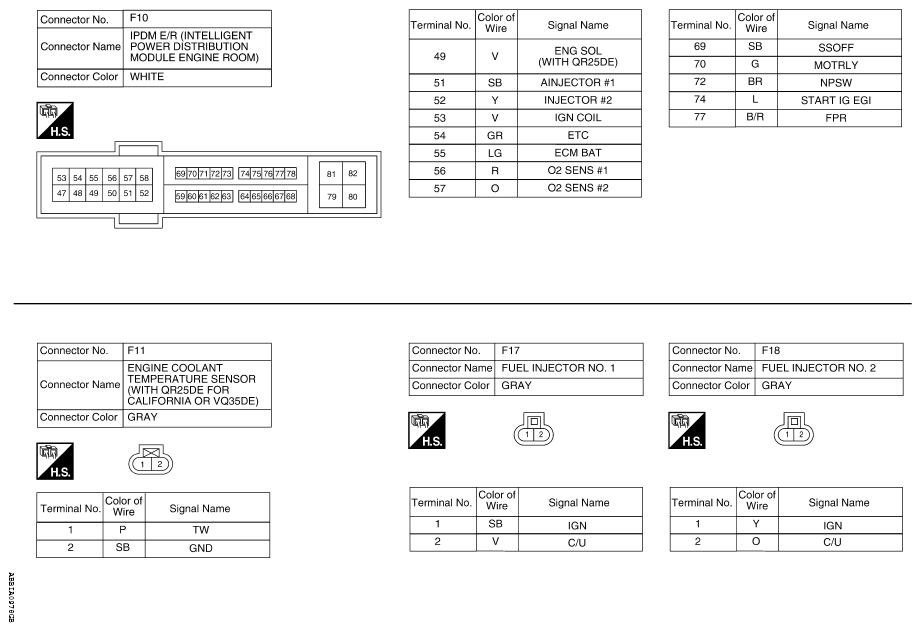

Fig 3: Identifying Engine Control System Connectors - QR25DE For California (3 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

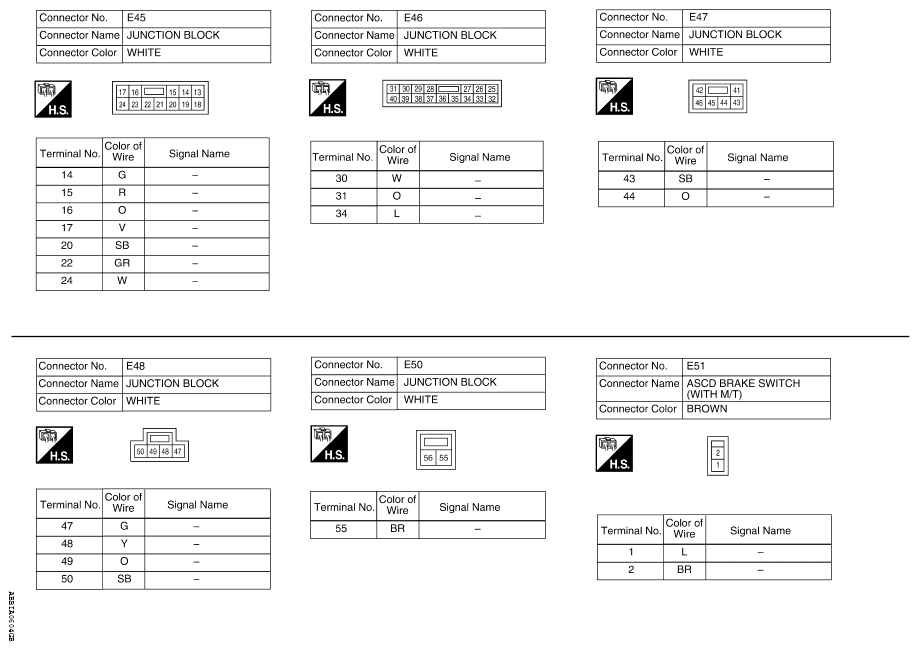

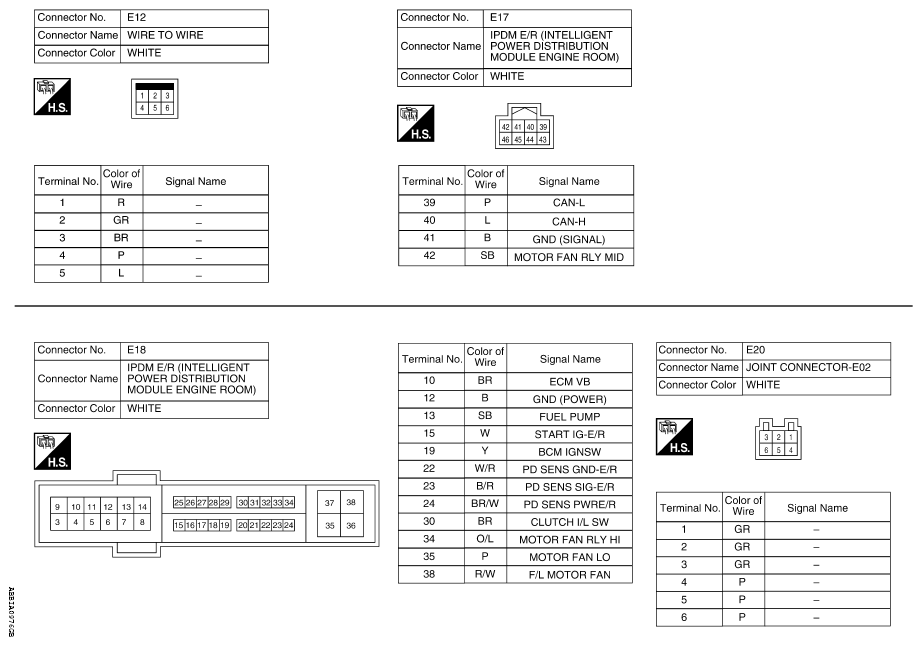

Fig 4: Identifying Engine Control System Connectors - QR25DE For California (4 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

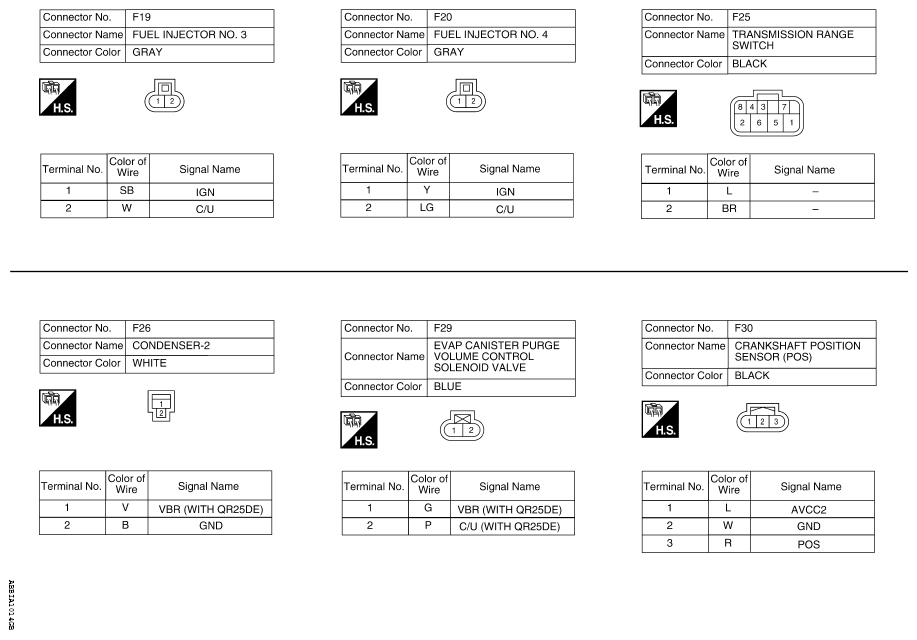

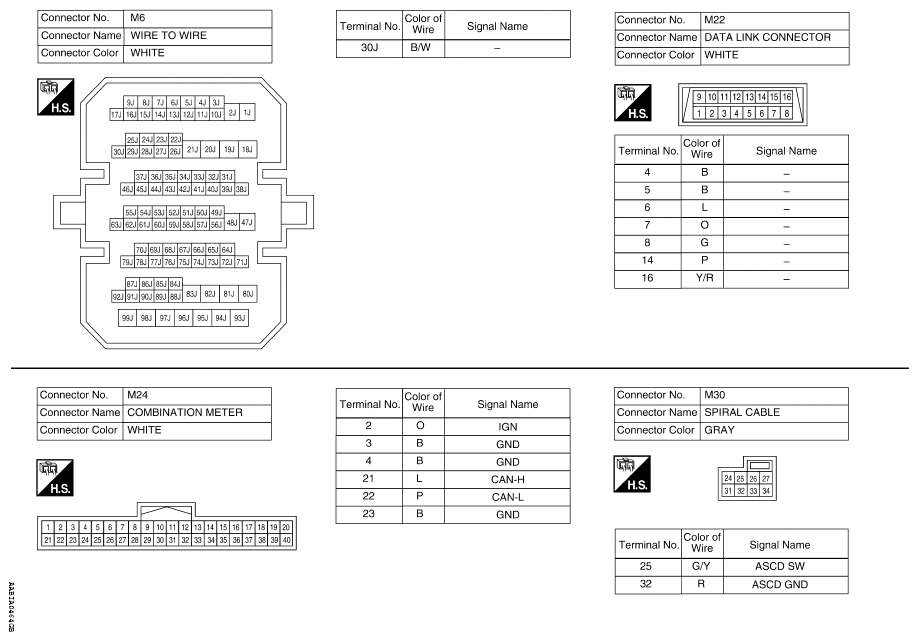

Fig 5: Identifying Engine Control System Connectors - QR25DE For California (5 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

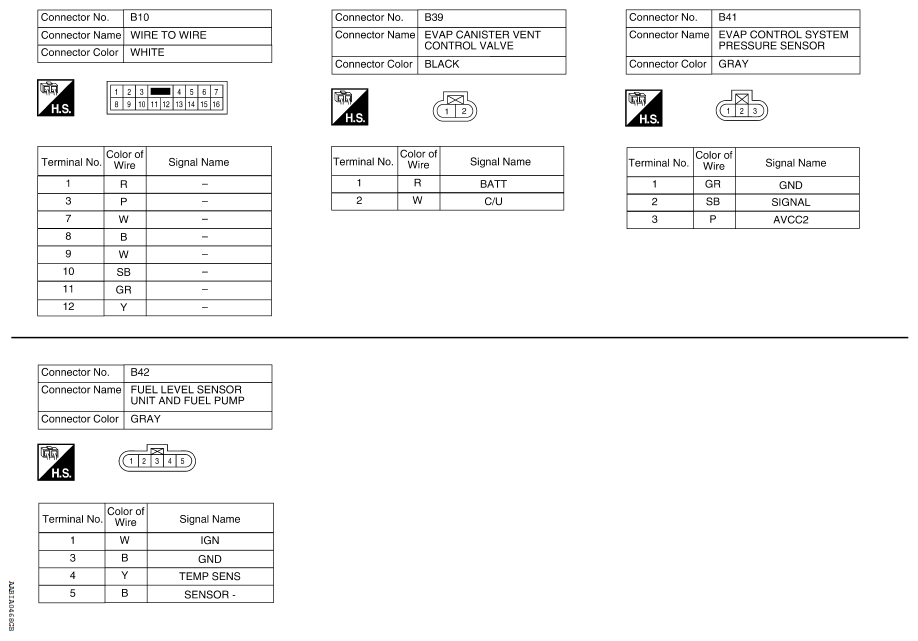

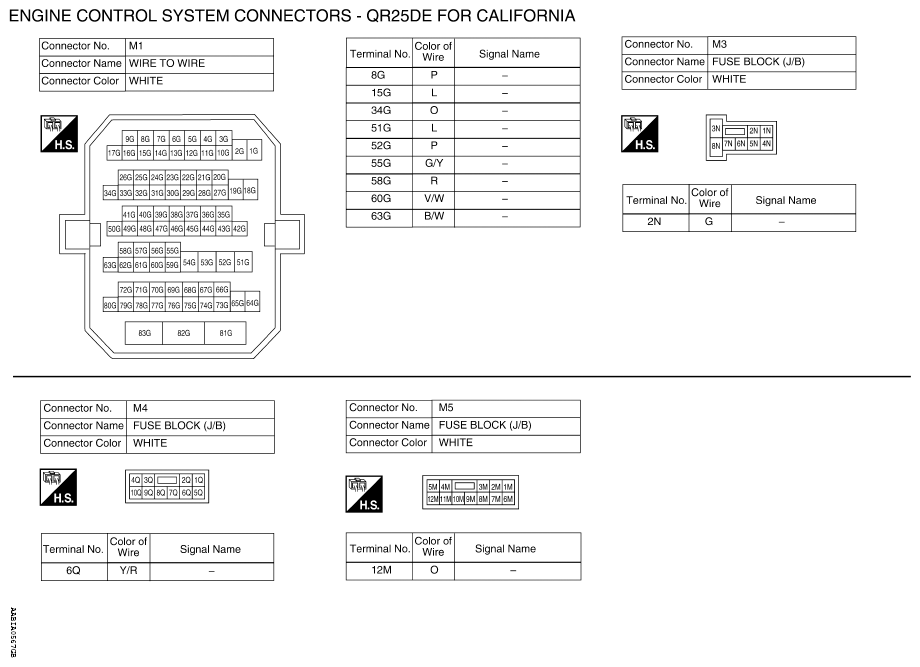

Fig 6: Identifying Engine Control System Connectors - QR25DE For California (6 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

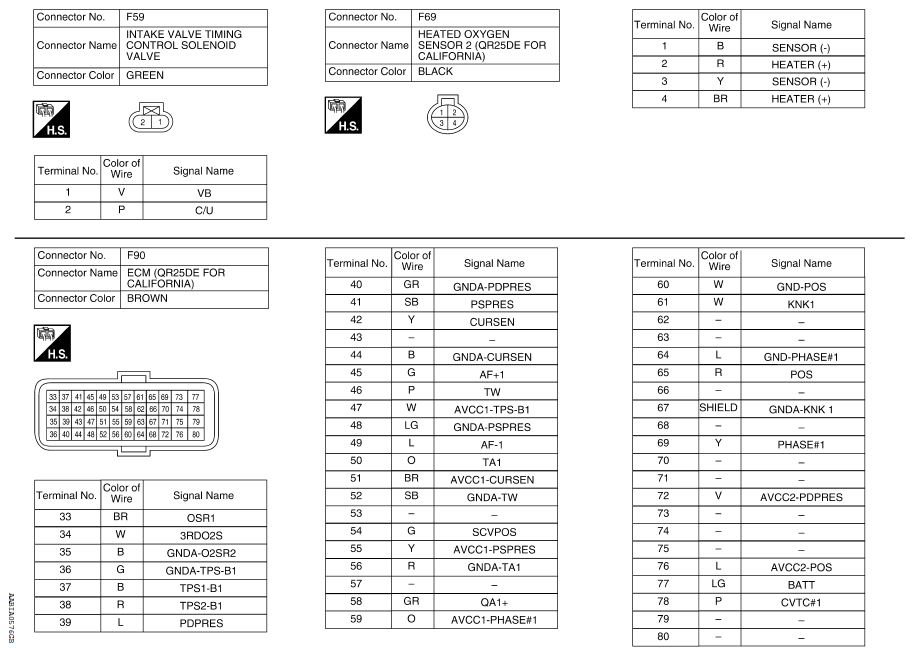

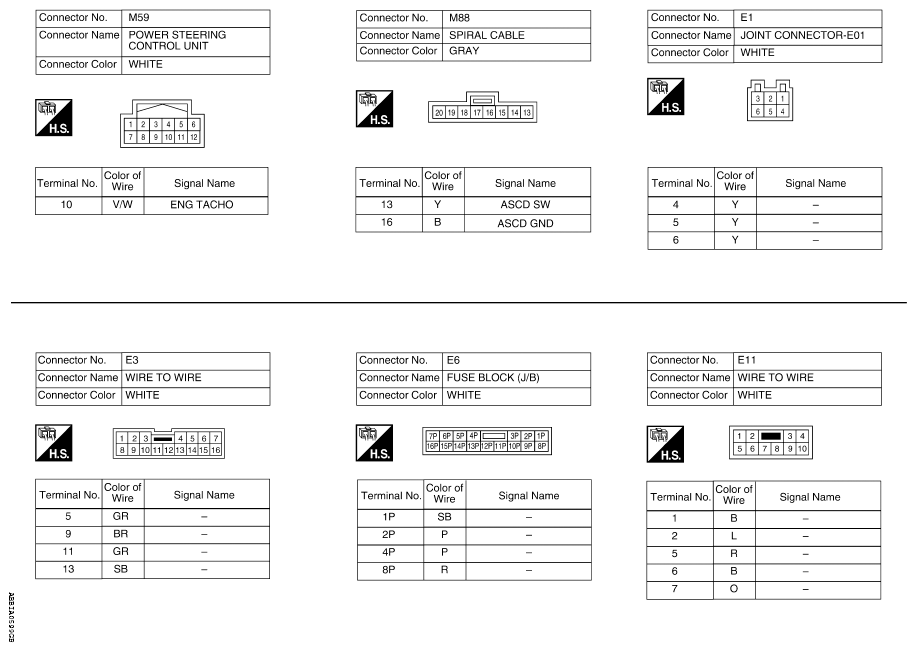

Fig 7: Identifying Engine Control System Connectors - QR25DE For California (7 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

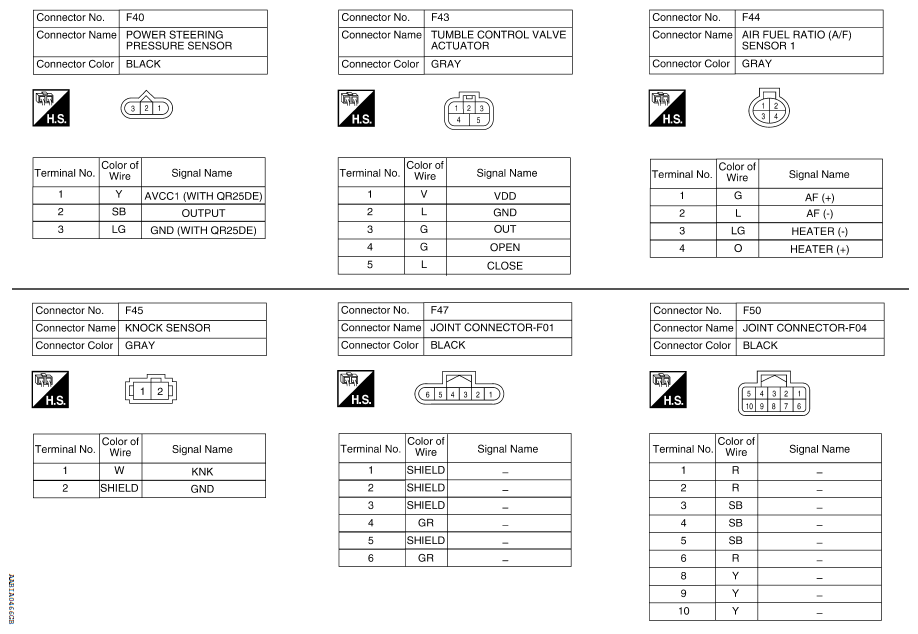

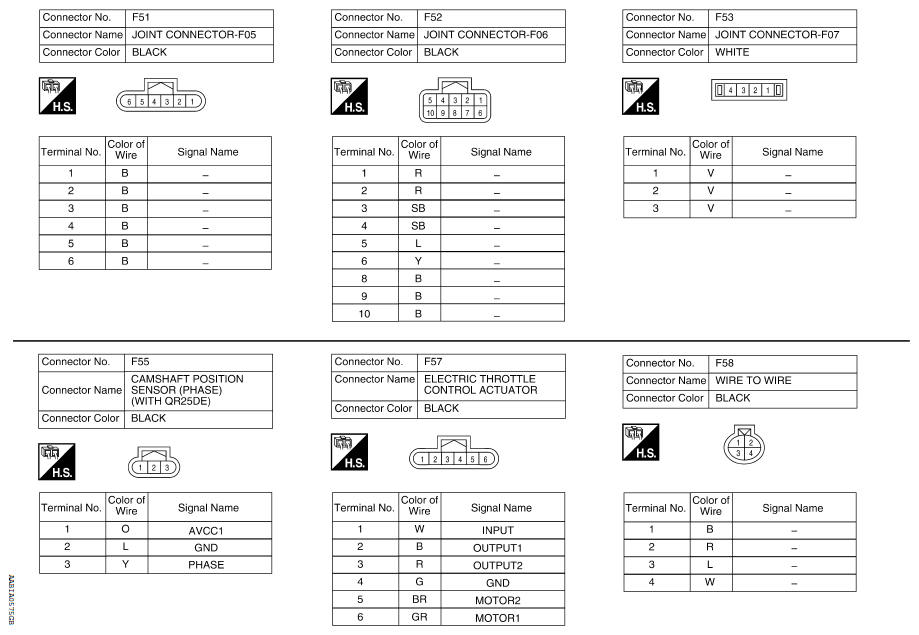

Fig 8: Identifying Engine Control System Connectors - QR25DE For California (8 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Engine Control System Connectors - QR25DE For California (9 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Engine Control System Connectors - QR25DE For California (10 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Engine Control System Connectors - QR25DE For California (11 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Engine Control System Connectors - QR25DE For California (12 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Control System Connectors - QR25DE For California (13 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Engine Control System Connectors - QR25DE For California (14 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Engine Control System Connectors - QR25DE For California (15 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying Engine Control System Connectors - QR25DE For California (16 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 17: Identifying Engine Control System Connectors - QR25DE For California (17 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Engine Control System Connectors - QR25DE For California (18 Of 18)

Courtesy of NISSAN NORTH AMERICA, INC.
