Connector Terminal Identification

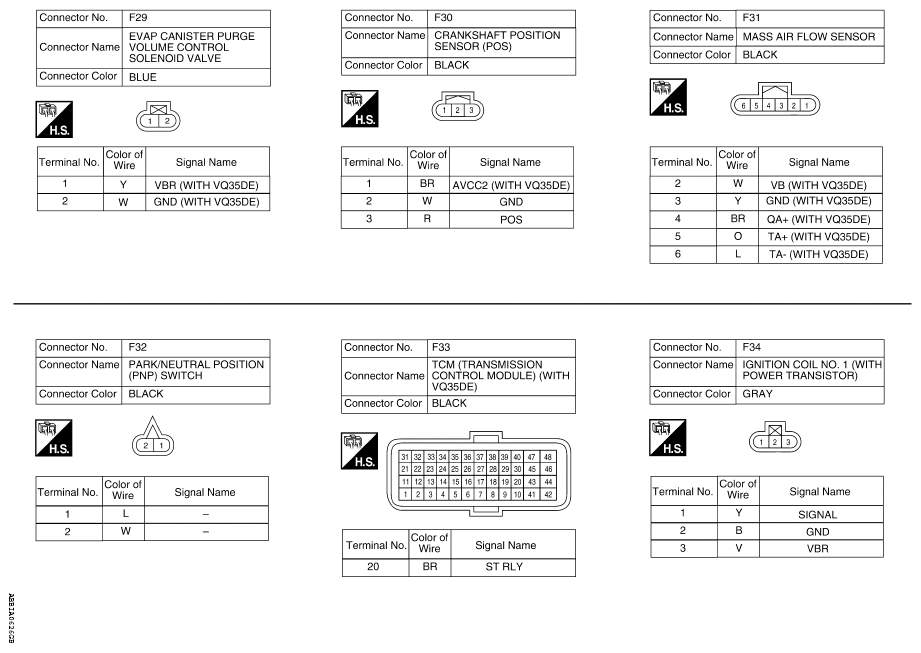

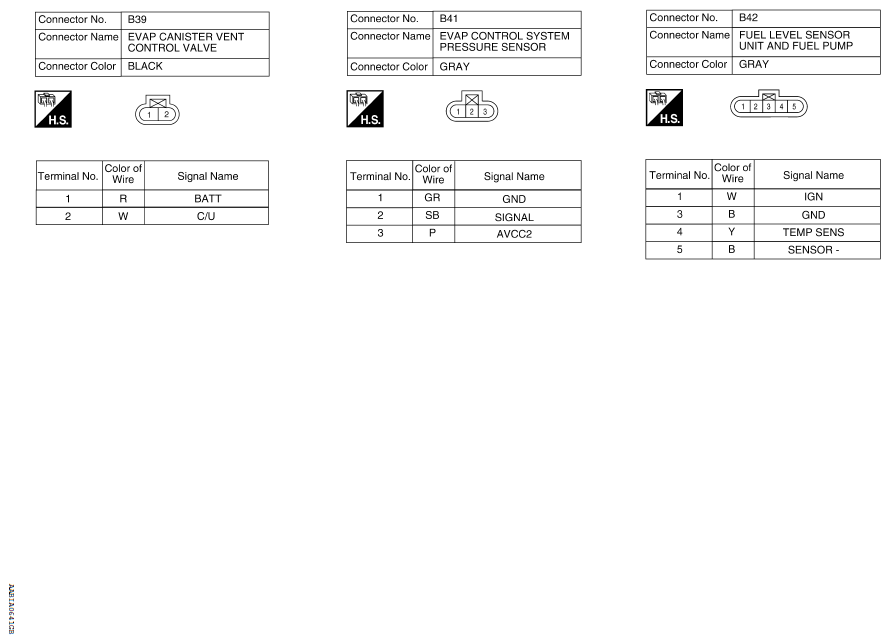

Fig 1: Identifying Engine Control System Connectors (QR25DE For Mexico) (1 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

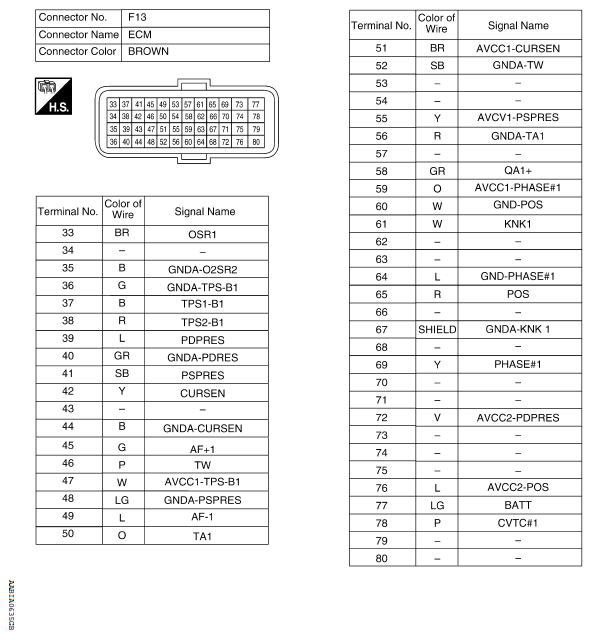

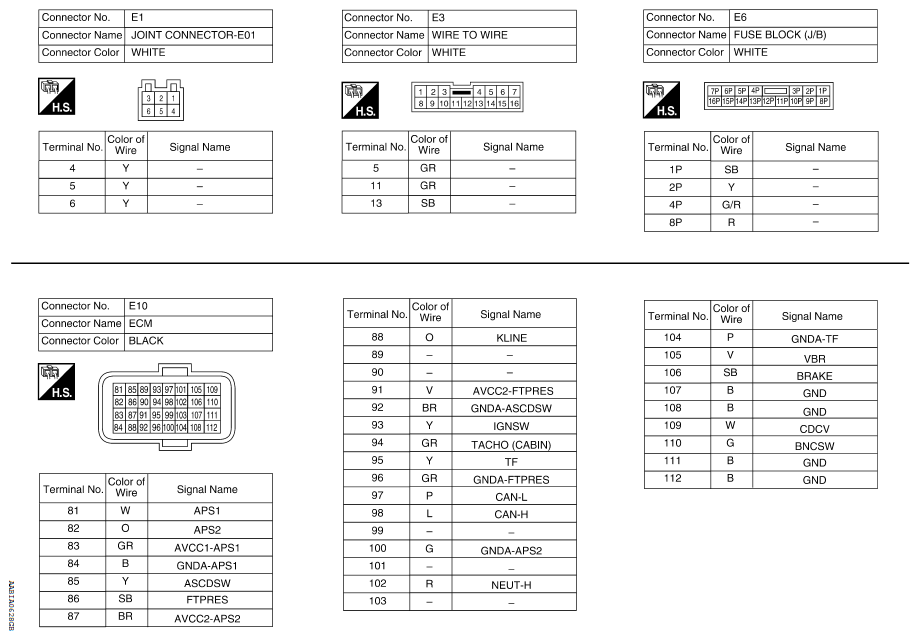

Fig 2: Identifying Engine Control System Connectors (QR25DE For Mexico) (2 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

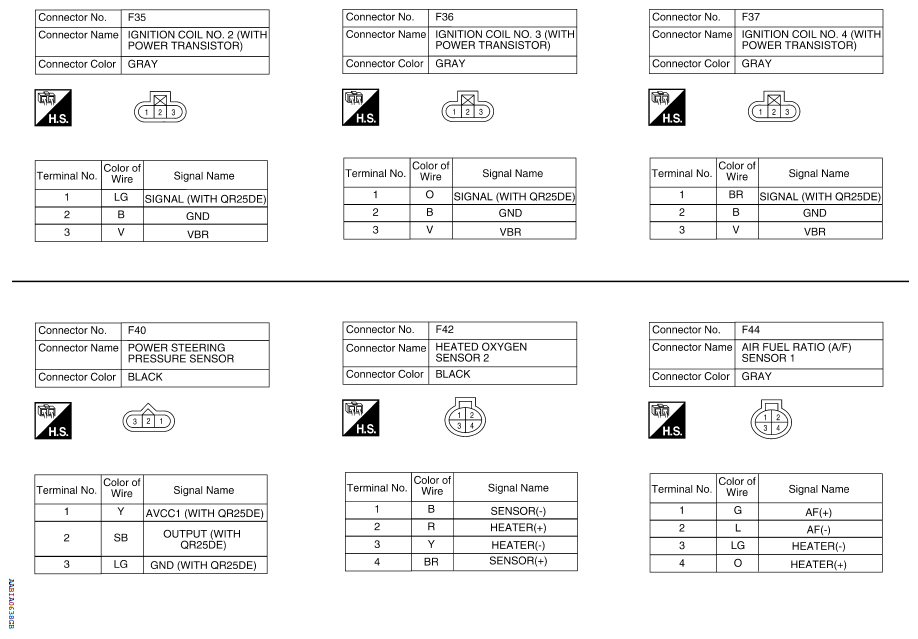

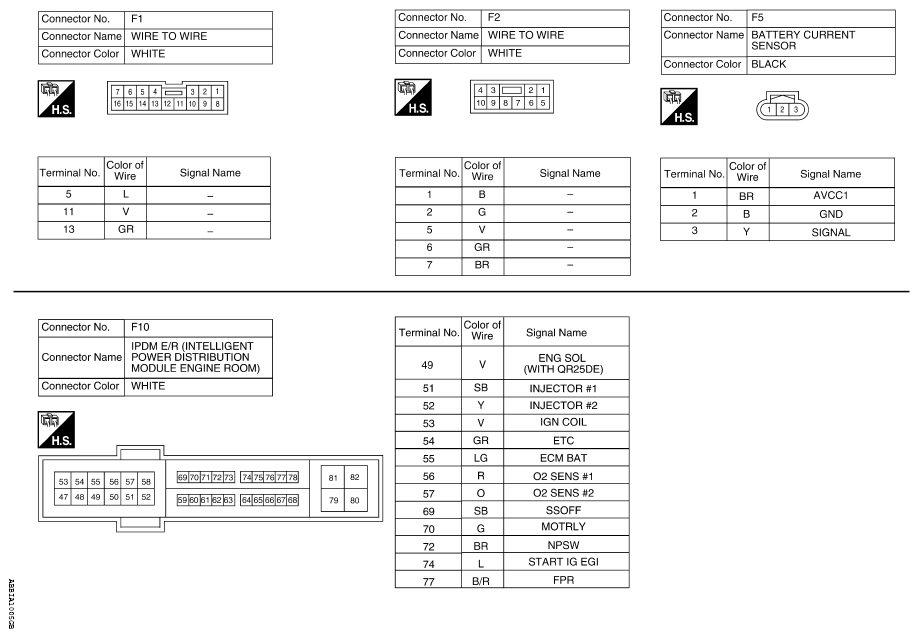

Fig 3: Identifying Engine Control System Connectors (QR25DE For Mexico) (3 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

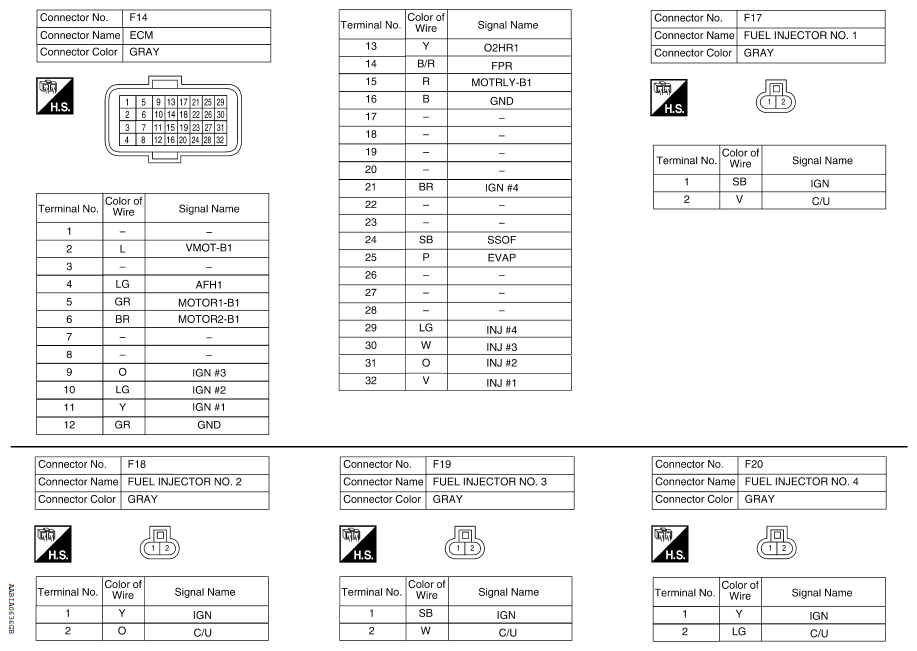

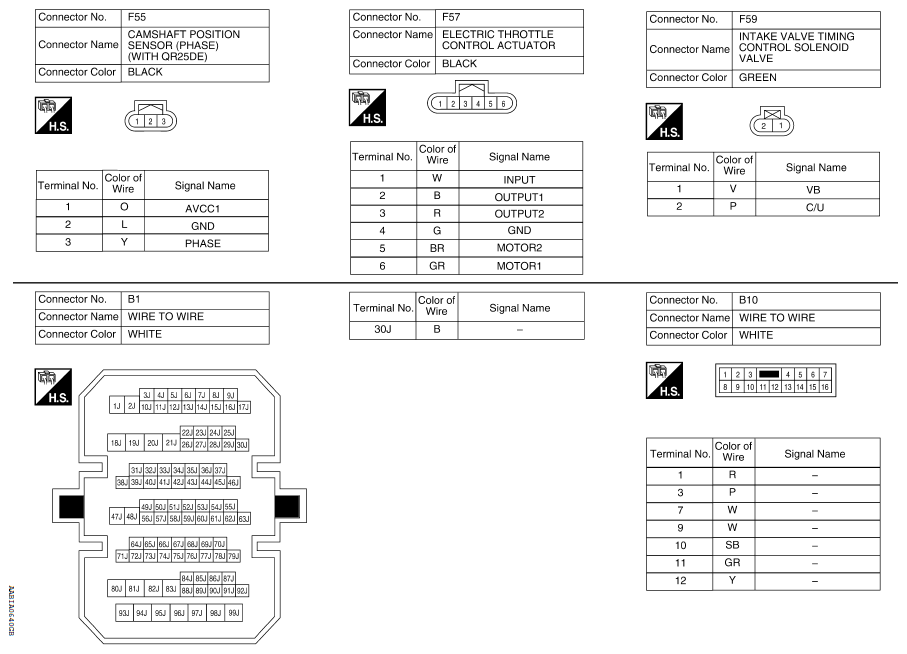

Fig 4: Identifying Engine Control System Connectors (QR25DE For Mexico) (4 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

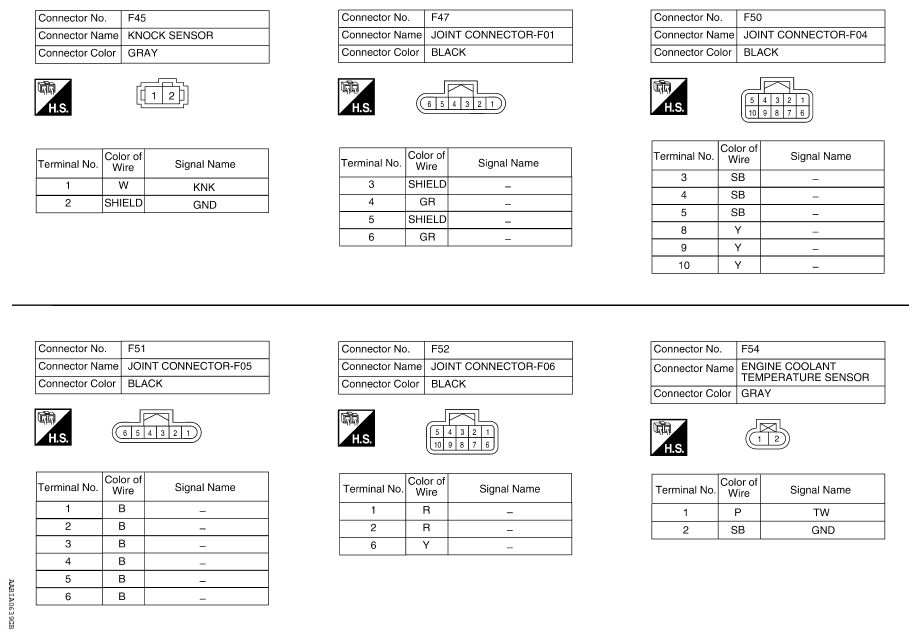

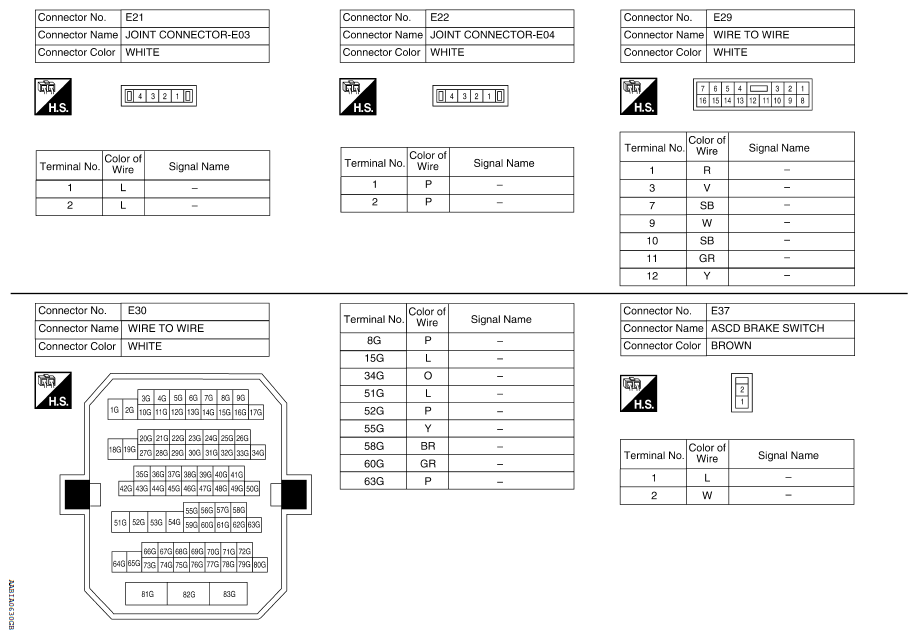

Fig 5: Identifying Engine Control System Connectors (QR25DE For Mexico) (5 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

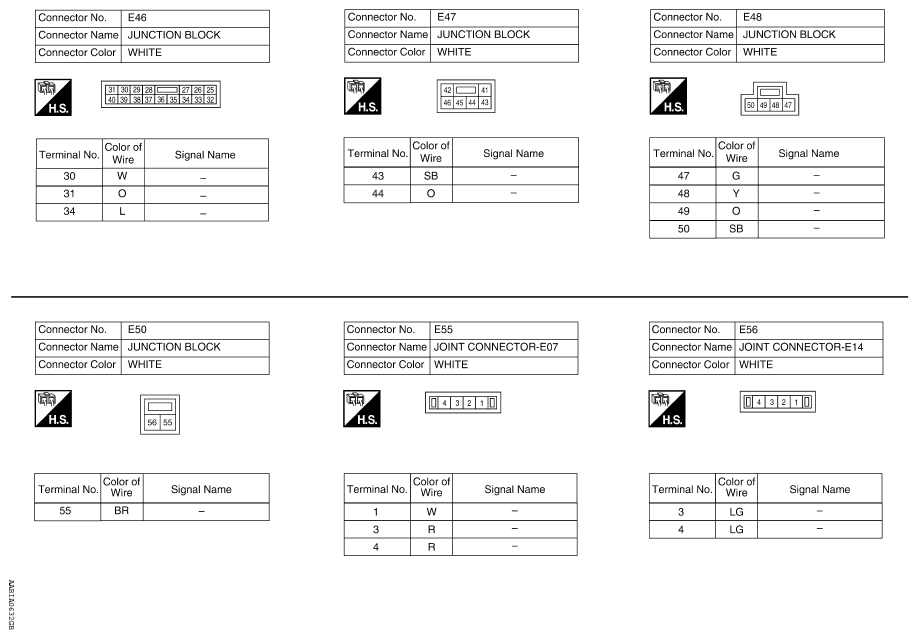

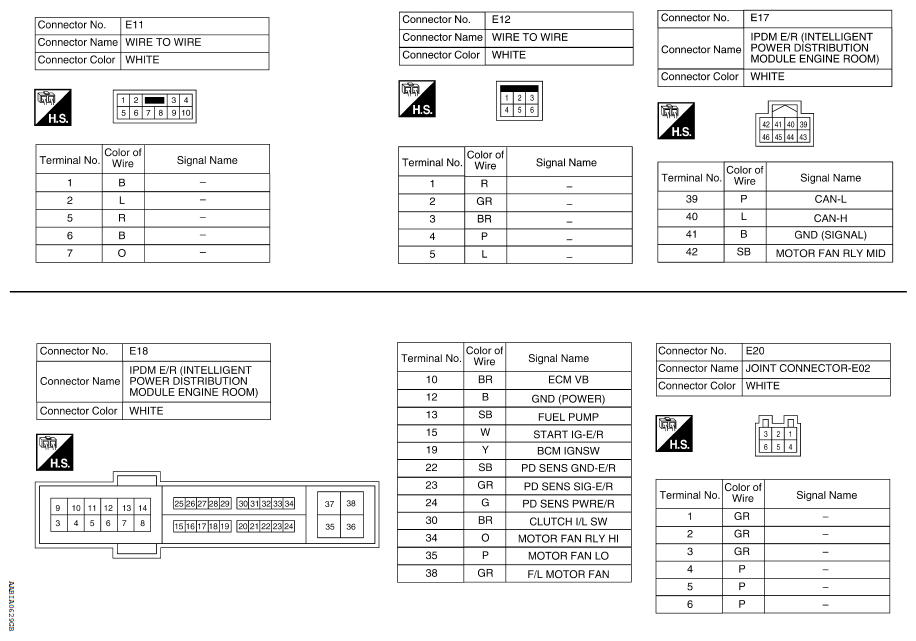

Fig 6: Identifying Engine Control System Connectors (QR25DE For Mexico) (6 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

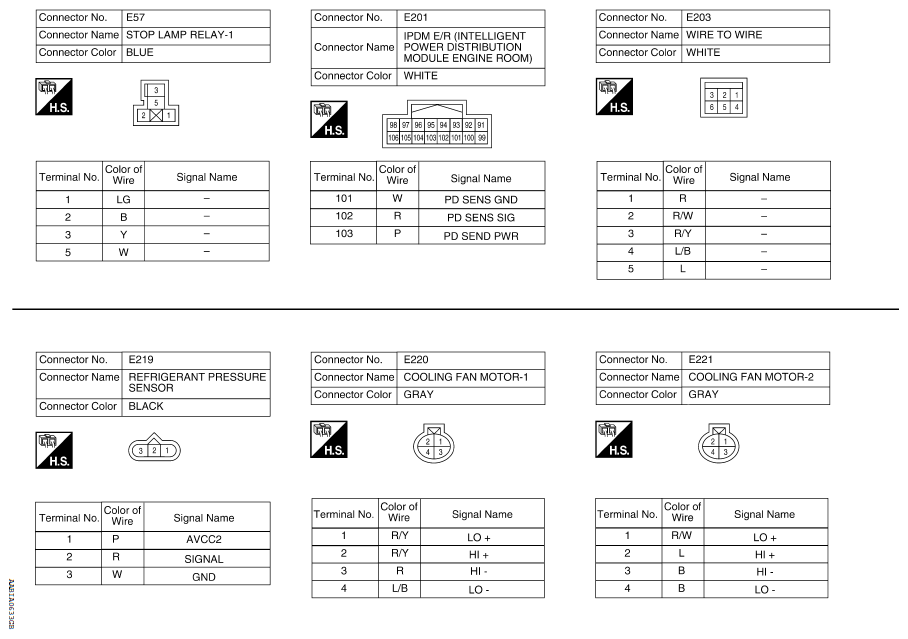

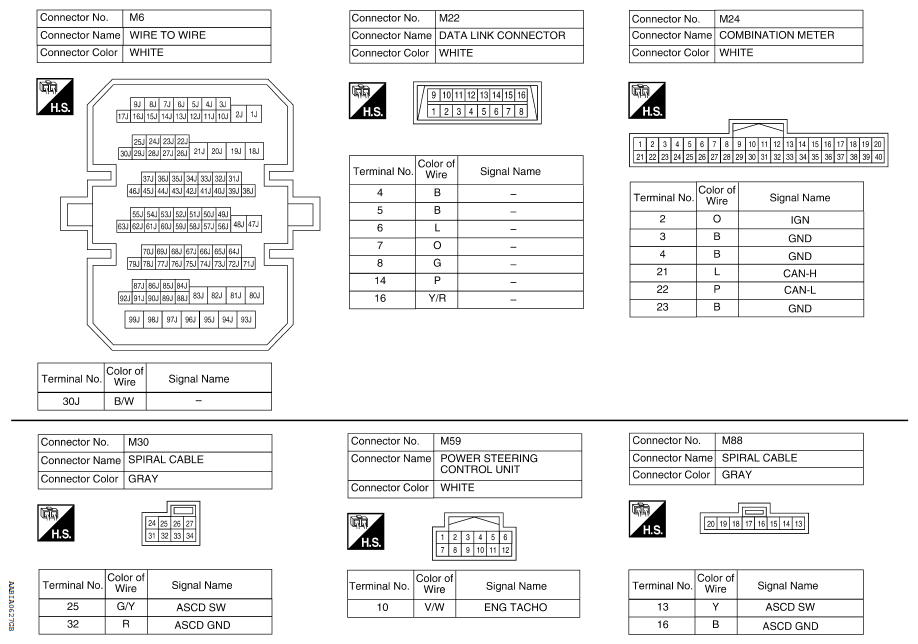

Fig 7: Identifying Engine Control System Connectors (QR25DE For Mexico) (7 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

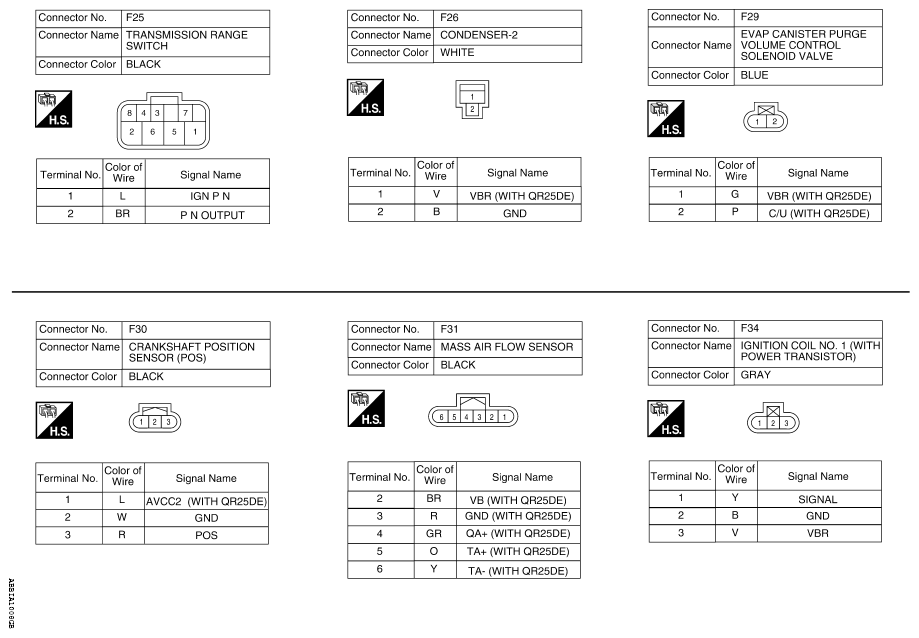

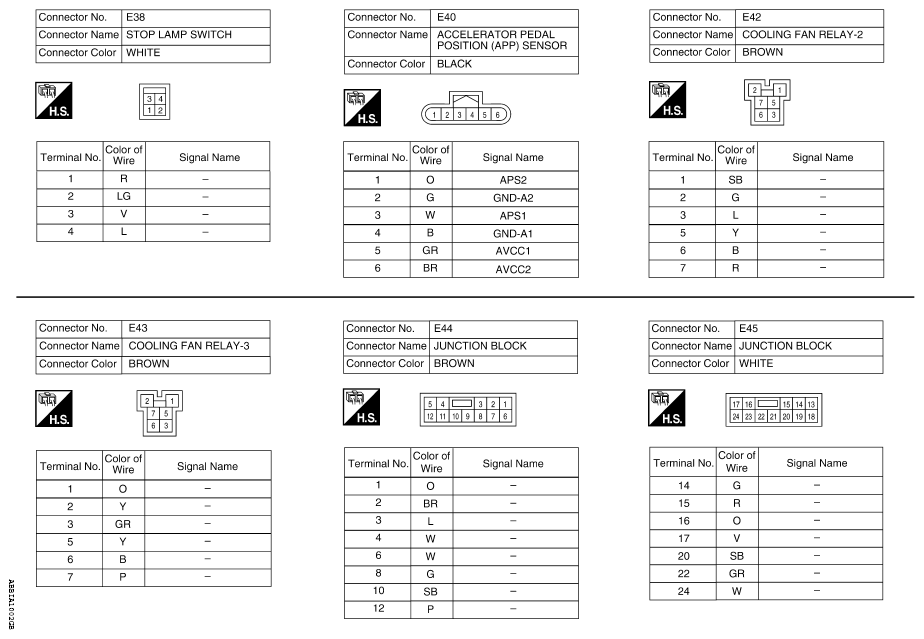

Fig 8: Identifying Engine Control System Connectors (QR25DE For Mexico) (8 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Engine Control System Connectors (QR25DE For Mexico) (9 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Engine Control System Connectors (QR25DE For Mexico) (10 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Engine Control System Connectors (QR25DE For Mexico) (11 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Engine Control System Connectors (QR25DE For Mexico) (12 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Engine Control System Connectors (QR25DE For Mexico) (13 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Engine Control System Connectors (QR25DE For Mexico) (14 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Identifying Engine Control System Connectors (QR25DE For Mexico) (15 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Identifying Engine Control System Connectors (QR25DE For Mexico) (16 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.
