System - Basic Engine Control System

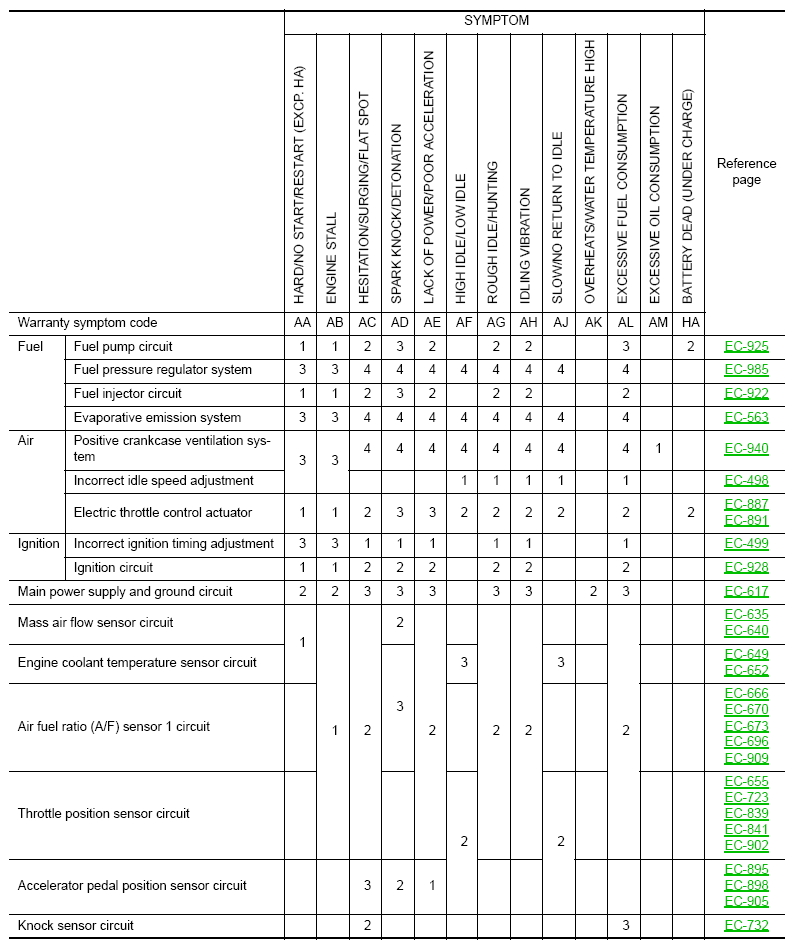

Fig 1: Engine Control System Symptoms - Basic Engine Control System (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

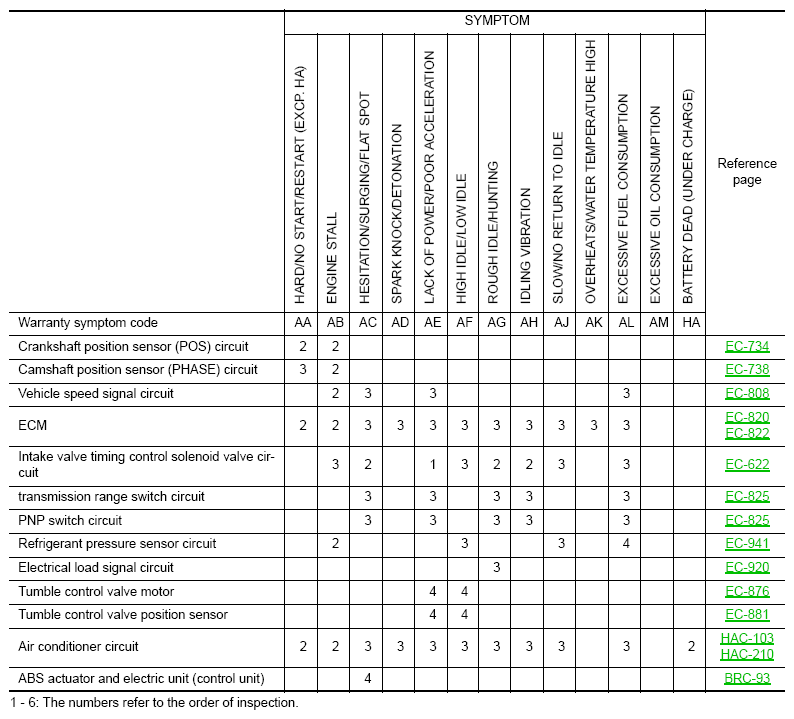

Fig 2: Engine Control System Symptoms - Basic Engine Control System (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1 - 6: The numbers refer to the order of inspection.

(continued on next table)
