Component Function Check

Turn ignition switch to START.

Is any cylinder ignited?

YES >> GO TO 2.

NO >> Go to "Diagnosis Procedure ".

With CONSULT

1. Start engine.
2. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT.
3. Make sure that each circuit produces a momentary engine speed drop.

Without CONSULT

1. Let engine idle.
2. Listen to each fuel injector operating sound.

Clicking noise should be heard.

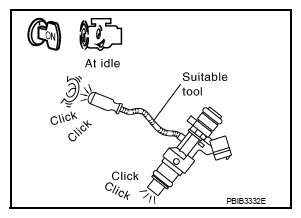

Fig 1: Checking Fuel Injector

Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES >> INSPECTION END

NO >> Go to "Diagnosis Procedure ".
