Component Function Check

1. Turn ignition switch ON.
2. Pinch fuel feed hose (1) with two fingers.

Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

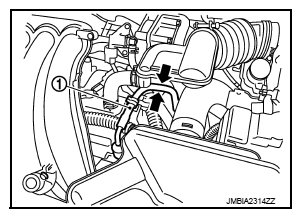

Fig 1: Locating Fuel Feed Hose

Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES >> INSPECTION END

NO >> "Diagnosis Procedure ".
