System - Basic Engine Control System

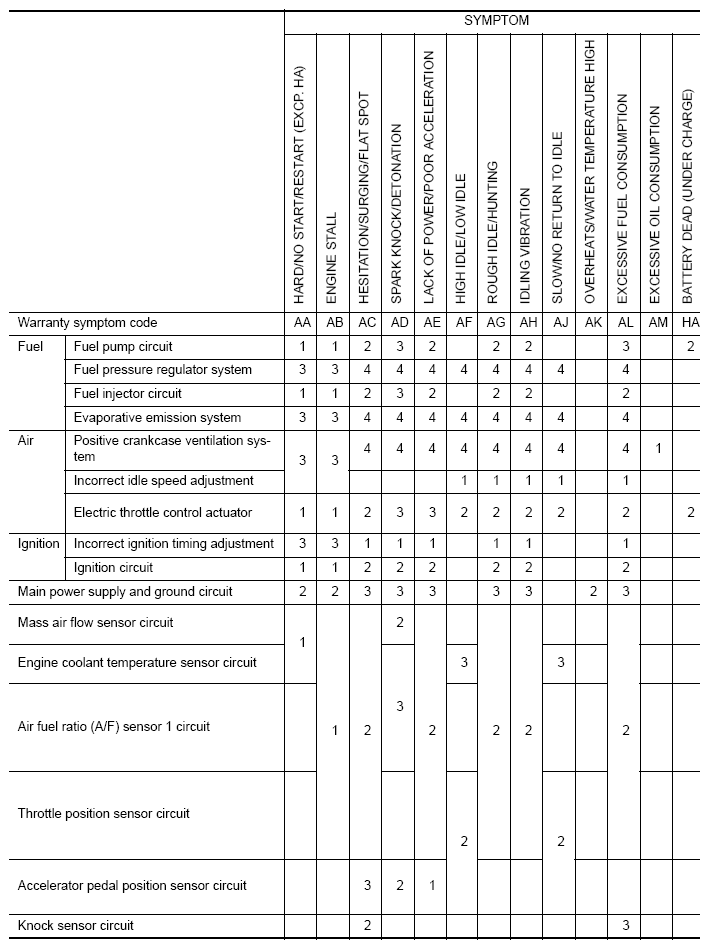

Fig 1: Identifying Basic Engine Control System Symptoms Chart (1 Of 2)
G08128655Courtesy of NISSAN NORTH AMERICA, INC.

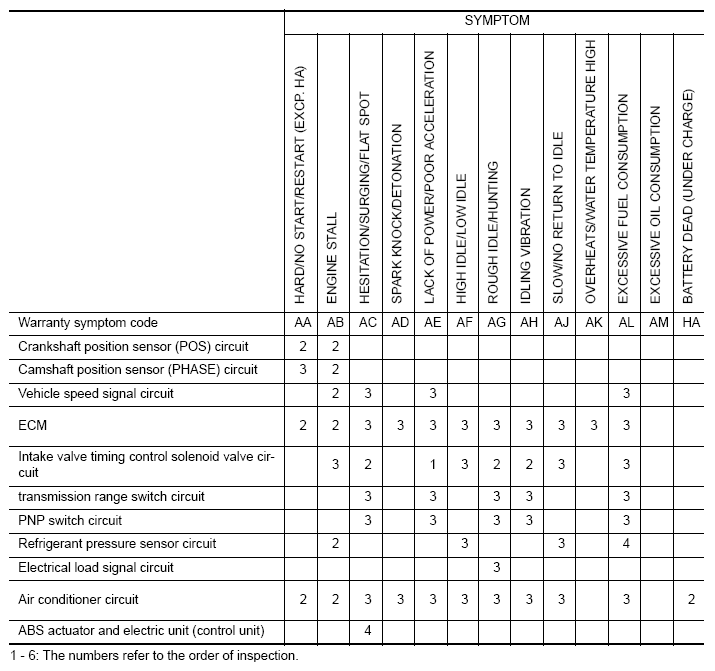

Fig 2: Identifying Basic Engine Control System Symptoms Chart (2 Of 2)
G08128656Courtesy of NISSAN NORTH AMERICA, INC.
