Overall Sequence

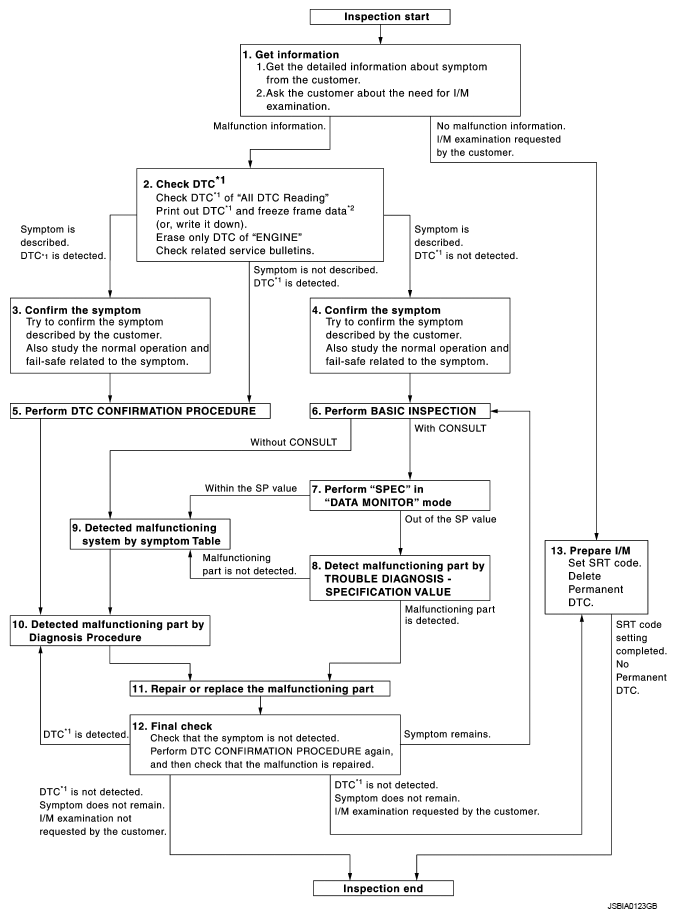

Fig 1: Diagnosis And Repair Workflow Chart
G08128686Courtesy of NISSAN NORTH AMERICA, INC.

*1: Include 1st trip DTC.

*2: Include 1st trip freeze frame data.
