Component Parts Location

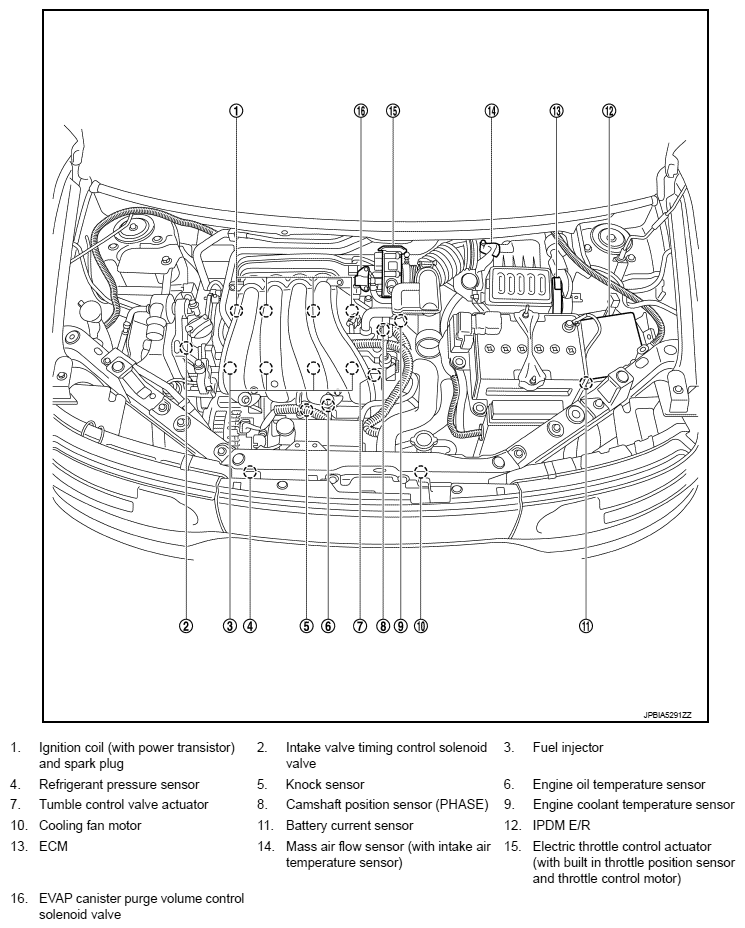

Fig 1: Identifying Cooling Fan Control Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

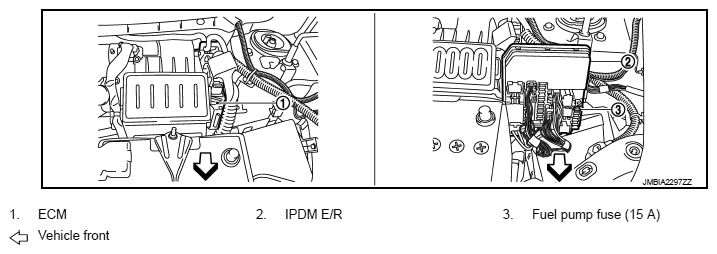

Fig 2: Identifying ECM, IPDM E/R And Fuel Pump Fuse

Courtesy of NISSAN NORTH AMERICA, INC.

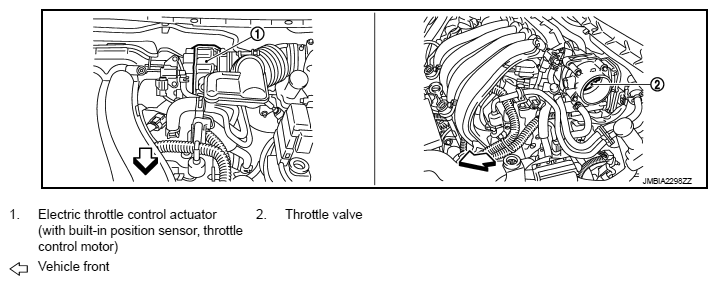

Fig 3: Identifying Electric Throttle Control Actuator And Throttle Valve

Courtesy of NISSAN NORTH AMERICA, INC.

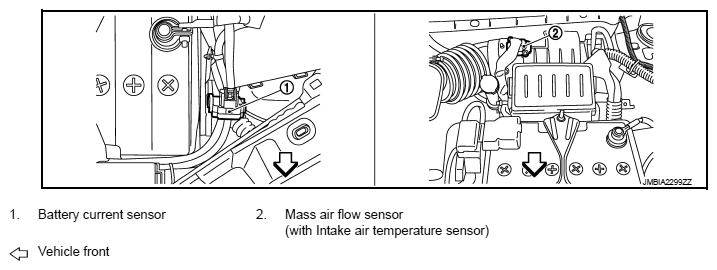

Fig 4: Identifying Battery Current And Mass Air Flow Sensors

Courtesy of NISSAN NORTH AMERICA, INC.

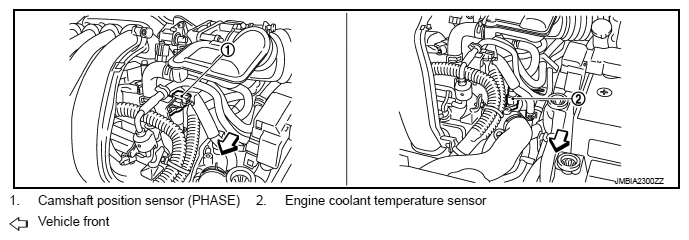

Fig 5: Identifying Camshaft Position And Engine Coolant Temperature Sensors

Courtesy of NISSAN NORTH AMERICA, INC.

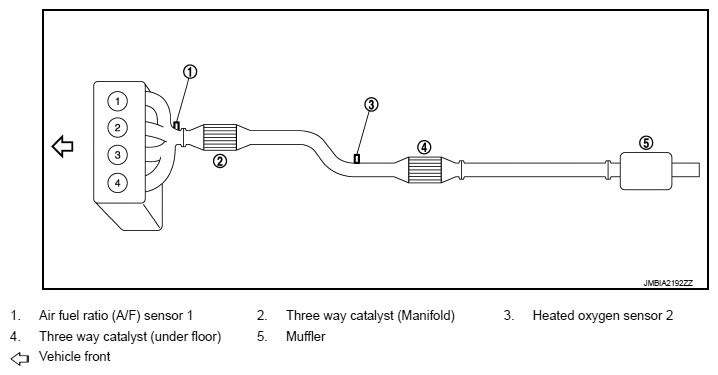

Fig 6: Identifying Exhaust System Components

Courtesy of NISSAN NORTH AMERICA, INC.

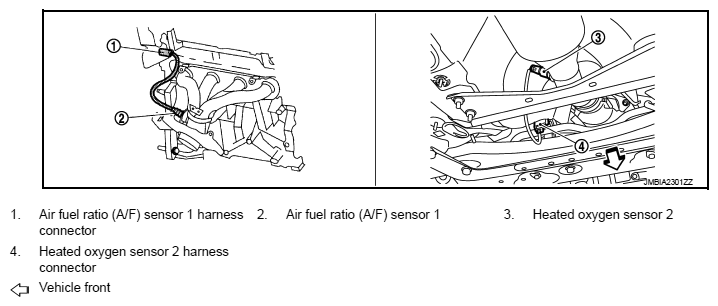

Fig 7: Identifying Air Fuel Ratio And Heated Oxygen Sensors

Courtesy of NISSAN NORTH AMERICA, INC.

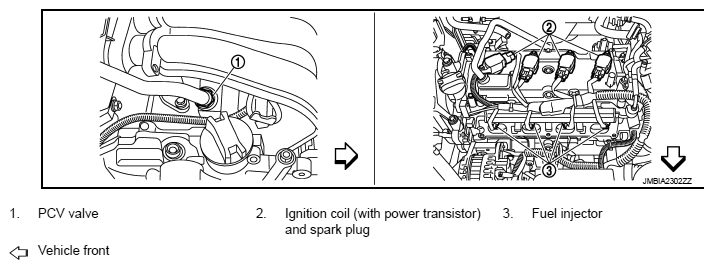

Fig 8: Identifying PCV Valve, Ignition Coil, And Fuel Injector

Courtesy of NISSAN NORTH AMERICA, INC.

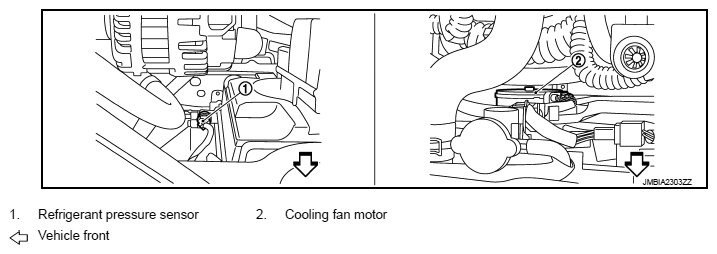

Fig 9: Identifying Refrigerant Pressure Sensor And Cooling Fan Motor

Courtesy of NISSAN NORTH AMERICA, INC.

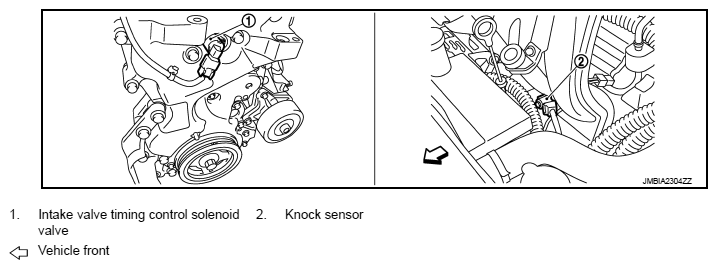

Fig 10: Identifying Intake Valve Timing Control Solenoid Valve And Knock Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

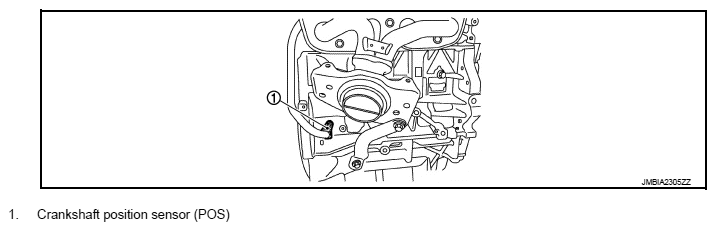

Fig 11: Identifying Crankshaft Position Sensor (POS)

Courtesy of NISSAN NORTH AMERICA, INC.

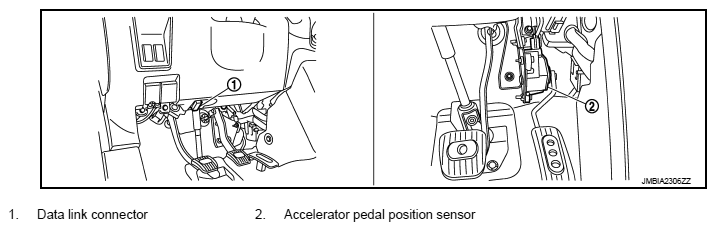

Fig 12: Identifying Data Link Connector And Accelerator Pedal Position Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

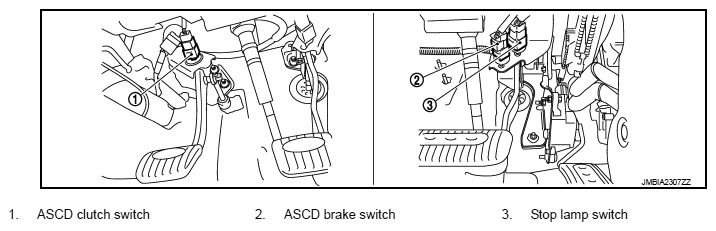

Fig 13: Identifying ASCD Clutch, Brake And Stop Lamp Switches

Courtesy of NISSAN NORTH AMERICA, INC.

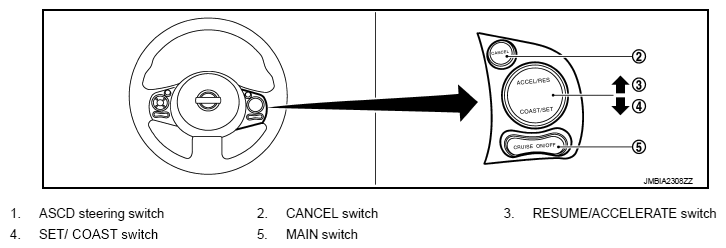

Fig 14: Identifying Steering Wheel Switches

Courtesy of NISSAN NORTH AMERICA, INC.

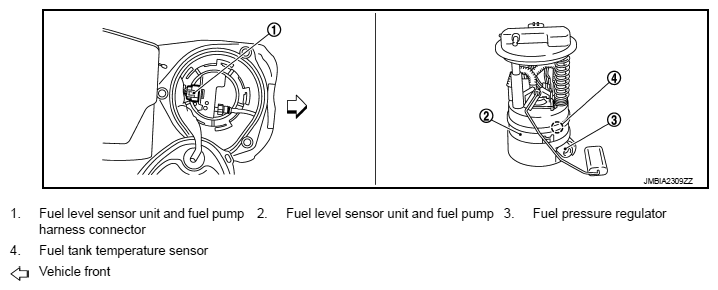

Fig 15: Identifying Fuel Level Sensor Unit

Courtesy of NISSAN NORTH AMERICA, INC.

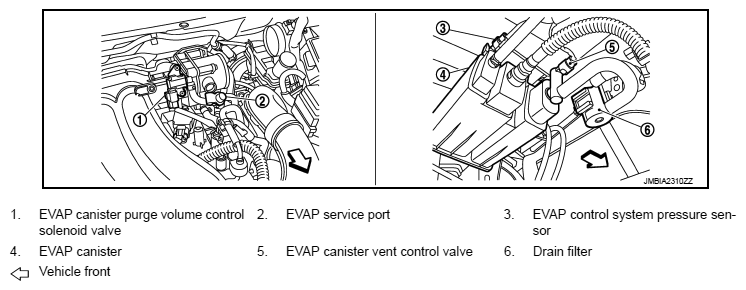

Fig 16: Identifying EVAP Canister

Courtesy of NISSAN NORTH AMERICA, INC.
