Component Parts Location

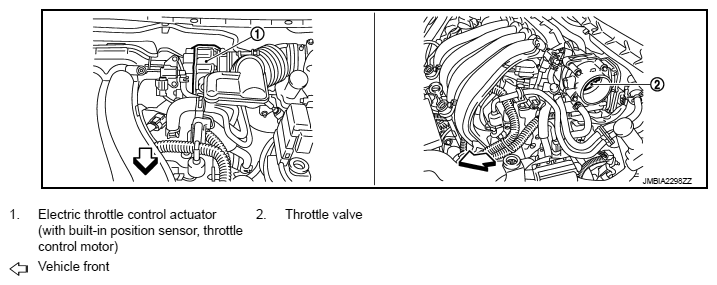

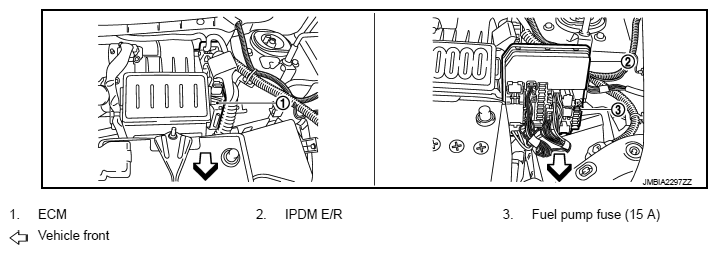

Fig 1: Intake Valve Timing Control Component Parts Location (1 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

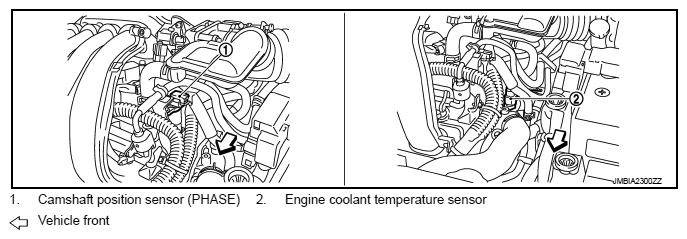

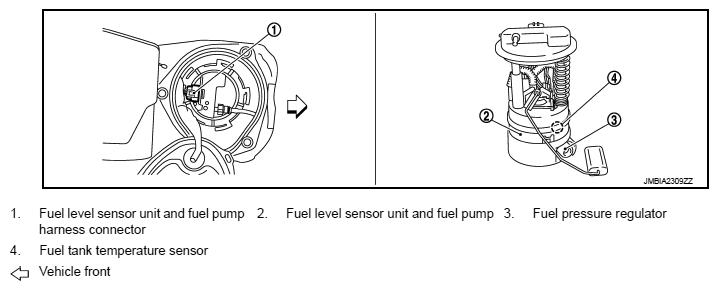

Fig 2: Intake Valve Timing Control Component Parts Location (2 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

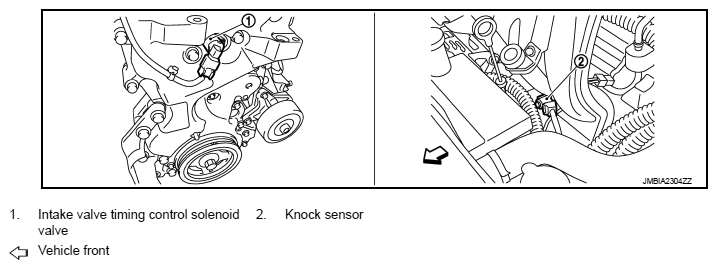

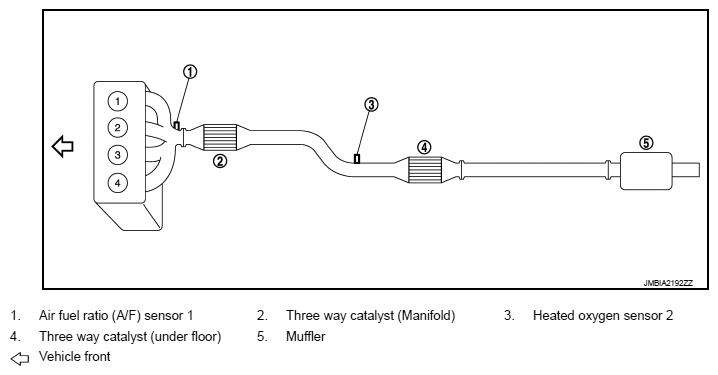

Fig 3: Intake Valve Timing Control Component Parts Location (3 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

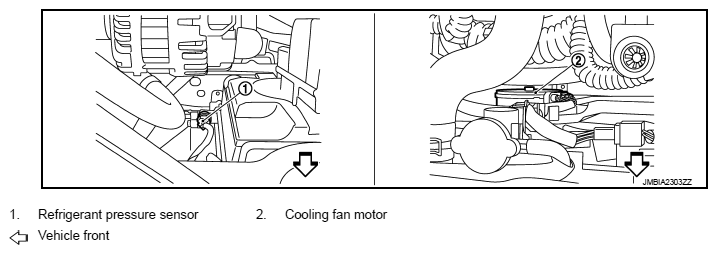

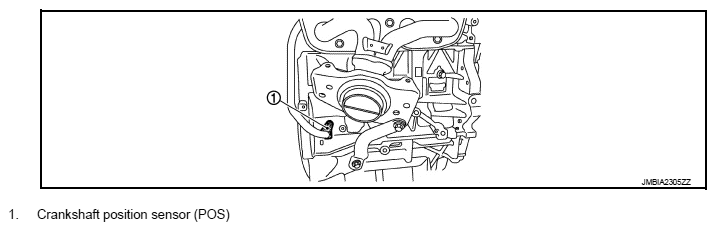

Fig 4: Intake Valve Timing Control Component Parts Location (4 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

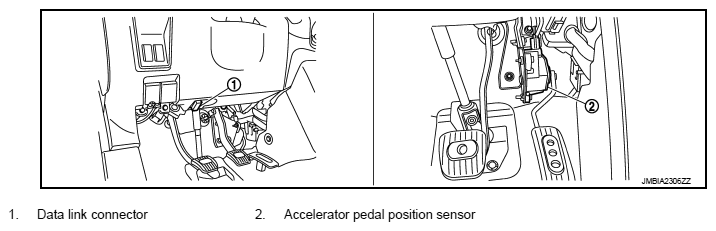

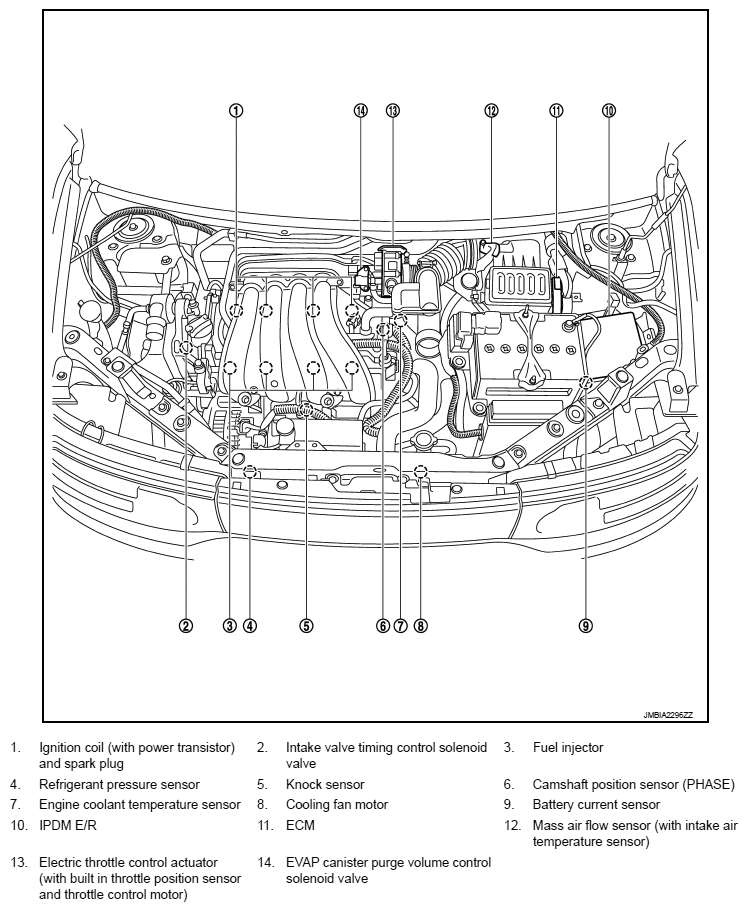

Fig 5: Intake Valve Timing Control Component Parts Location (5 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

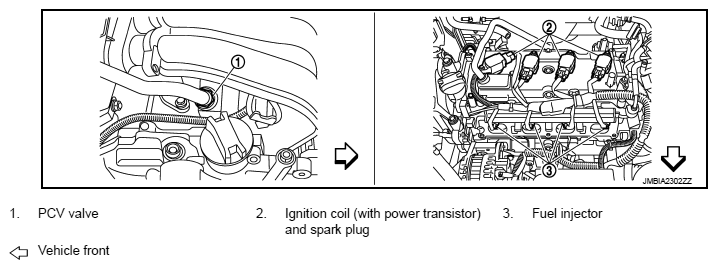

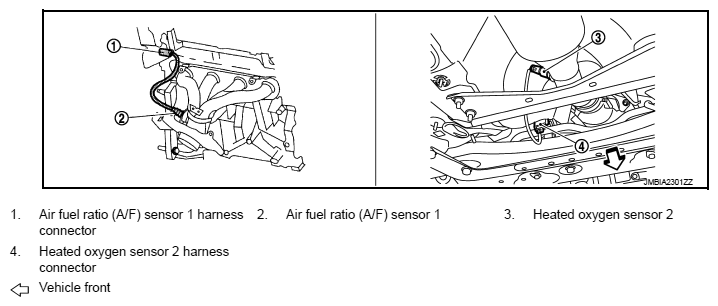

Fig 6: Intake Valve Timing Control Component Parts Location (6 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

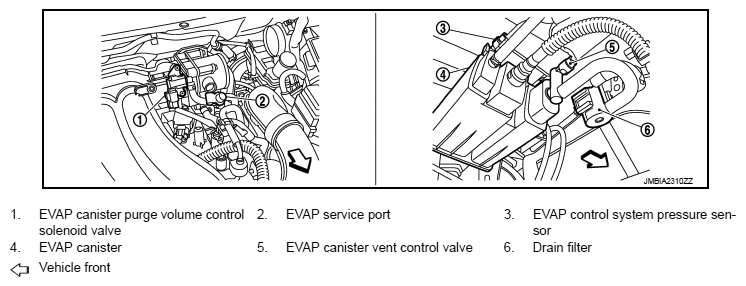

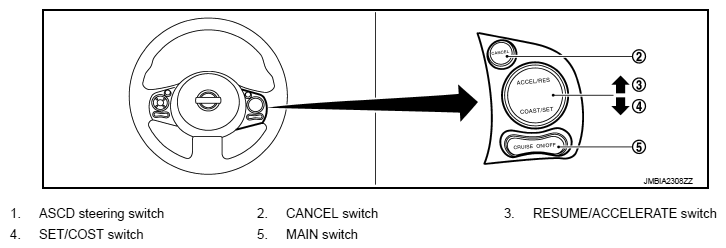

Fig 7: Intake Valve Timing Control Component Parts Location (7 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

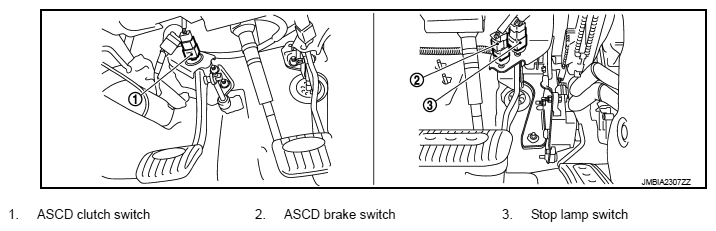

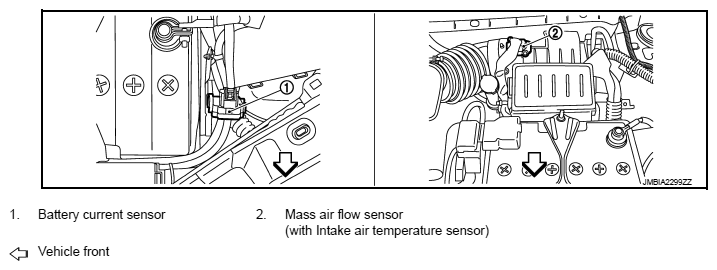

Fig 8: Intake Valve Timing Control Component Parts Location (8 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Intake Valve Timing Control Component Parts Location (9 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Intake Valve Timing Control Component Parts Location (10 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Intake Valve Timing Control Component Parts Location (11 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Intake Valve Timing Control Component Parts Location (12 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Intake Valve Timing Control Component Parts Location (13 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Intake Valve Timing Control Component Parts Location (14 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 15: Intake Valve Timing Control Component Parts Location (15 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 16: Intake Valve Timing Control Component Parts Location (16 Of 16)

Courtesy of NISSAN NORTH AMERICA, INC.
