Power Window System: Schematic

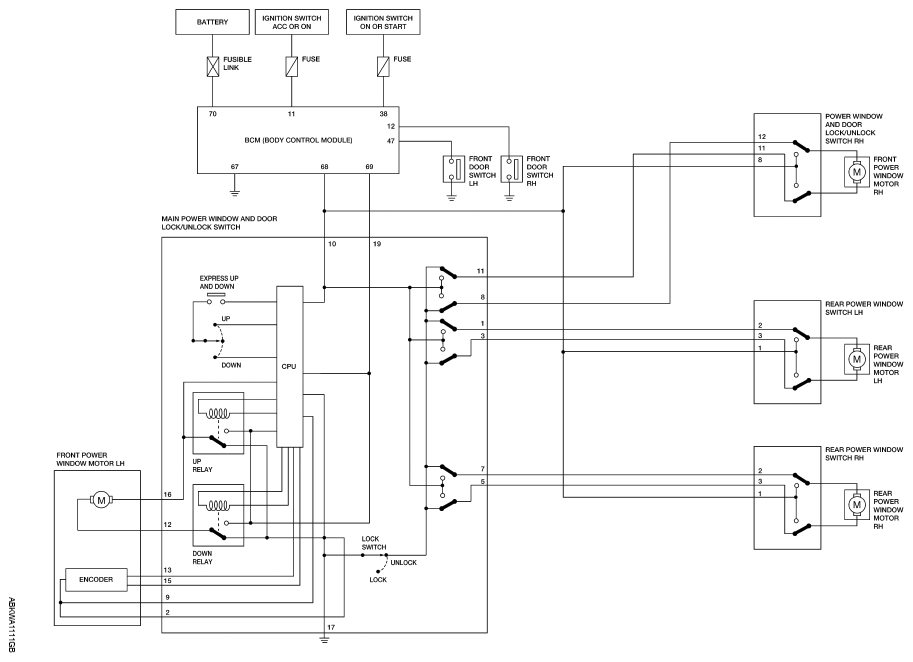

Fig 1: Identifying Power Window System Schematic

G07142748

Courtesy of NISSAN NORTH AMERICA, INC.
