Filament Check

When measuring voltage, wrap tin foil around the top of the negative probe. Then press the foil against the wire with your finger.

Fig 1: Pressing Tin Foil Against Heat Wire
Courtesy of NISSAN NORTH AMERICA, INC.
Attach probe circuit tester (in Volt range) to middle portion of each filament.

Fig 2: Checking Filament Circuit
Courtesy of NISSAN NORTH AMERICA, INC.
If a filament is burned out, circuit tester registers 0 or battery voltage.
To locate burned out point, move probe to left and right along filament. Test needle will swing abruptly when probe passes the point.

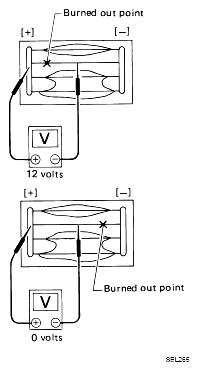

Fig 3: Identifying Burned Out Point
Courtesy of NISSAN NORTH AMERICA, INC.
