Coil Spring And Strut: Disposal

  1. Set strut assembly horizontally with the piston rod fully extended.
  2. Drill 2 - 3 mm (0.08 - 0.12 in) hole (A) at the position (•) from top as shown to release gas gradually.
    CAUTION:
    • Wear eye protection (safety glasses).
    • Wear gloves.
    • Be careful with metal chips or oil blown out by the compressed gas.
    NOTE:
    • Drill vertically in this direction (←).
    • Directly to the outer tube avoiding brackets.
    • The gas is clear, colorless, odorless, and harmless.

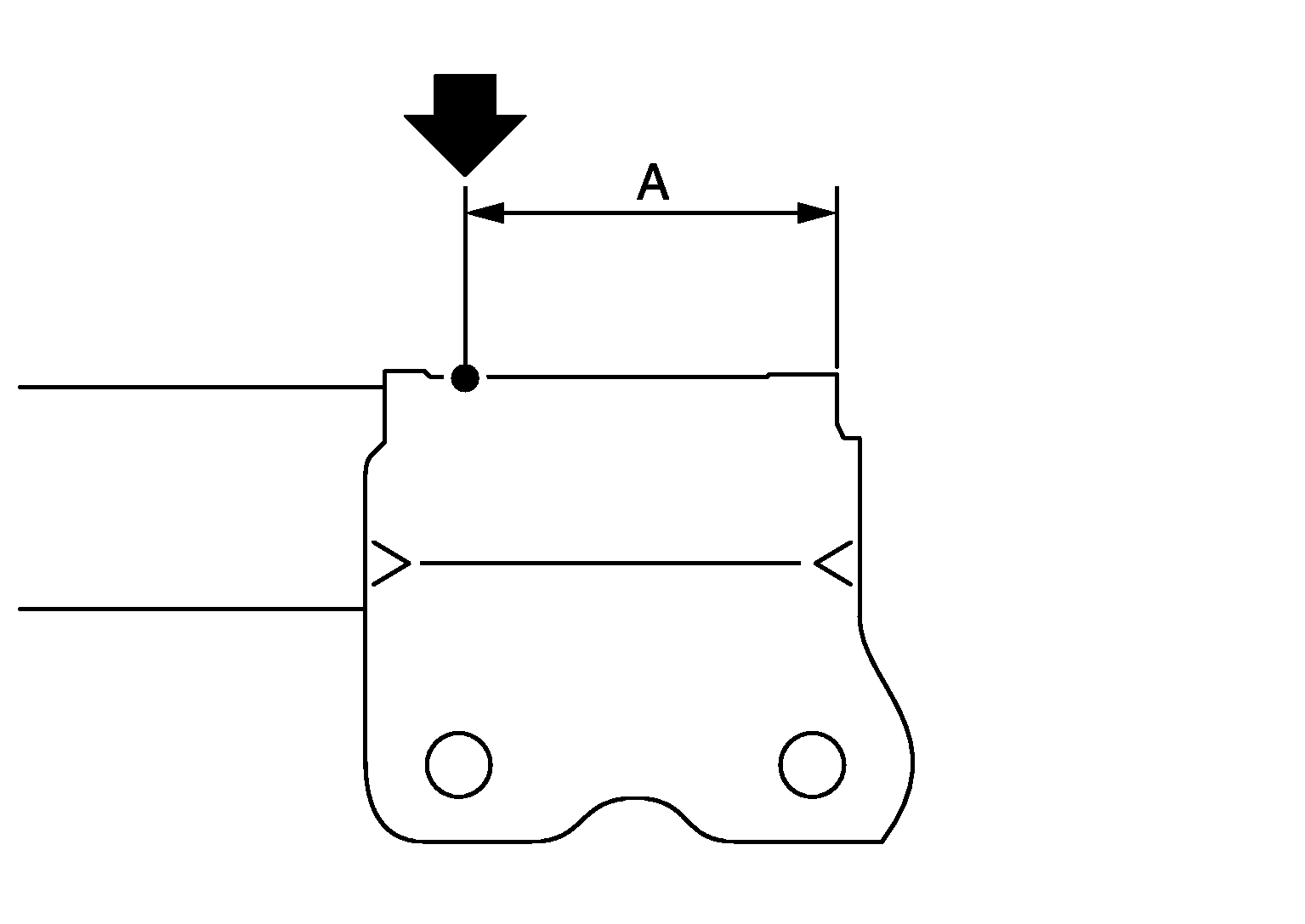

    Fig 1: Locating Hole Drilling Position
    G05915173Courtesy of NISSAN NORTH AMERICA, INC.

    A: 20 - 30 mm (0.79 - 1.18 in)

  3. Position the drilled hole downward and drain oil by moving the piston rod several times.
CAUTION: Dispose of drained oil according to the law and local regulations.
