SRT Set Driving Pattern

CAUTION: Always drive the vehicle in safe manner according to traffic conditions and obey all traffic laws.

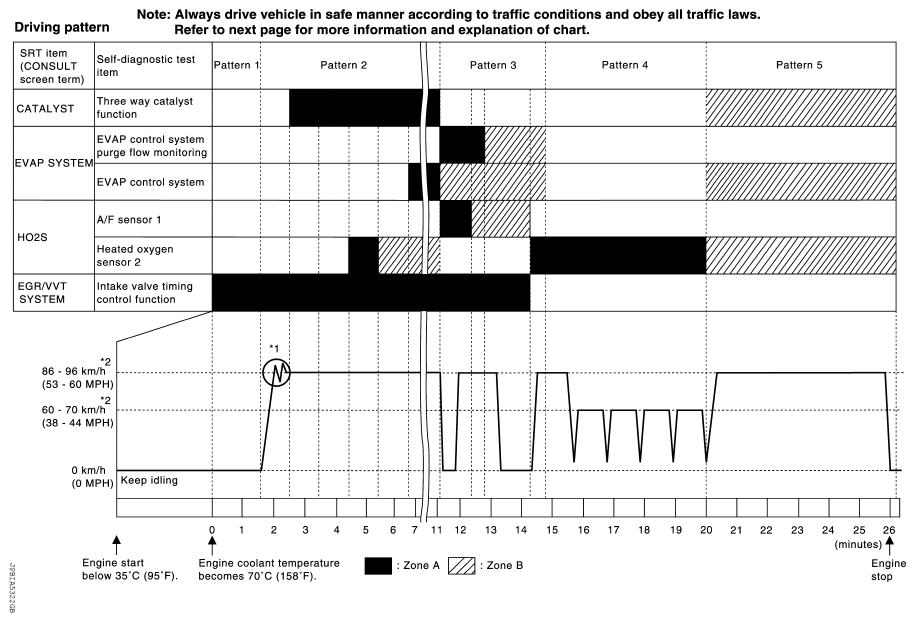

Fig 1: SRT Set Driving Pattern

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: *1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h(56 MPH) again.
*2: Checking the vehicle speed with GST is advised.

The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving habits, etc.

Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the shortest.

Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within zone A.

*: Normal conditions refer to the following:

Sea level
Flat road
Ambient air temperature: 20 - 30°C (68 - 86°F)
Diagnosis is performed as quickly as possible under normal conditions.
Under different conditions [For example: ambient air temperature other than 20 - 30°C (68 - 86°F)], diagnosis may also be performed.
"EGR/VVT SYSTEM" written in the figure is not applicable to the vehicle.
