Connector End Views

Fig 1: Engine Control System Connector End Views (1 Of 14)
G08989247Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Engine Control System Connector End Views (2 Of 14)
G08989248Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Engine Control System Connector End Views (3 Of 14)
G08989249Courtesy of NISSAN NORTH AMERICA, INC.

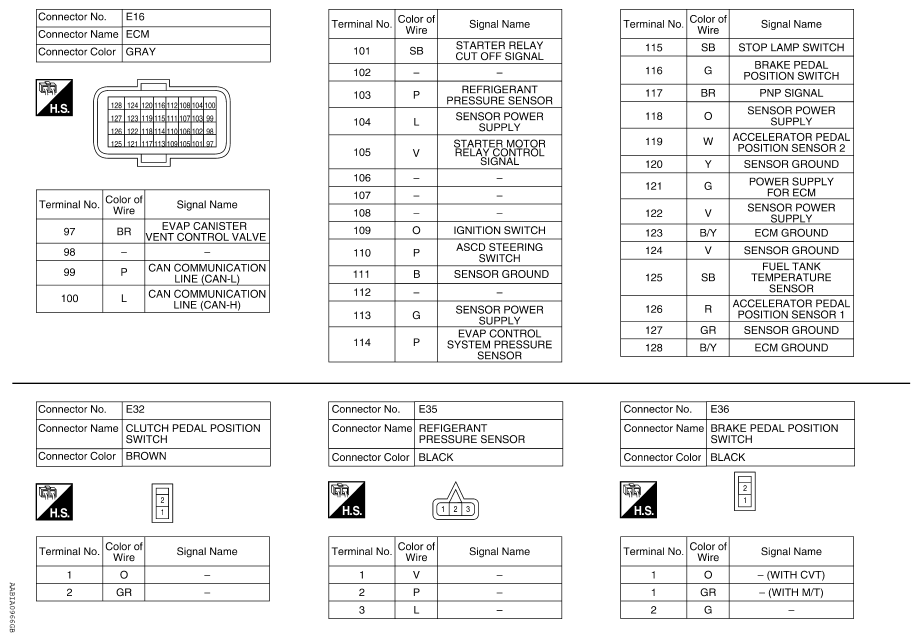

Fig 4: Engine Control System Connector End Views (4 Of 14)
G08989250Courtesy of NISSAN NORTH AMERICA, INC.

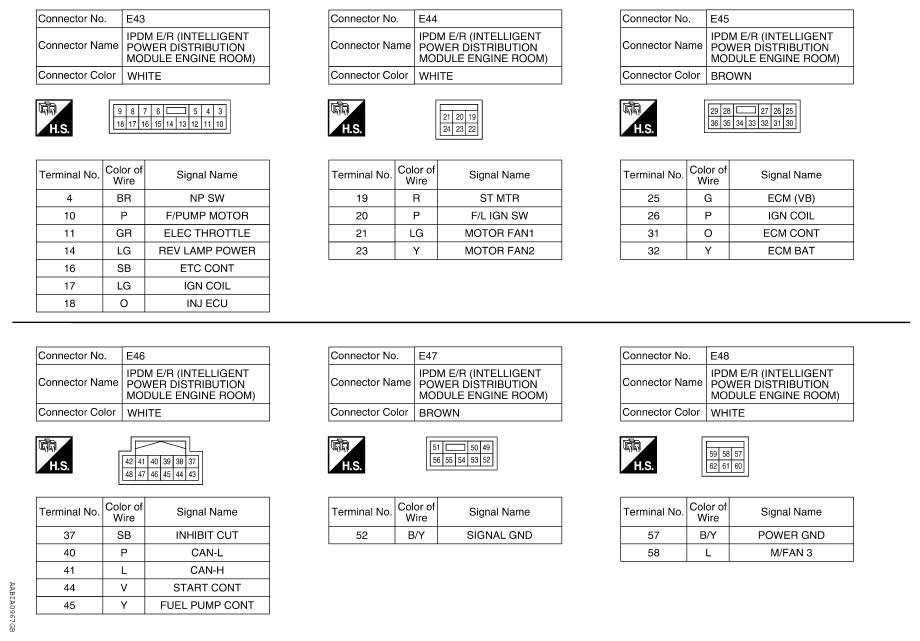

Fig 5: Engine Control System Connector End Views (5 Of 14)
G08989251Courtesy of NISSAN NORTH AMERICA, INC.

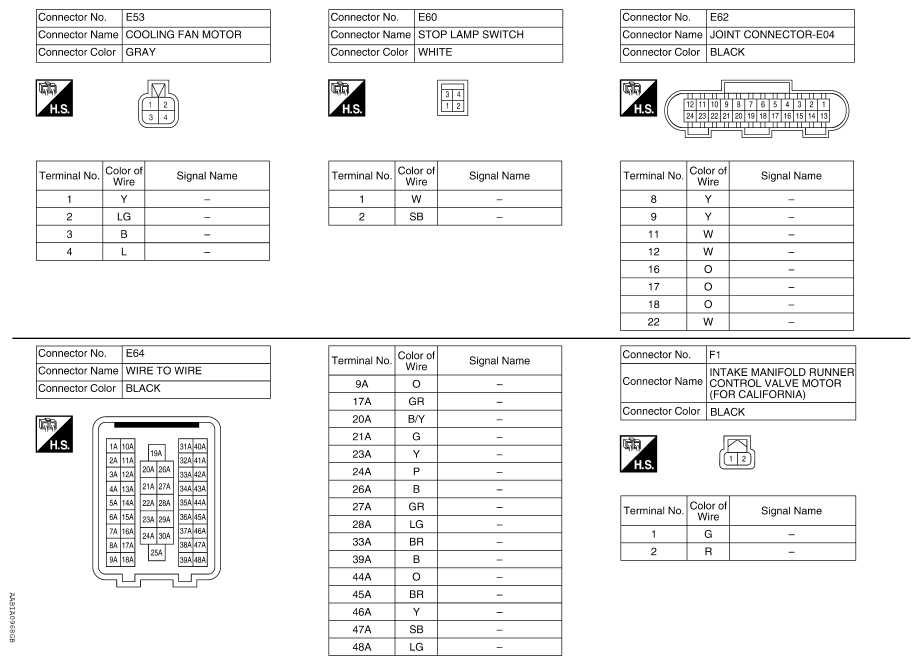

Fig 6: Engine Control System Connector End Views (6 Of 14)
G08989252Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: Engine Control System Connector End Views (7 Of 14)
G08989253Courtesy of NISSAN NORTH AMERICA, INC.

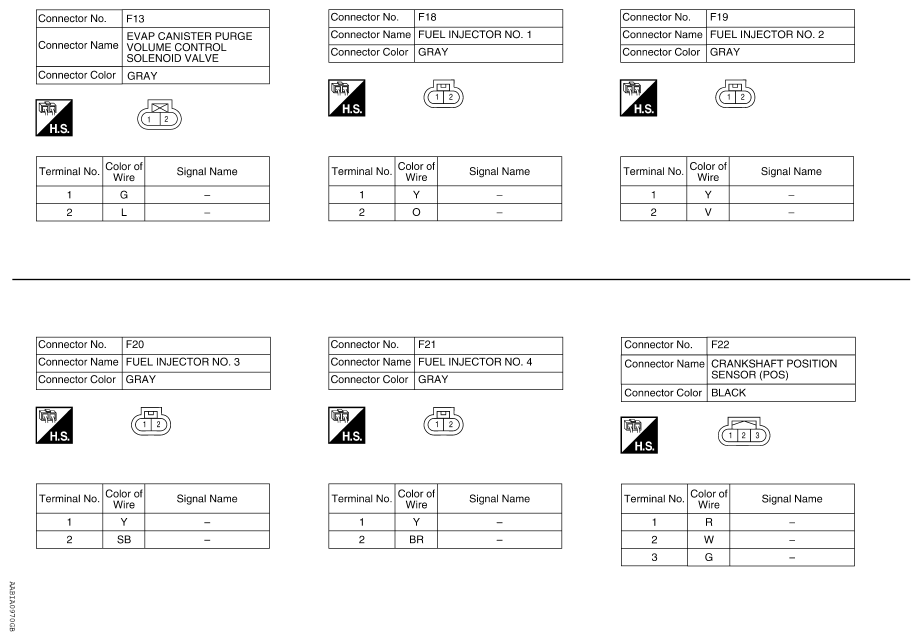

Fig 8: Engine Control System Connector End Views (8 Of 14)
G08989254Courtesy of NISSAN NORTH AMERICA, INC.

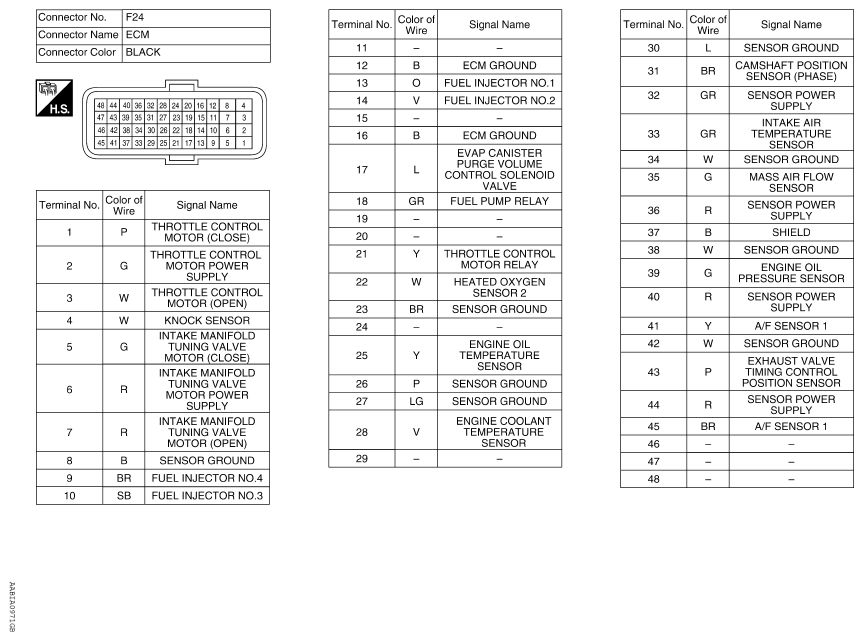

Fig 9: Engine Control System Connector End Views (9 Of 14)
G08989255Courtesy of NISSAN NORTH AMERICA, INC.

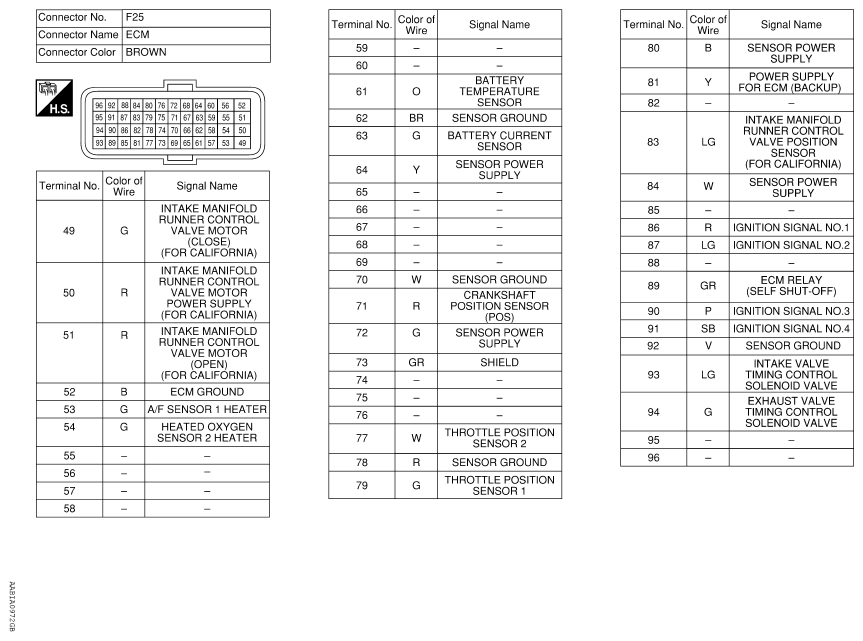

Fig 10: Engine Control System Connector End Views (10 Of 14)
G08989256Courtesy of NISSAN NORTH AMERICA, INC.

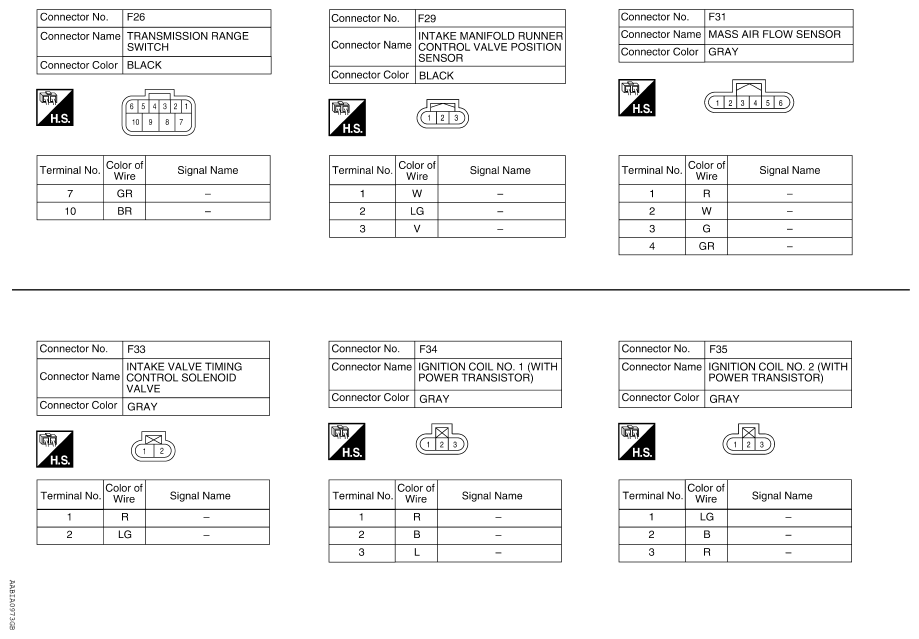

Fig 11: Engine Control System Connector End Views (11 Of 14)
G08989257Courtesy of NISSAN NORTH AMERICA, INC.

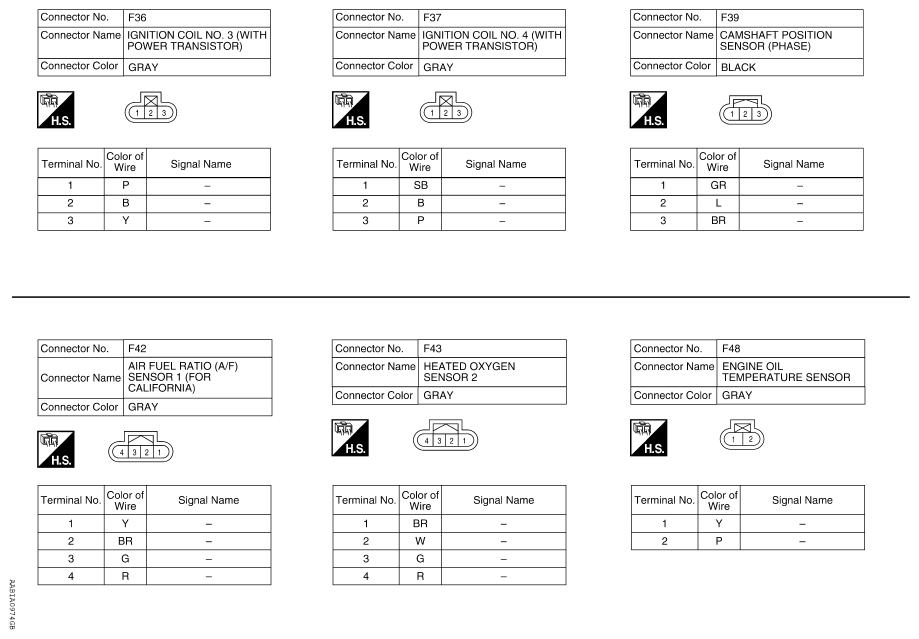

Fig 12: Engine Control System Connector End Views (12 Of 14)
G08989258Courtesy of NISSAN NORTH AMERICA, INC.

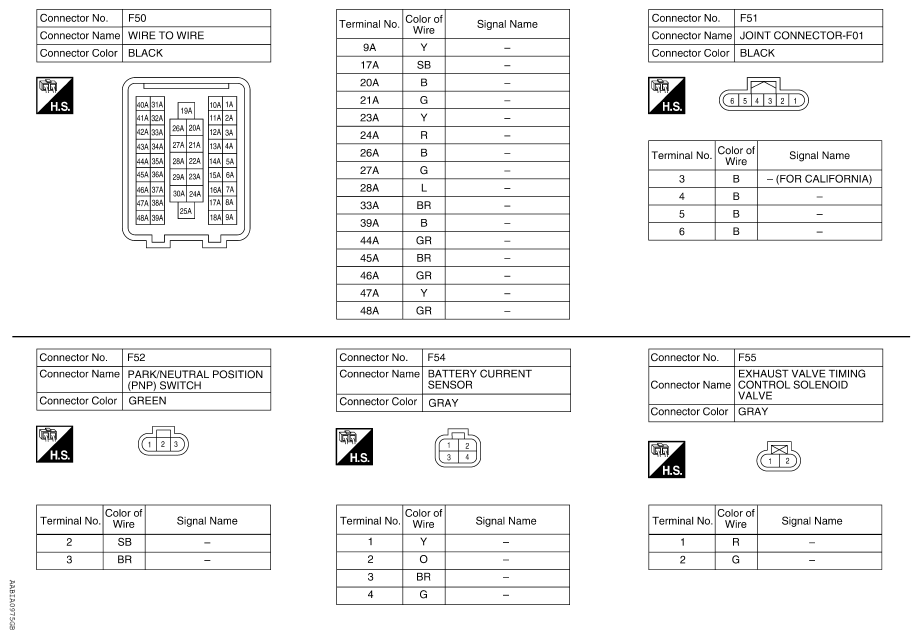

Fig 13: Engine Control System Connector End Views (13 Of 14)
G08989259Courtesy of NISSAN NORTH AMERICA, INC.
Fig 14: Engine Control System Connector End Views (14 Of 14)
G08989260Courtesy of NISSAN NORTH AMERICA, INC.
