Front Power Window LH Anti-Pinch System

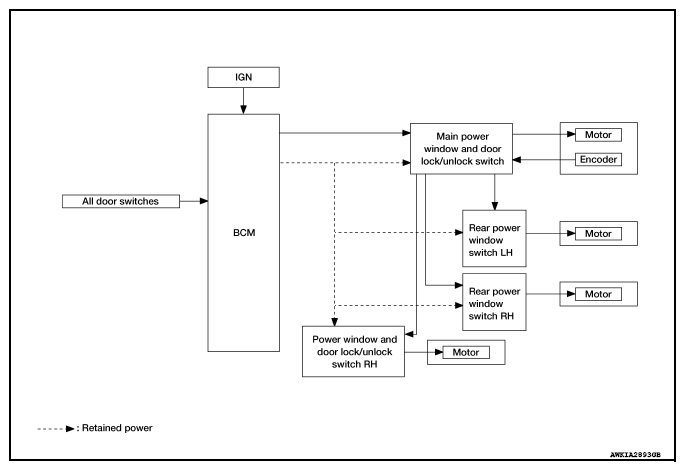

Fig 1: Front Power Window LH Anti-Pinch - System Diagram
G09460255Courtesy of NISSAN NORTH AMERICA, INC.
