Overall Sequence

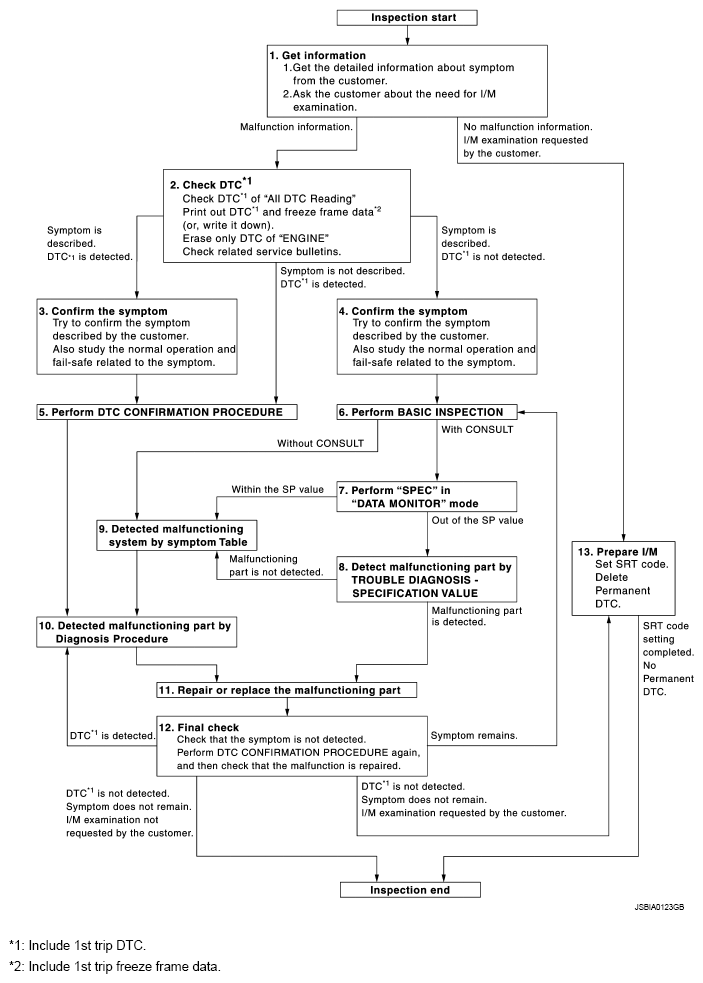

Fig 1: Diagnosis And Repair Work Flow Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
