Engine Oil Temperature Sensor

The engine oil temperature sensor is used to detect the engine oil temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine oil temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

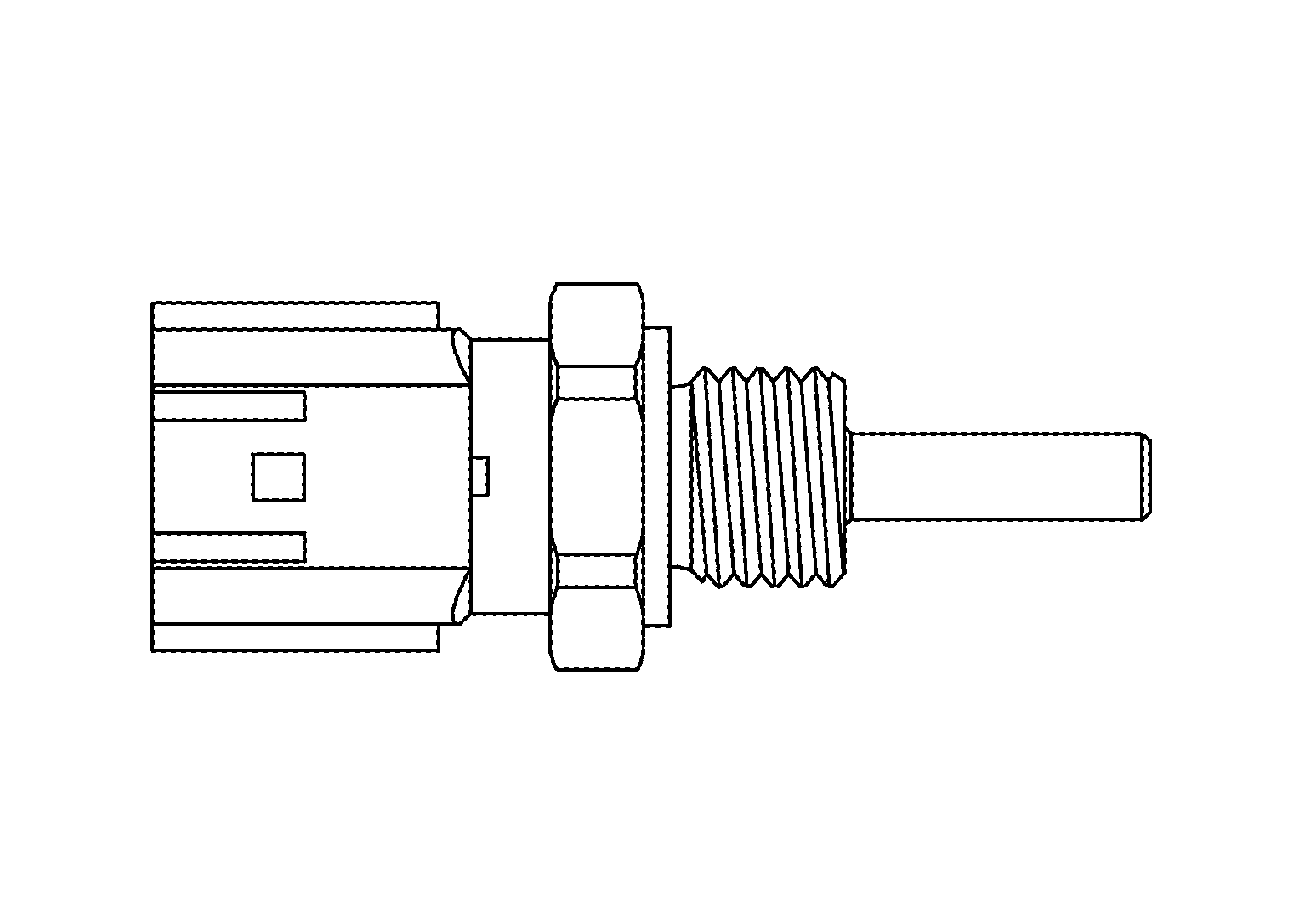

Fig 1: Identifying Engine Oil Temperature Sensor

Courtesy of NISSAN NORTH AMERICA, INC.

VOLTAGE AND RESISTANCE REFERENCE DATA

Engine oil temperature [°C (°F)]

Voltage⁽¹⁾ (V)

Resistance (kΩ)

--10 (14)

4.4

7.0 - 11.4

20 (68)

3.5

2.37 - 2.63

50 (122)

2.2

0.68 - 1.00

90 (194)

0.9

0.236 - 0.260

110 (230)

0.6

0.143 - 0.153

⁽¹⁾	These data are reference values and are measured between ECM terminals.

Fig 2: Engine Oil Temperature Sensor Resistance Graph

Courtesy of NISSAN NORTH AMERICA, INC.
