Engine Control System Connector End Views

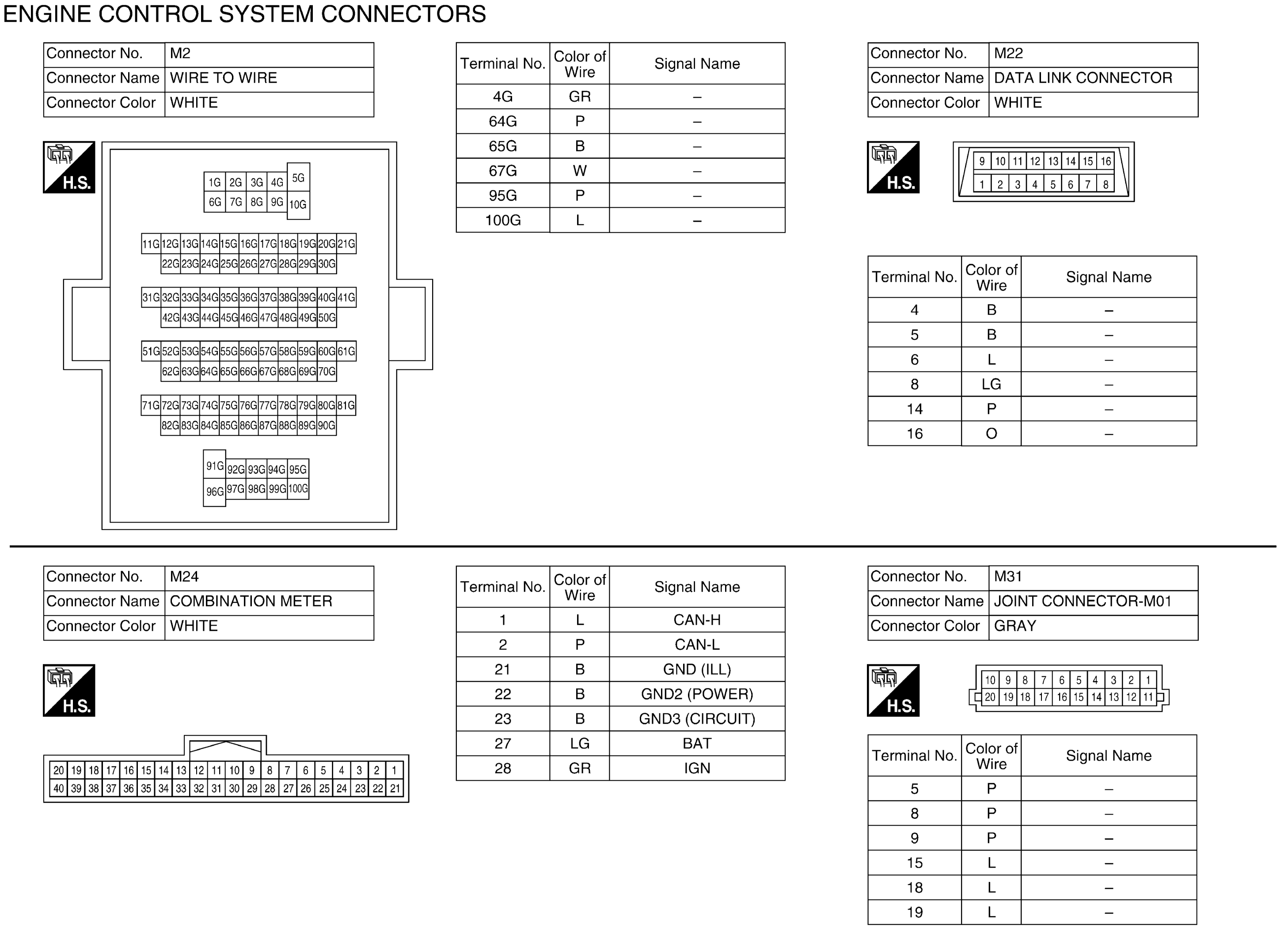

Fig 1: Engine Control System Connector End View (1 Of 15)
G08989247Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Engine Control System Connector End View (2 Of 15)
G08989248Courtesy of NISSAN NORTH AMERICA, INC.

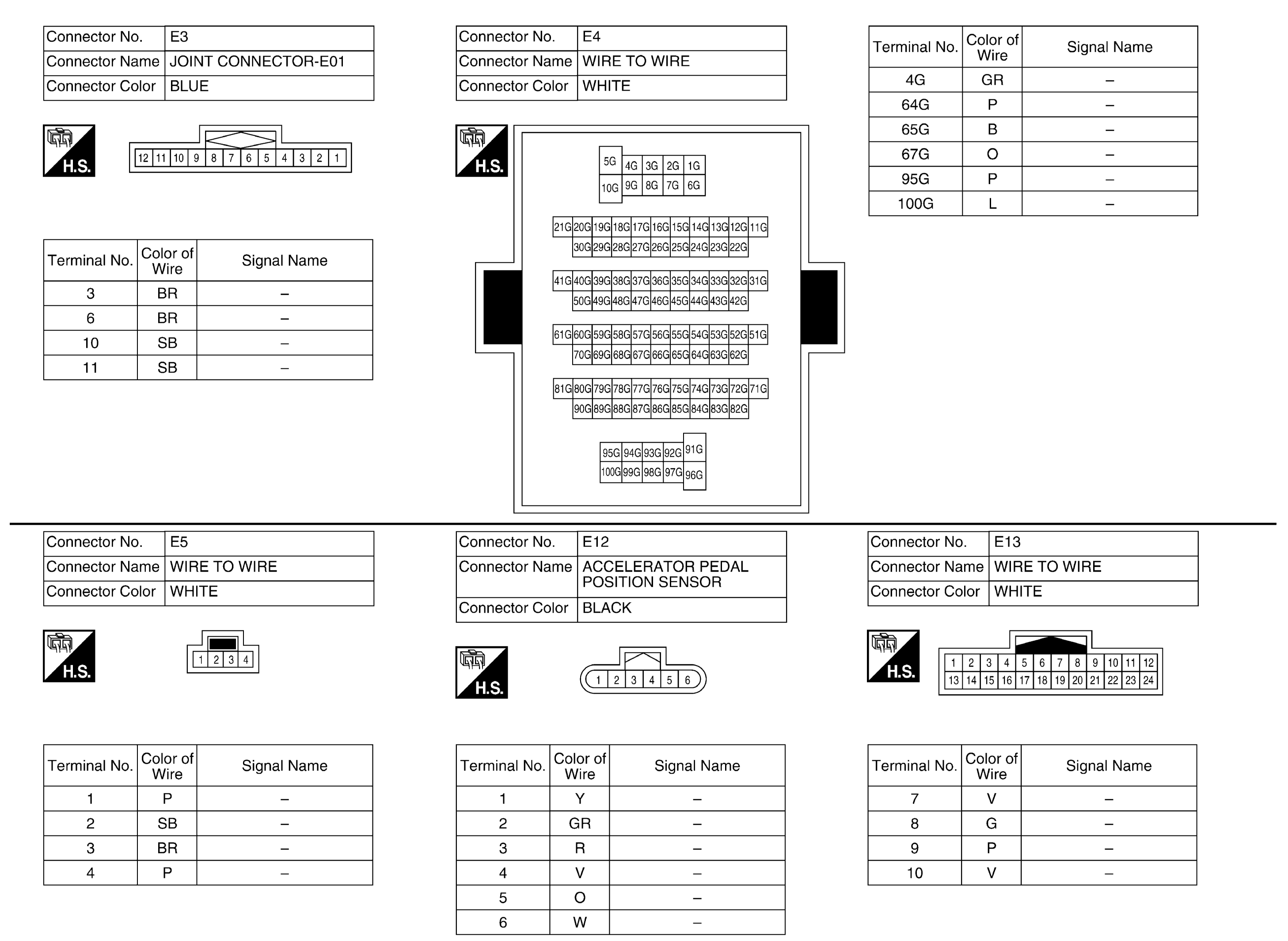

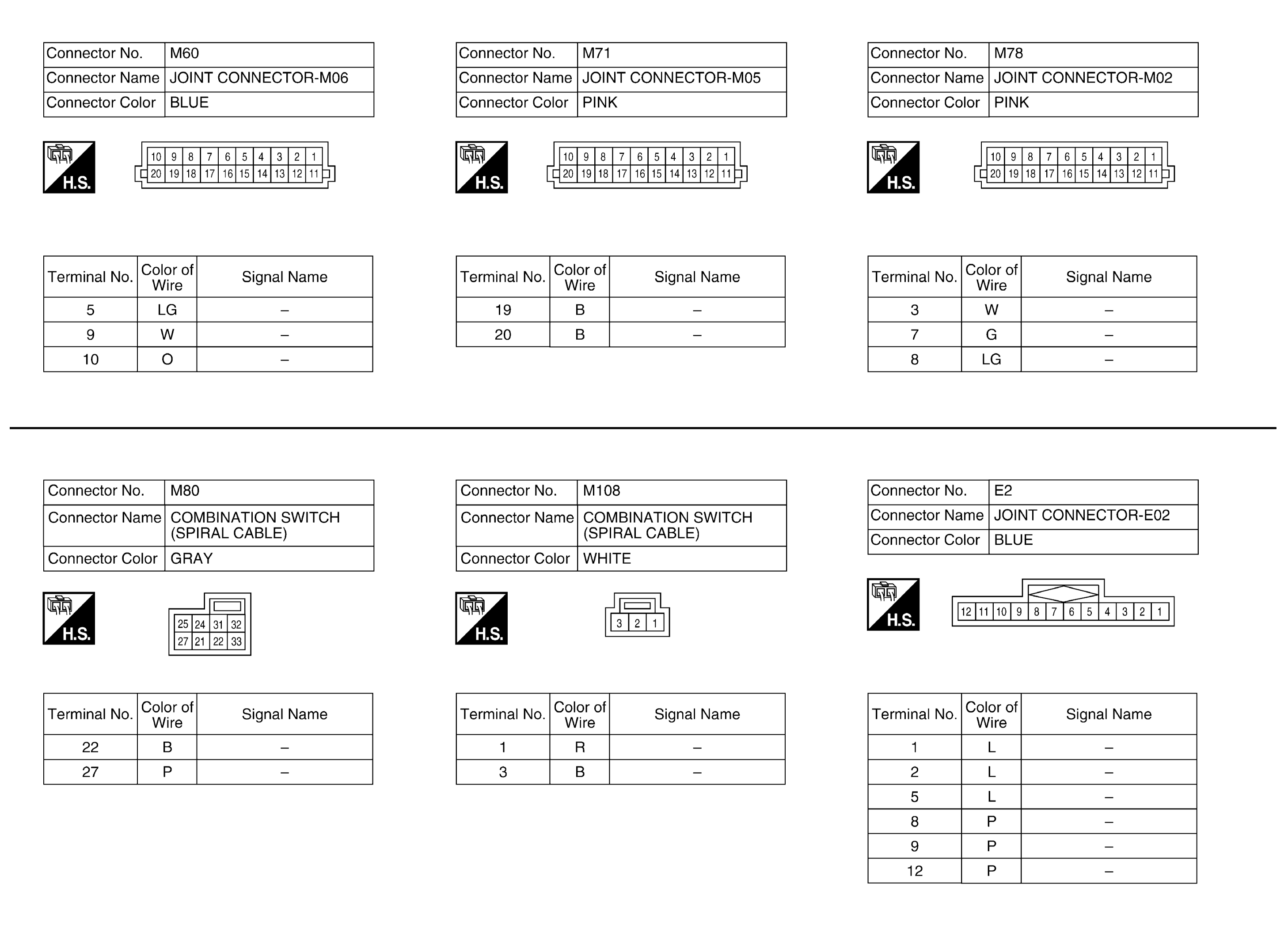

Fig 3: Engine Control System Connector End View (3 Of 15)
G08989249Courtesy of NISSAN NORTH AMERICA, INC.

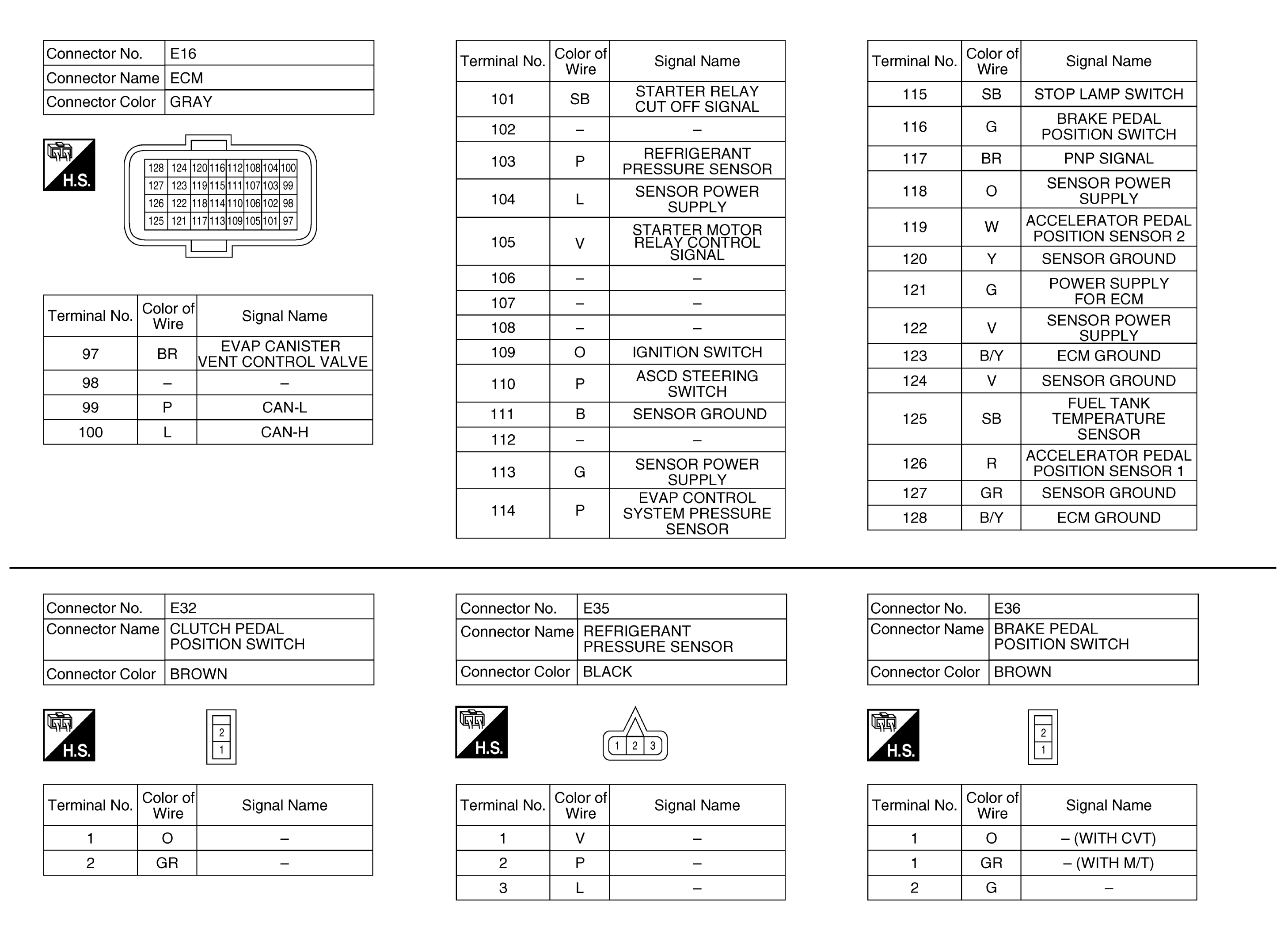

Fig 4: Engine Control System Connector End View (4 Of 15)
G09458352Courtesy of NISSAN NORTH AMERICA, INC.

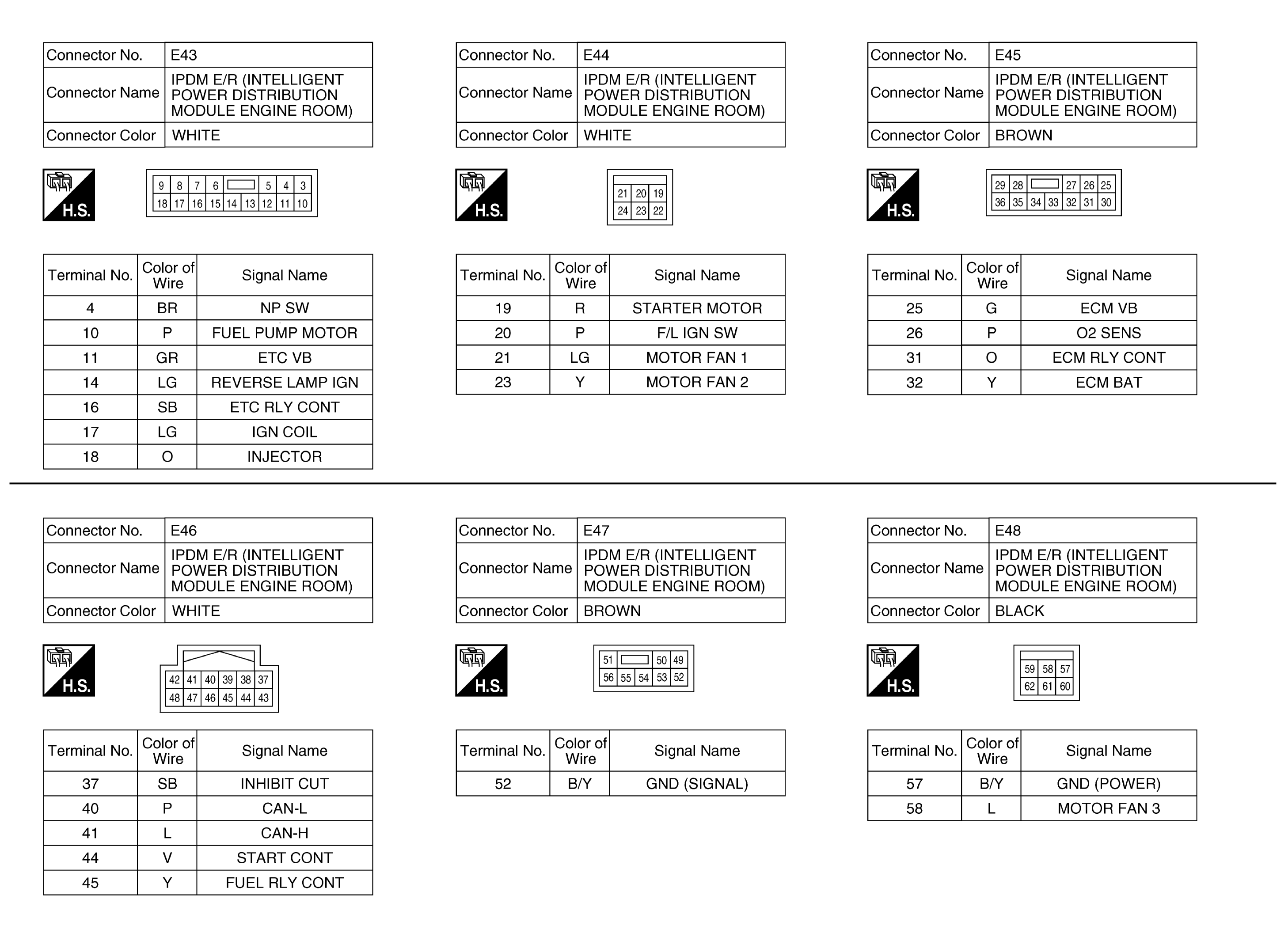

Fig 5: Engine Control System Connector End View (5 Of 15)
G09458353Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: Engine Control System Connector End View (6 Of 15)

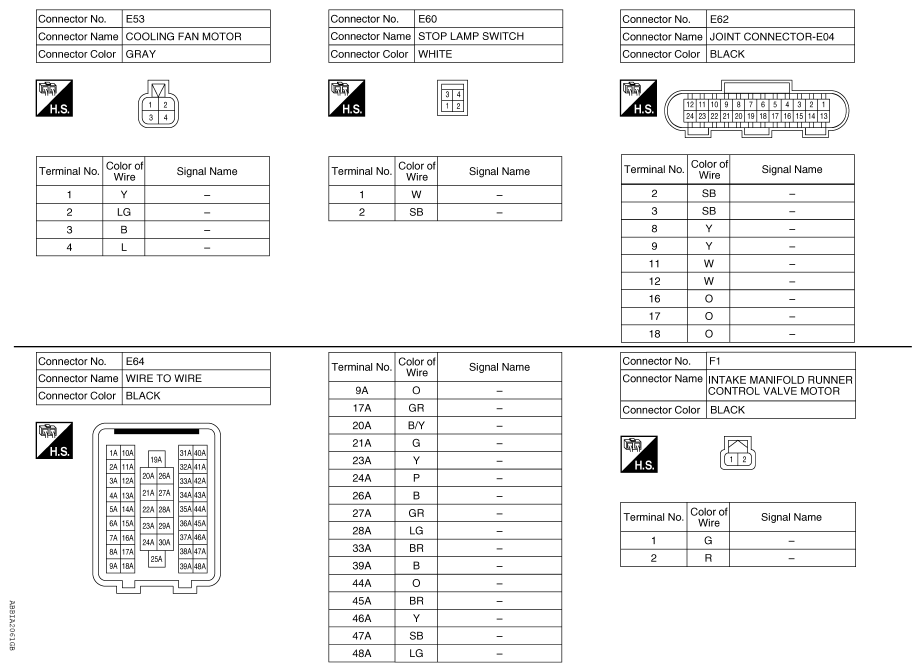

G09458354Courtesy of NISSAN NORTH AMERICA, INC.

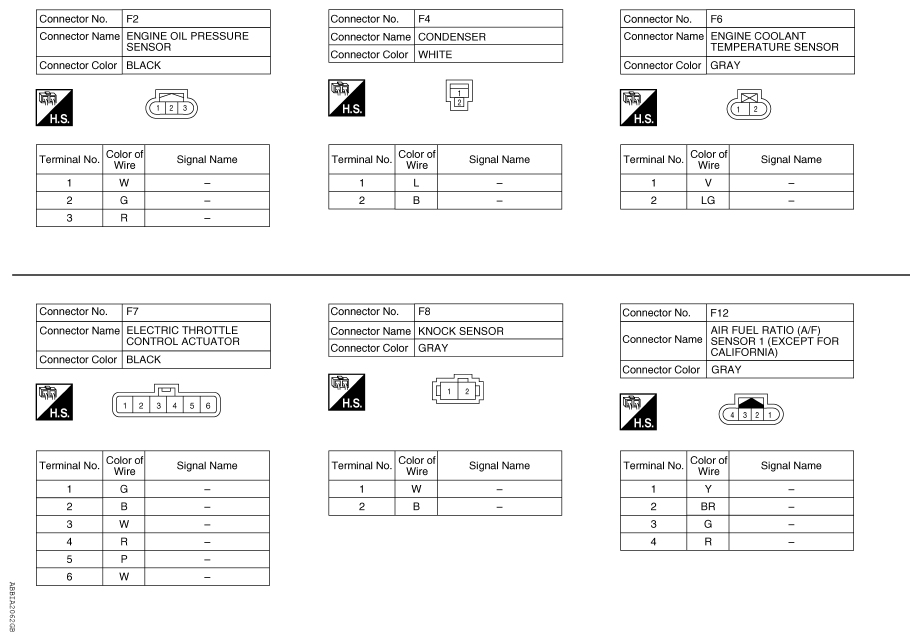

Fig 7: Engine Control System Connector End View (7 Of 15)
G09458355Courtesy of NISSAN NORTH AMERICA, INC.

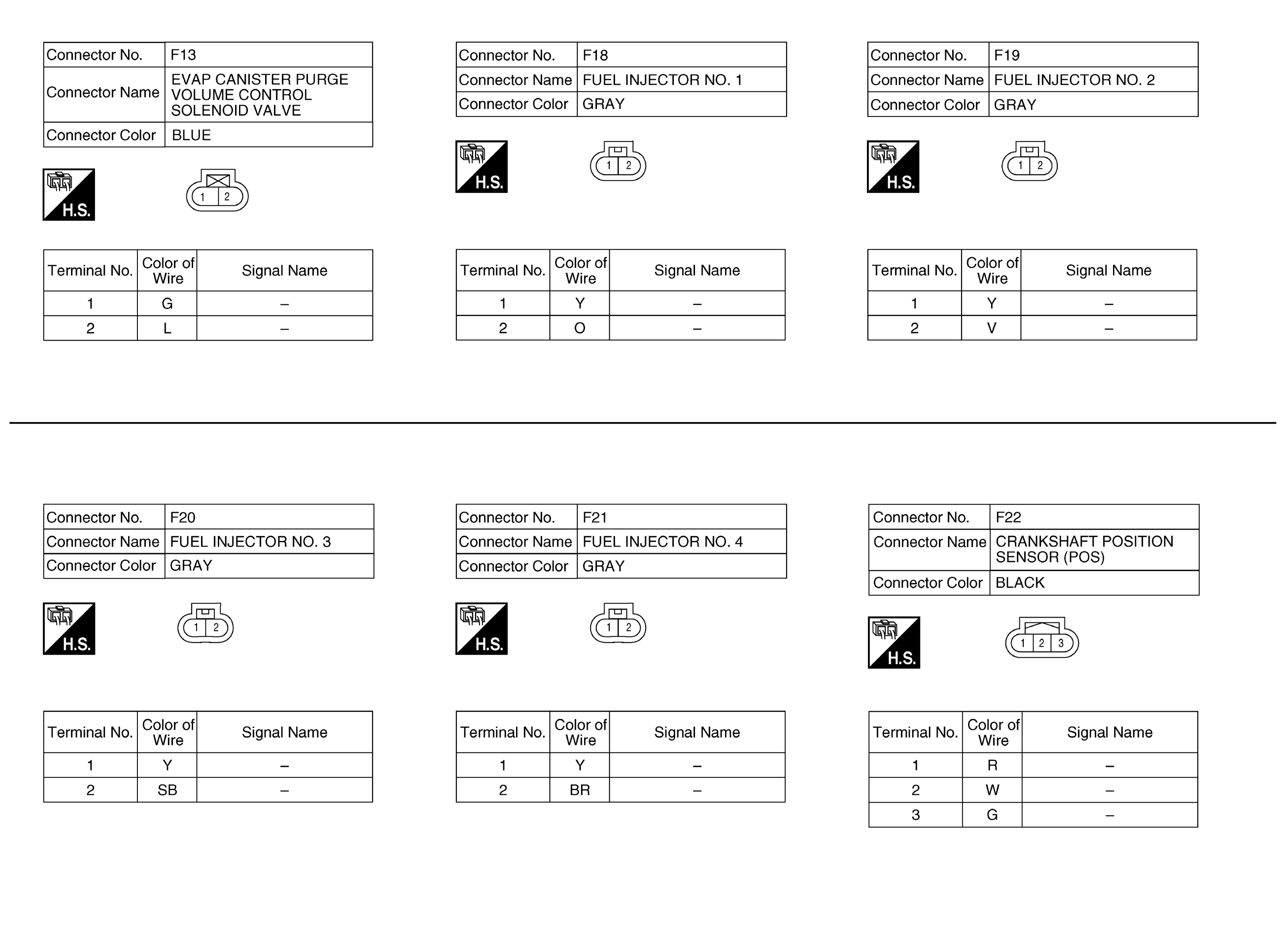

Fig 8: Engine Control System Connector End View (8 Of 15)
G09458356Courtesy of NISSAN NORTH AMERICA, INC.

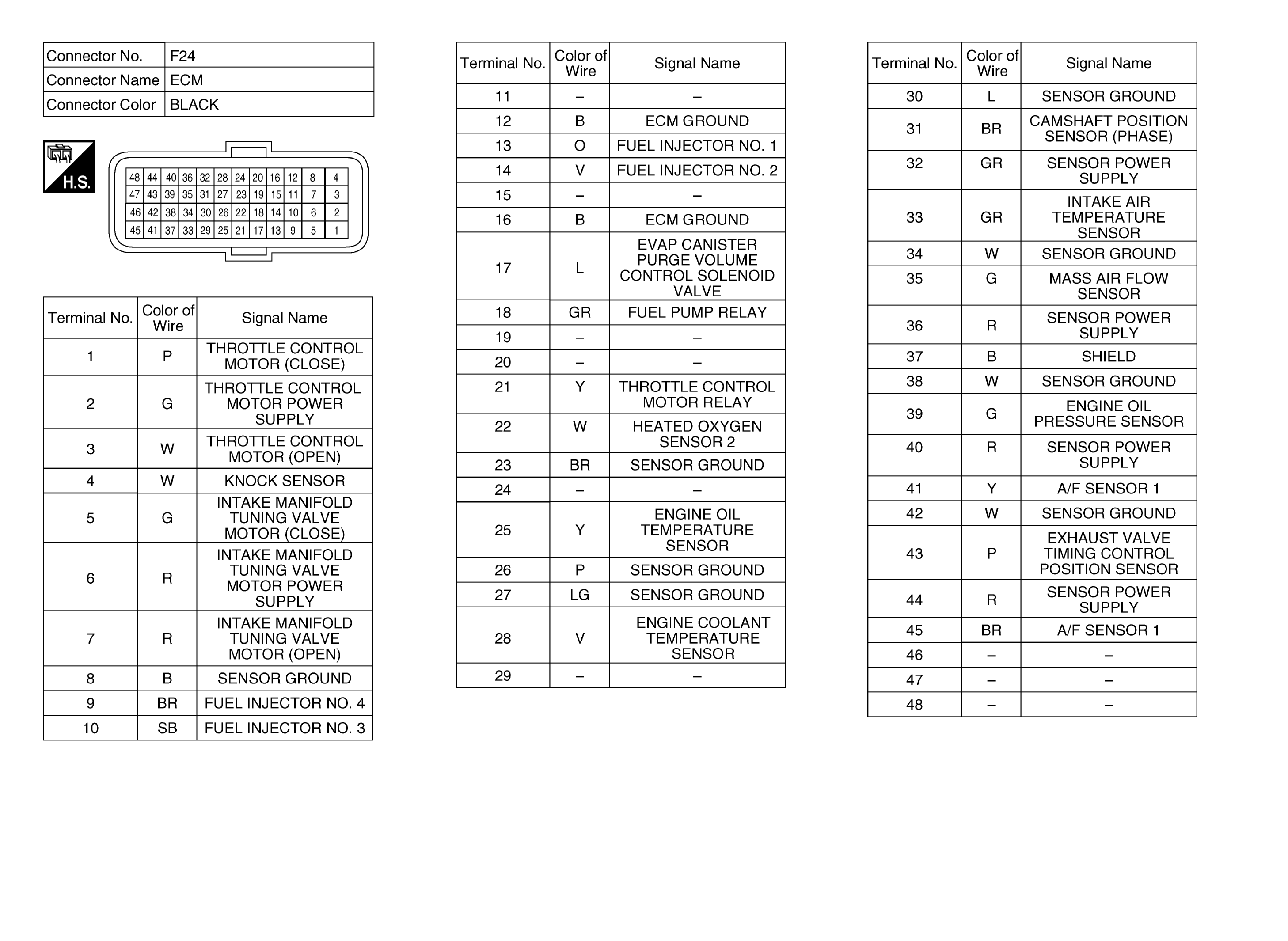

Fig 9: Engine Control System Connector End View (9 Of 15)
G09458357Courtesy of NISSAN NORTH AMERICA, INC.
Fig 10: Engine Control System Connector End View (10 Of 15)

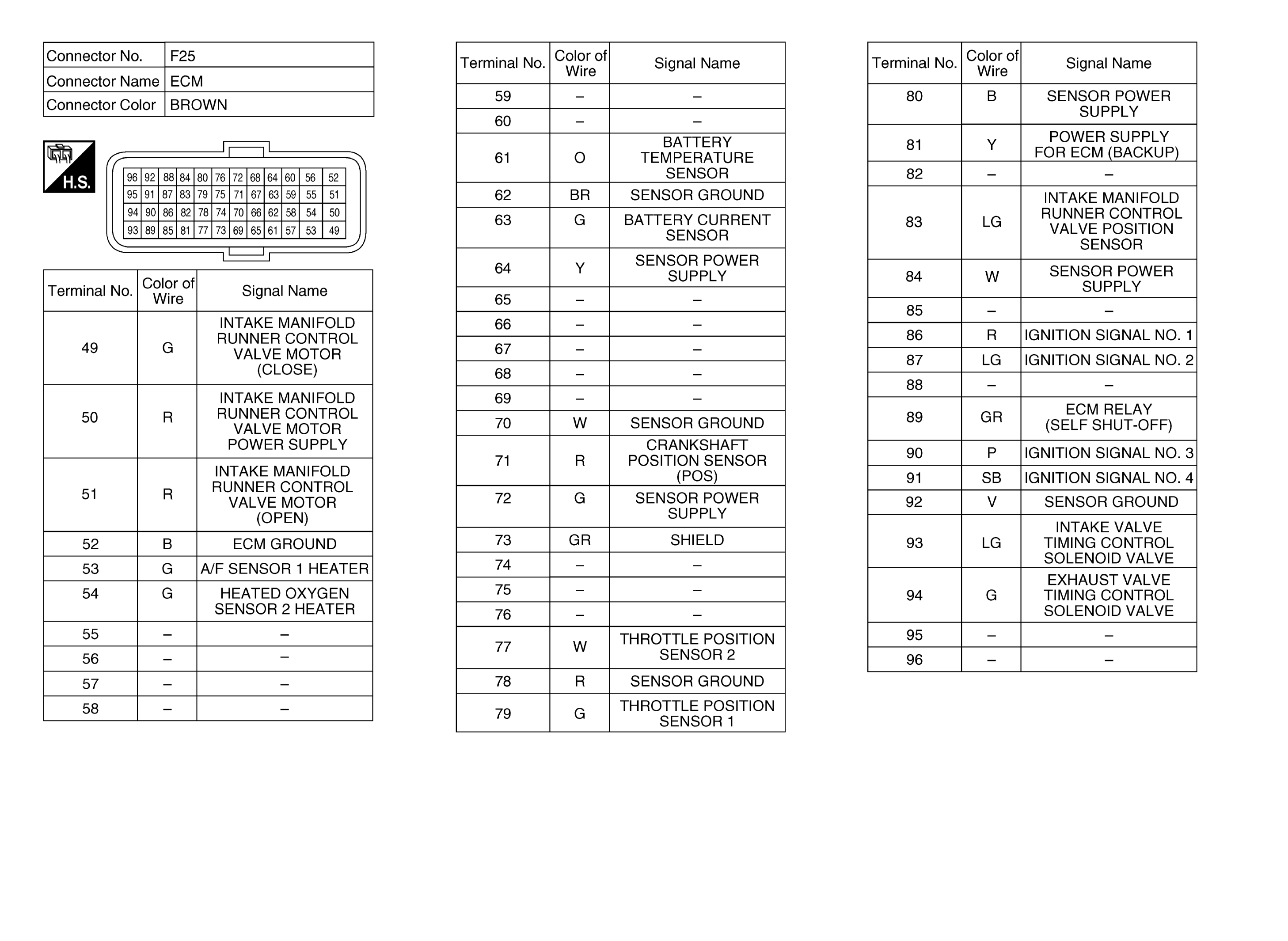

G09458358Courtesy of NISSAN NORTH AMERICA, INC.
Fig 11: Engine Control System Connector End View (11 Of 15)

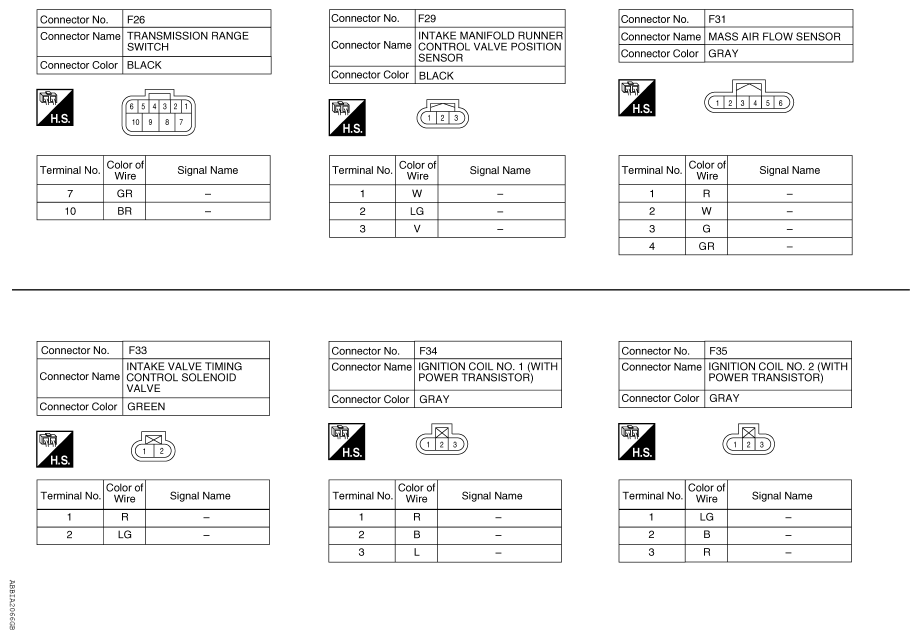

G09458359Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Engine Control System Connector End View (12 Of 15)

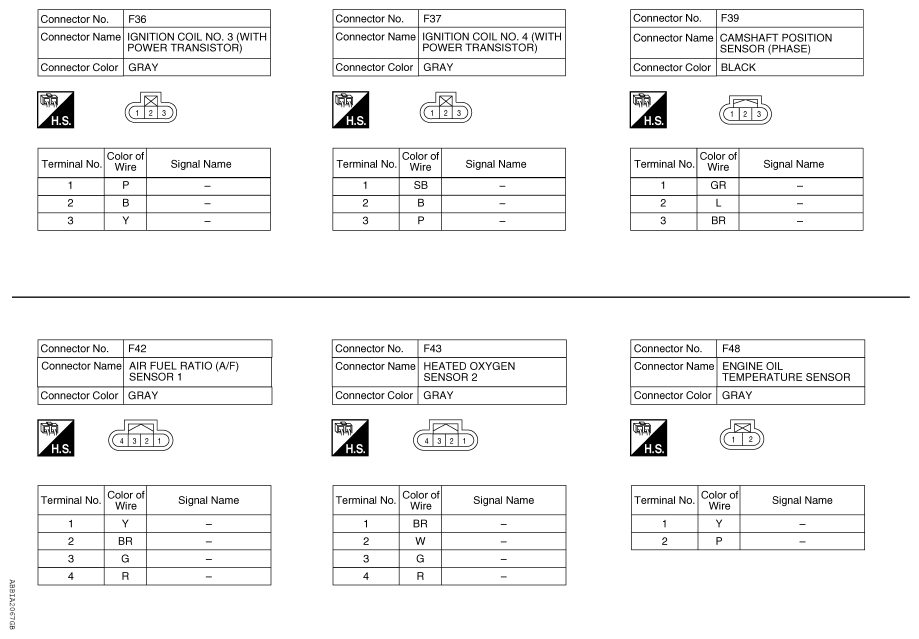

G09458360Courtesy of NISSAN NORTH AMERICA, INC.

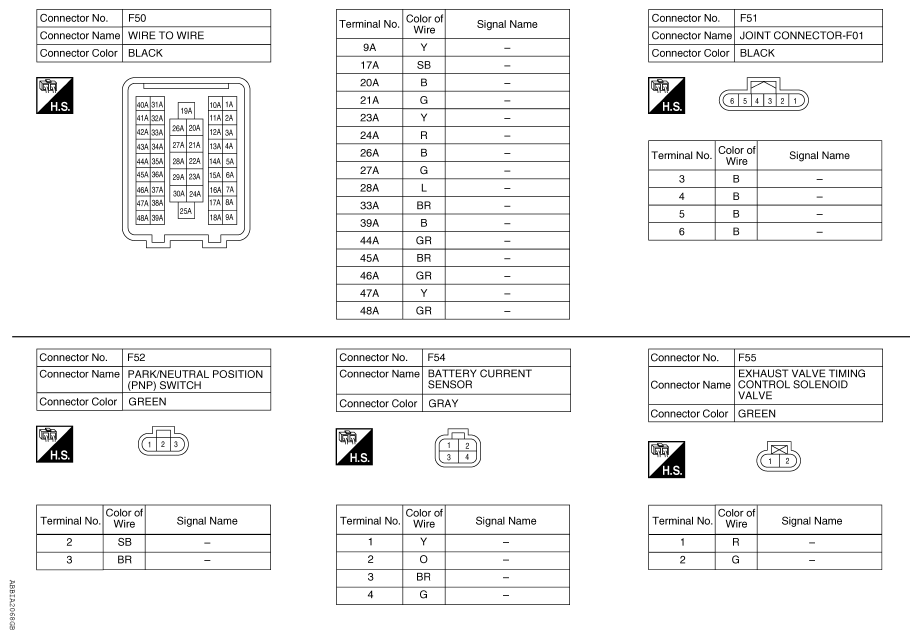

Fig 13: Engine Control System Connector End View (13 Of 15)
G09458361Courtesy of NISSAN NORTH AMERICA, INC.
Fig 14: Engine Control System Connector End View (14 Of 15)

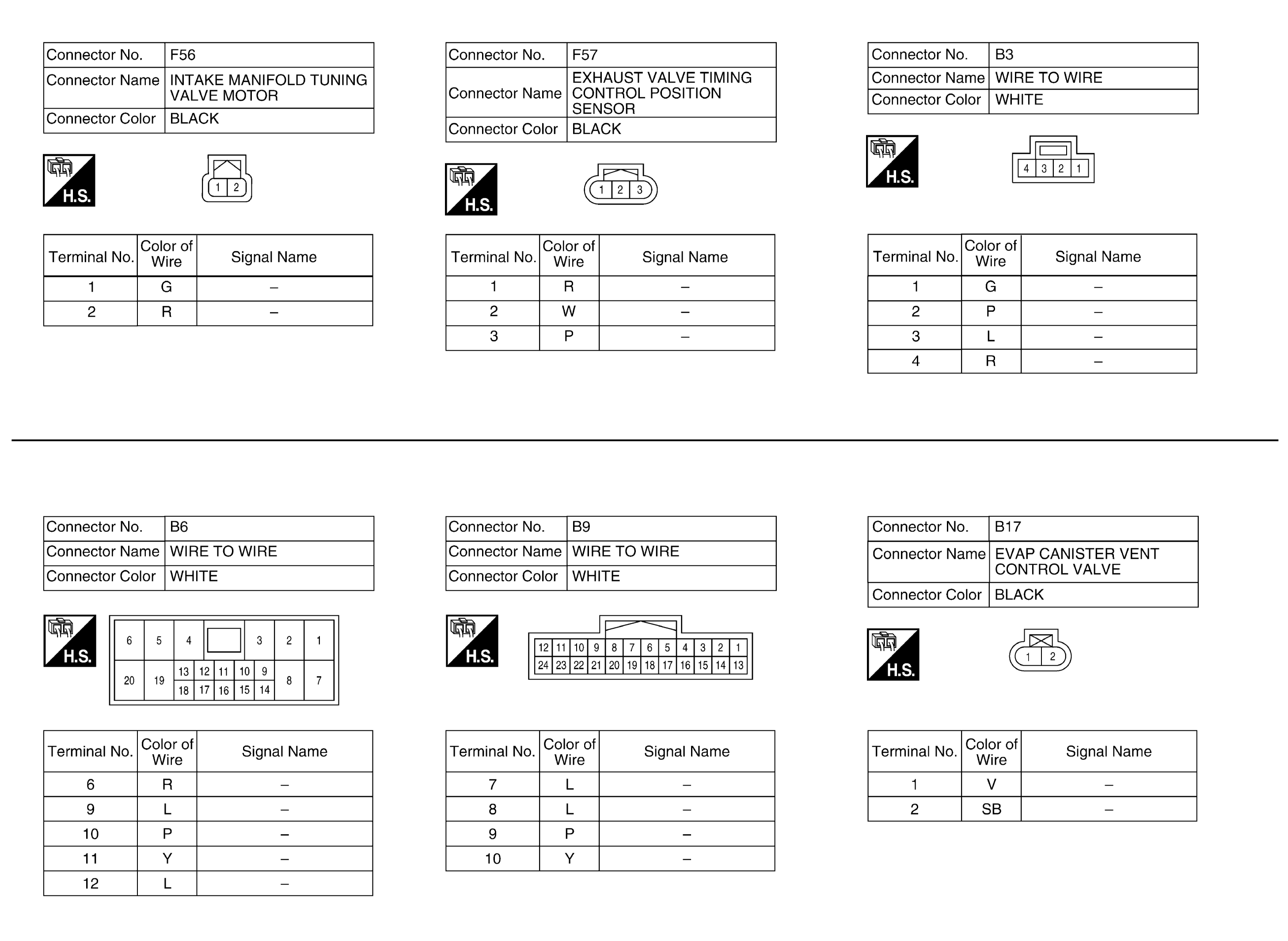

G08989260Courtesy of NISSAN NORTH AMERICA, INC.

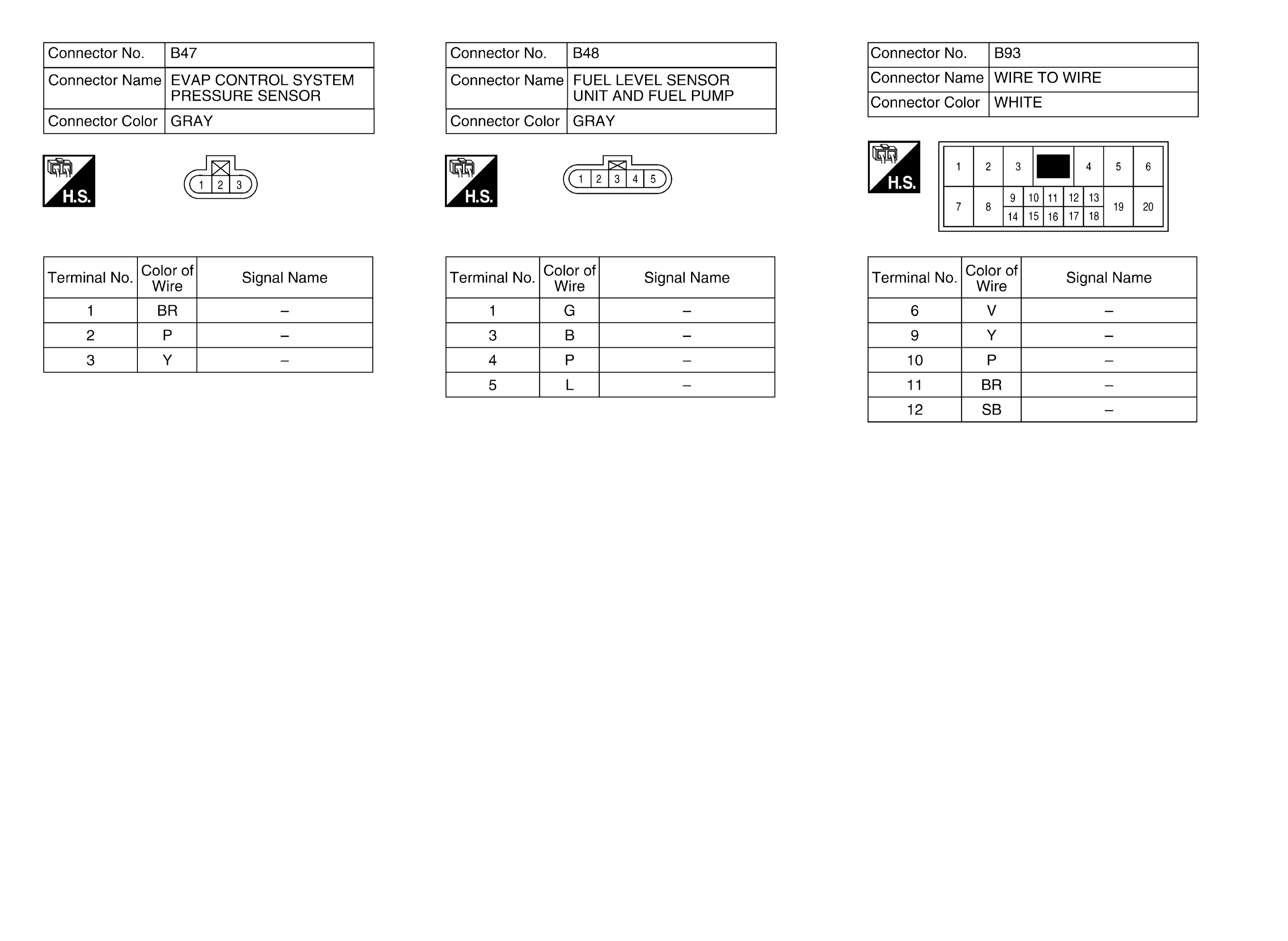

Fig 15: Engine Control System Connector End View (15 Of 15)
G09458363Courtesy of NISSAN NORTH AMERICA, INC.
