Removal and Installation: Removal

  1. Remove rear power window switch door handle pull escutcheon.
  2. Remove screw (A) from rear power window switch finisher.
  3. Remove rear power window switch finisher (1) using a suitable tool (B).
    Fig 1: Removing Power Window Switch Finisher Using Suitable Tool
    G09604544Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connector from the rear power window switch.
  5. Release pawls and remove rear power window switch (1) from rear power window switch finisher (2) using a suitable tool.
    CAUTION: Do not bend back the pawls on the switch finisher too far or damage may occur.

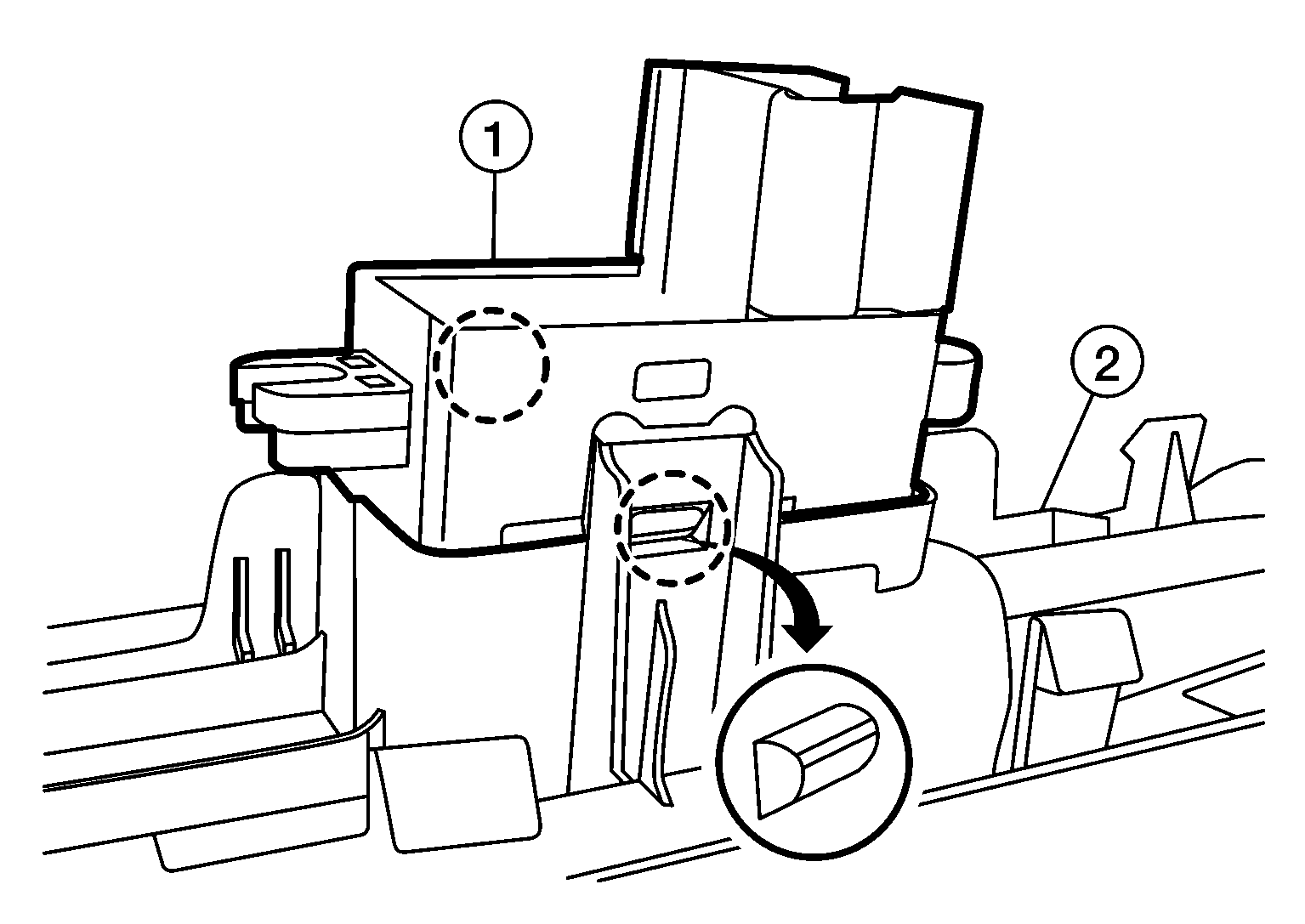

    Fig 2: Removing Rear Power Window Switch From Rear Power Window Switch Finisher Using Suitable Tool
    G09604545Courtesy of NISSAN NORTH AMERICA, INC.
