Exploded View With Torque Specifications

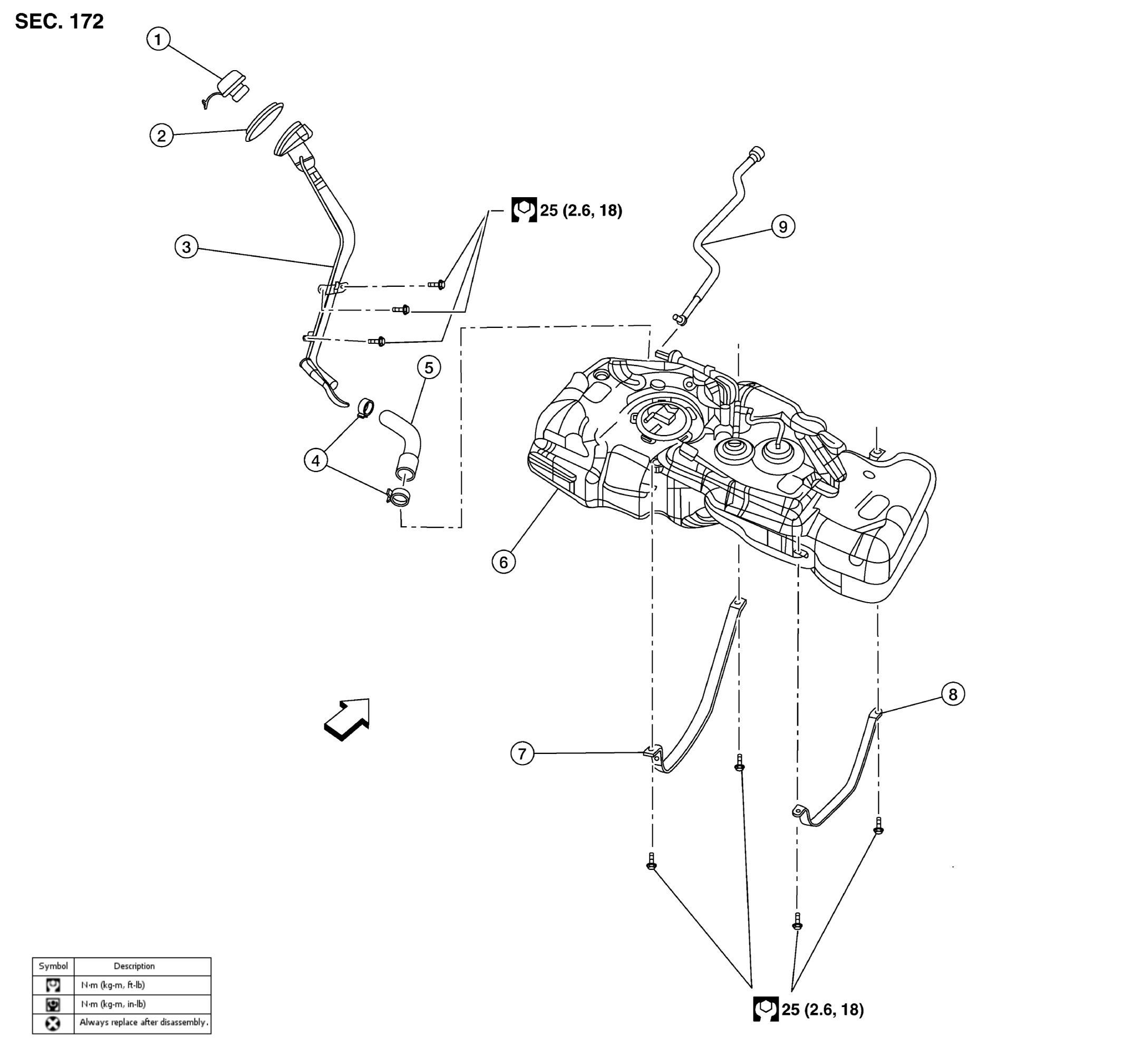

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
GNSAWBIA1496ZZ-496Courtesy of NISSAN NORTH AMERICA, INC.
1. Fuel filler cap 2. Grommet 3. Fuel filler tube
4. Clamp 5. Fuel filler hose 6. Fuel tank
7. Fuel tank mounting band (RH) 8. Fuel tank mounting band (LH) 9. Vent hose
ARROW : Front
