Body Compartment

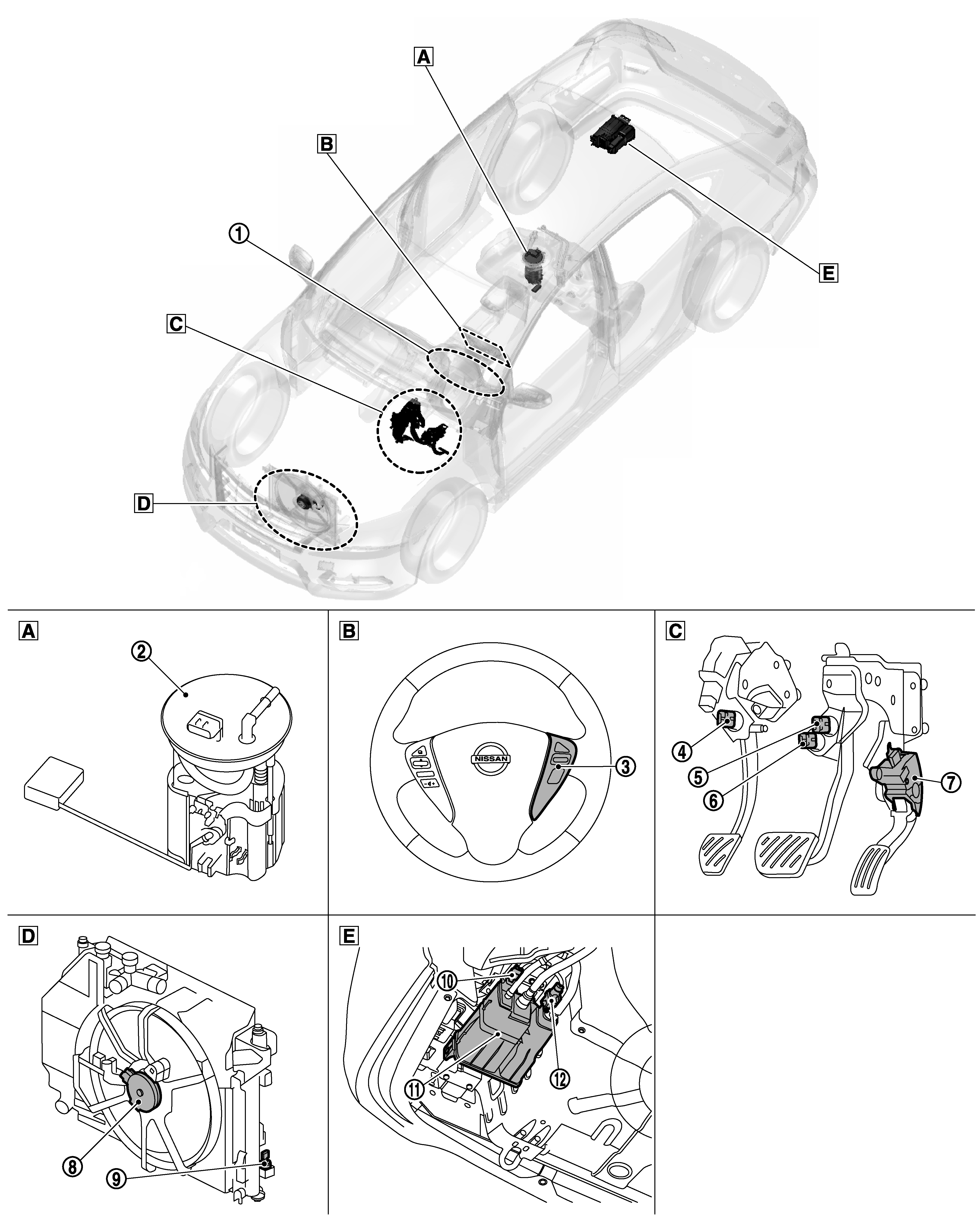

Fig 1: Body Compartment Components Location
GNSJSBIA3185ZZ-185Courtesy of NISSAN NORTH AMERICA, INC.
WZ-A Under the right side second seat WZ-B On the steering wheel WZ-C Periphery of pedals
WZ-D Radiator assembly WZ-E Under the left side fuel tank
No. Component Function
WHITE-1 Combination meter COMPONENT DESCRIPTION
WHITE-2 Fuel level sensor unit, fuel filter and fuel pump assembly FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
WHITE-3 ASCD steering switch ASCD STEERING SWITCH
WHITE-4 Clutch pedal position switch CLUTCH PEDAL POSITION SWITCH
WHITE-5 Stop lamp switch STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH
WHITE-6 Brake pedal position switch STOP LAMP SWITCH & BRAKE PEDAL POSITION SWITCH
WHITE-7 Accelerator pedal position sensor ACCELERATOR PEDAL POSITION SENSOR
WHITE-8 Cooling fan motor COOLING FAN
WHITE-9 Refrigerant pressure sensor REFRIGERANT PRESSURE SENSOR
WHITE-10 EVAP control system pressure sensor EVAP CONTROL SYSTEM PRESSURE SENSOR
WHITE-11 EVAP canister EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the tank.
WHITE-12 EVAP canister vent control valve EVAP CANISTER VENT CONTROL VALVE
