Engine Room Compartment

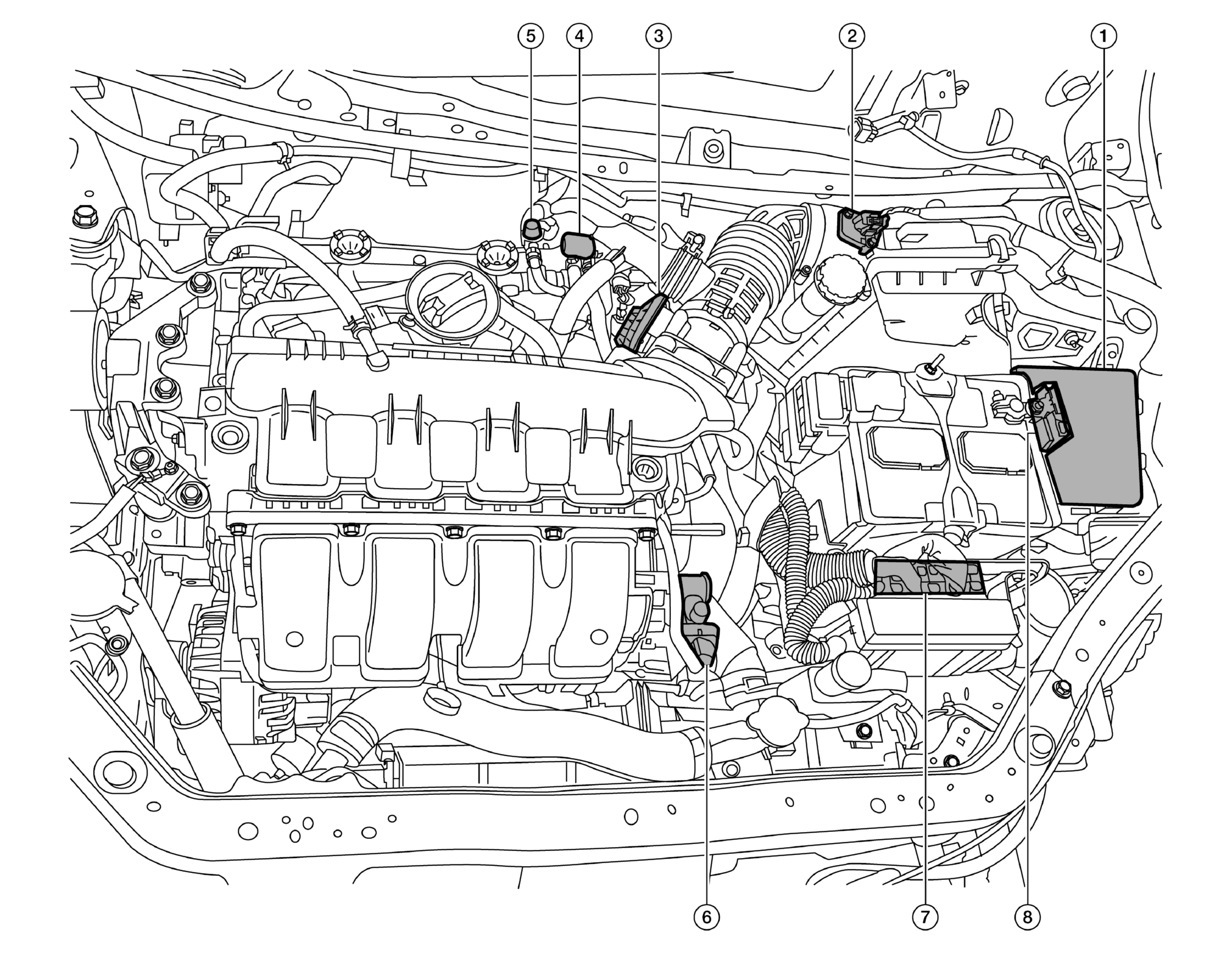

Fig 1: Engine Room Compartment Components Location (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
	IPDM E/R	IPDM E/R control the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. With Intelligent Key System SYSTEM DESCRIPTION FAIL-SAFE SYSTEM DESCRIPTION Without Intelligent Key System SYSTEM DESCRIPTION FAIL-SAFE SYSTEM DESCRIPTION
	Mass air flow sensor (with intake air temperature sensor)	MASS AIR FLOW SENSOR (WITH INTAKE AIR TEMPERATURE SENSOR)
	Electric throttle control actuator (with built in throttle position sensor and throttle control motor)	ELECTRIC THROTTLE CONTROL ACTUATOR
	EVAP canister purge volume control solenoid valve	EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
	EVAP service port	EVAP service port is prepared in order to perform evaporative emission system leak check.
	Intake manifold tuning valve Intake manifold runner control valve	INTAKE MANIFOLD TUNING VALVE INTAKE MANIFOLD RUNNER CONTROL VALVE
	ECM	ECM
	Battery current sensor (with battery temperature sensor)	BATTERY CURRENT SENSOR (WITH BATTERY TEMPERATURE SENSOR)
