Exploded View With Torque Specifications
Fuel Level Sensor Unit

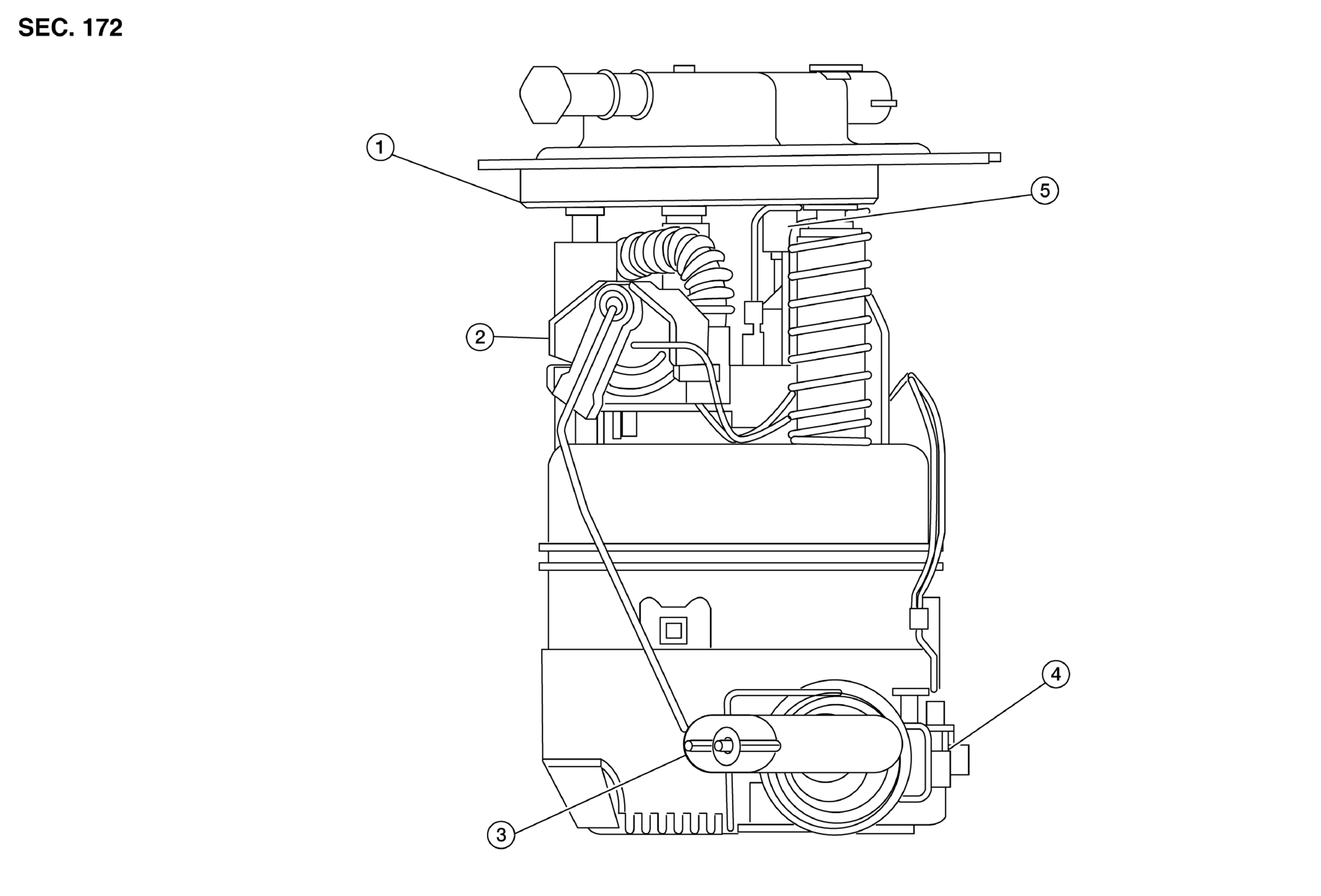

Fig 1: Fuel Level Sensor Unit/Fuel Tank Temperature Sensor Harness Connector
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Fuel filter and pump assembly
2.
Fuel level sensor unit
3.
Float arm assembly
4.
Fuel tank temperature sensor
5.
Fuel level sensor unit/fuel tank temperature sensor harness connector
