Exploded View With Torque Specifications

FOR CALIFORNIA

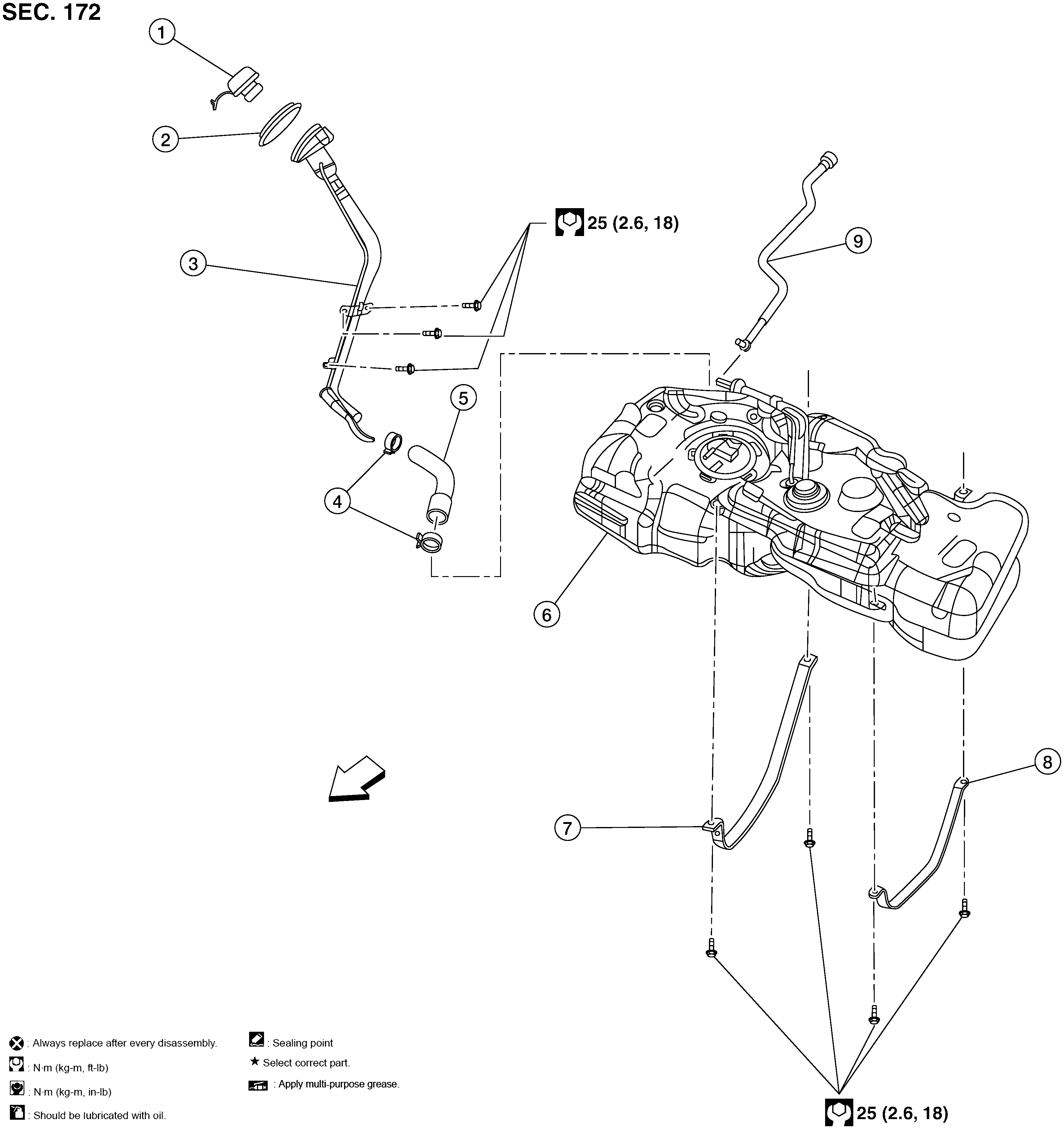

Fig 1: Exploded View Of Fuel Tank For California With Torque Specifications (1 Of 2)
GNSAWBIA2877ZZ-877Courtesy of NISSAN NORTH AMERICA, INC.
1. Fuel filler cap 2. Grommet 3. Fuel filler tube
4. Clamp 5. Fuel filler hose 6. Fuel tank
7. Fuel tank mounting band (RH) 8. Fuel tank mounting band (LH) 9. Vent hose
ARROW Front

EXCEPT FOR CALIFORNIA

Fig 2: Exploded View Of Fuel Tank Except For California With Torque Specifications (2 Of 2)
GNSAWBIA2878ZZ-878Courtesy of NISSAN NORTH AMERICA, INC.
1. Fuel filler cap 2. Grommet 3. Fuel filler tube
4. Clamp 5. Fuel filler hose 6. Fuel tank
7. Fuel tank mounting band (RH) 8. Fuel tank mounting band (LH) 9. Vent hose
ARROW Front
