Diagnostic Test

PRECONDITIONING

Make sure that all of the following conditions are satisfied.

Learning will be cancelled if any of the following conditions are missed for even a moment.
- Battery voltage: More than 11.6 V (At idle)
- Engine coolant temperature: 70 - 100°C (158 - 212°F)
- Selector lever: P or N (CVT), Neutral (M/T)
- Electric load switch: OFF
  (Air conditioner, headlamp, rear window defogger)

  On vehicles equipped with daytime running light systems, set lighting switch to the 1st position to light only small lamps.
- Steering wheel: Neutral (Straight-ahead position)
- Vehicle speed: Stopped
- Transmission: Warmed-up
  - CVT models
    - With CONSULT: Drive vehicle until "ATF TENP SEN" in "DATA MONITOR" mode of "CVT" system indicates less than 0.9 V.
    - Without CONSULT: Drive vehicle for 10 minutes.
  - M/T models
    - Drive vehicle for 10 minutes.
Do you have CONSULT?

YES

GO TO STEP 2 .

NO

GO TO STEP 3 .

IDLE AIR VOLUME LEARNING

With CONSULT
1. Perform Accelerator Pedal Released Position Learning. Refer to DESCRIPTION .
2. Perform Throttle Valve Closed Position Learning. Refer to DESCRIPTION .
3. Start engine and warm it up to normal operating temperature.
4. Select "IDLE AIR VOL LEARN" in "WORK SUPPORT" mode of "ENGINE".
5. Touch "START" and wait 20 seconds.
Is "CMPLT" displayed on CONSULT screen?

YES

GO TO STEP 4 .

NO

GO TO STEP 5 .

IDLE AIR VOLUME LEARNING

Without CONSULT
NOTE:
- It is better to count the time accurately with a clock.
- It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has a malfunction.
1. Perform Accelerator Pedal Released Position Learning. Refer to DESCRIPTION .
2. Perform Throttle Valve Closed Position Learning. Refer to DESCRIPTION .
3. Start engine and warm it up to normal operating temperature.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
6. Repeat the following procedure quickly five times within 5 seconds.
  1. Fully depress the accelerator pedal.
  2. Fully release the accelerator pedal.
7. Wait 7 seconds, fully depress the accelerator pedal and keep it for approximately 20 seconds until the MIL stops blinking and turned ON.
8. Fully release the accelerator pedal within 3 seconds after the MIL turned ON.
9. Start engine and let it idle.
10. Wait 20 seconds.

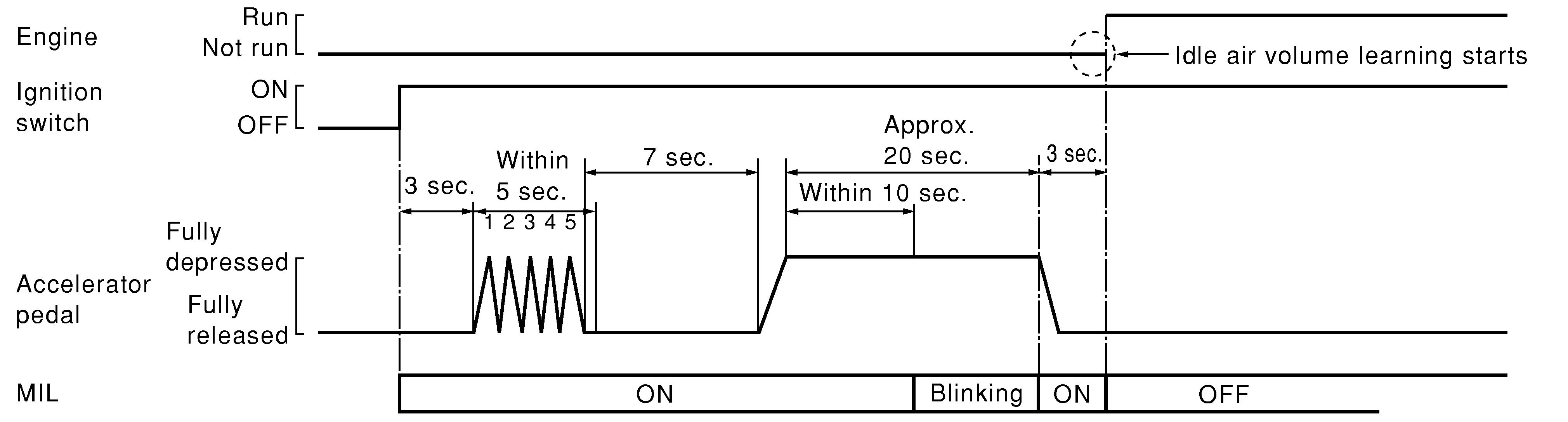

  Fig 1: Accelerator Pedal -- Operation Diagram
  Courtesy of NISSAN NORTH AMERICA, INC.
GO TO STEP 4

CHECK IDLE SPEED AND IGNITION TIMING

Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifications. For specification, refer to IDLE SPEED and IGNITION TIMING .

Is the inspection result normal?

YES

INSPECTION END

NO

GO TO STEP 5 .

DETECT MALFUNCTIONING PART

Check the following
- Check that throttle valve is fully closed.
- Check PCV valve operation.
- Check that downstream of throttle valve is free from air leakage.
Is the inspection result normal?

YES

GO TO STEP 6 .

NO

Repair or replace malfunctioning part.

DETECT MALFUNCTIONING PART

Engine component parts and their installation condition are questionable. Check and eliminate the cause of the incident.

It is useful to perform "TROUBLE DIAGNOSIS - SPECIFICATION VALUE". Refer to DESCRIPTION .

If any of the following conditions occur after the engine has started, eliminate the cause of the incident and perform Idle Air Volume Learning all over again:
- Engine stalls.
- Erroneous idle.
INSPECTION END
