Exploded View With Torque Specifications

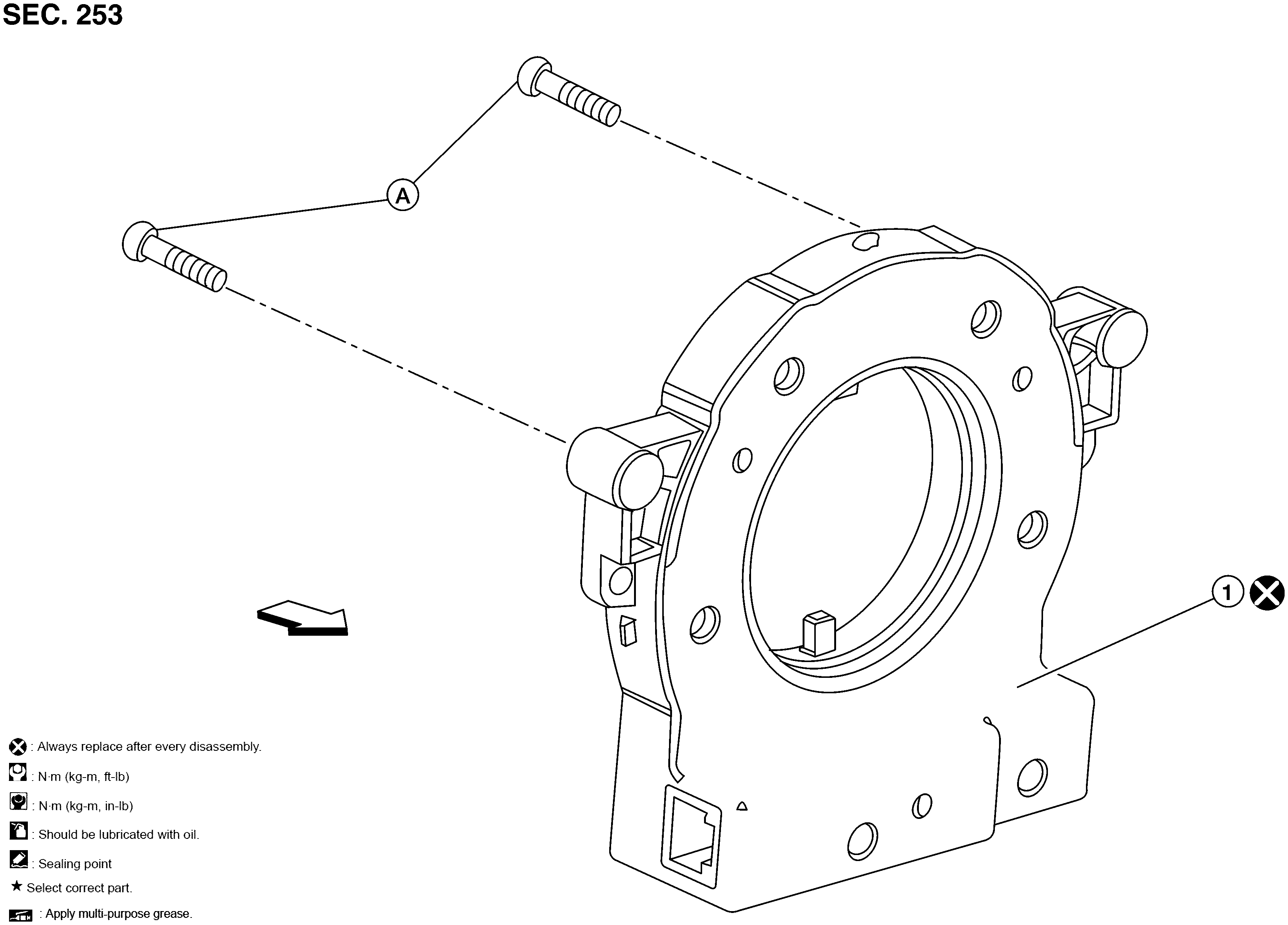

Fig 1: Steering Angle Sensor
GNSALFIA0235ZZ-235Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering angle sensor A. Screw DISAS Do not reuse
ARROW Front
