Exploded View With Torque Specifications

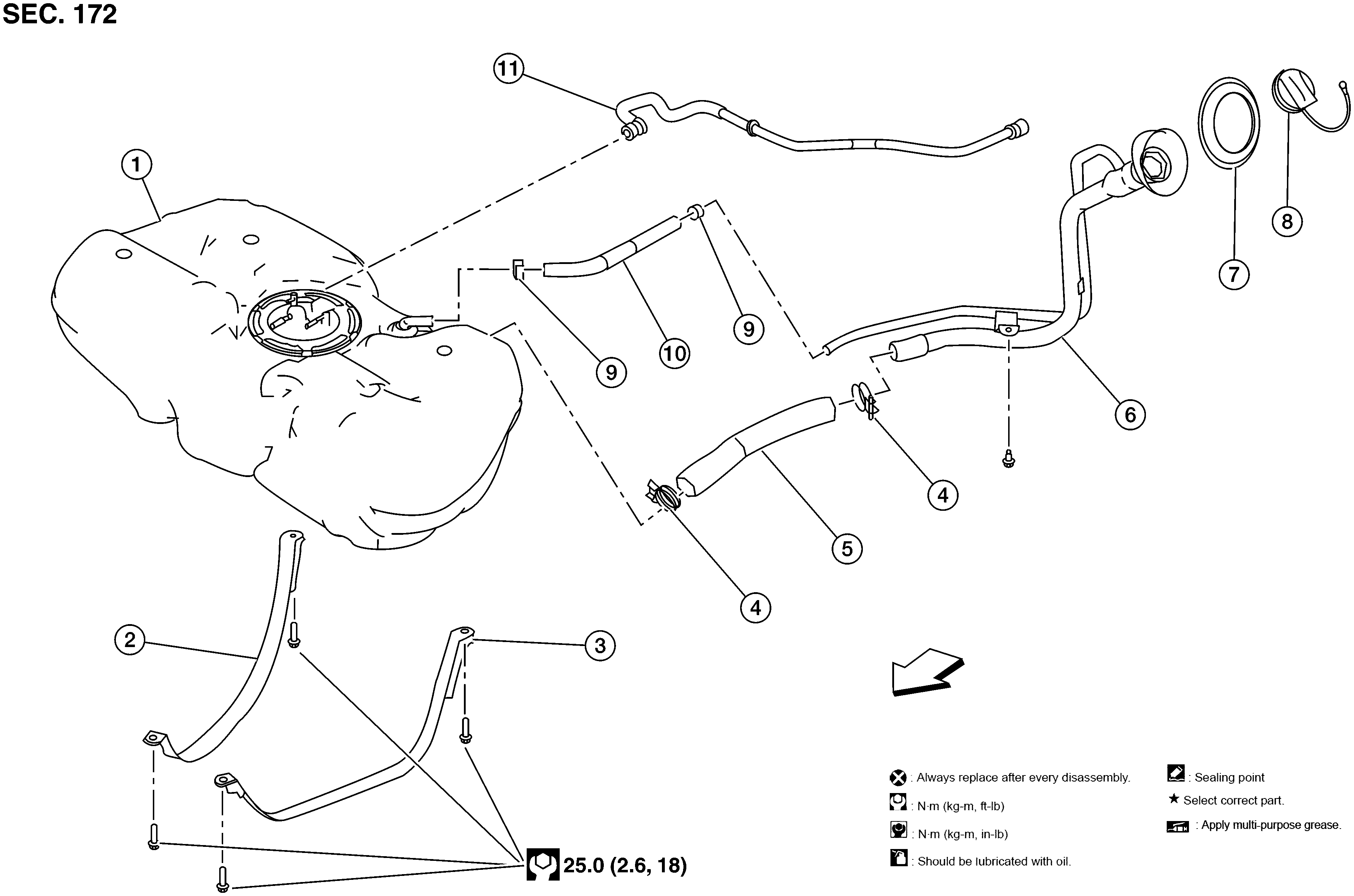

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
GNSAWBIA1592ZZ-592Courtesy of NISSAN NORTH AMERICA, INC.
1. Fuel tank 2. Fuel tank mounting band (RH) 3. Fuel tank mounting band (LH)
4. Clamp 5. Fuel filler hose 6. Fuel filler tube
7. Grommet 8. Fuel filler cap 9. Clamp
10. Vent hose 11. EVAP tube ARROW Front
