Exploded View With Torque Specifications

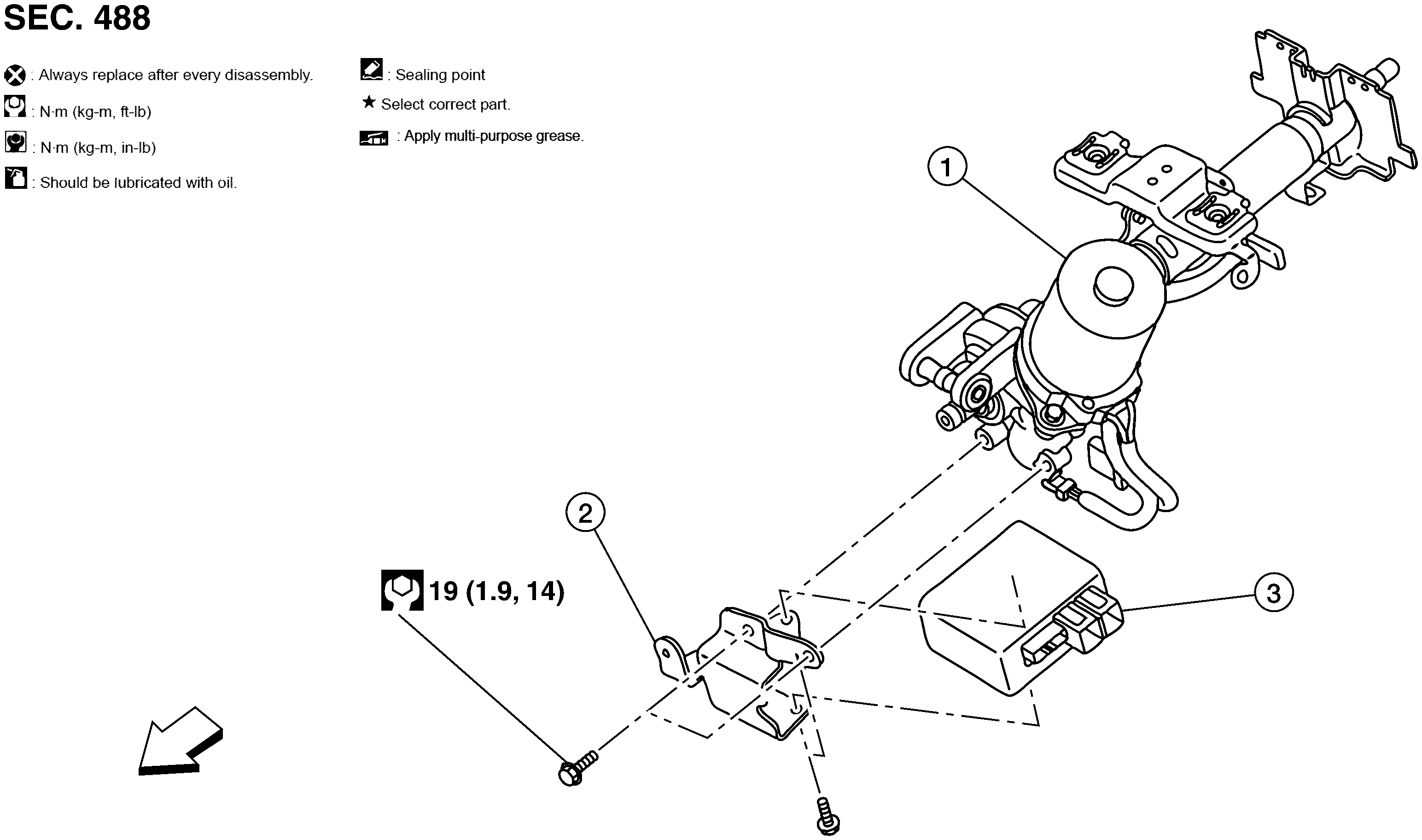

Fig 1: Exploded View Of EPS Control Unit With Torque Specifications
GNSAWGIA0295ZZ-295Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. Bracket plate 3. EPS control unit
ARROW Front
