Disassembly And Assembly: Disassembly

NOTE:

Before disassembly, note the proper placement of the wires to the correct terminals and correct wire routing to the terminals.

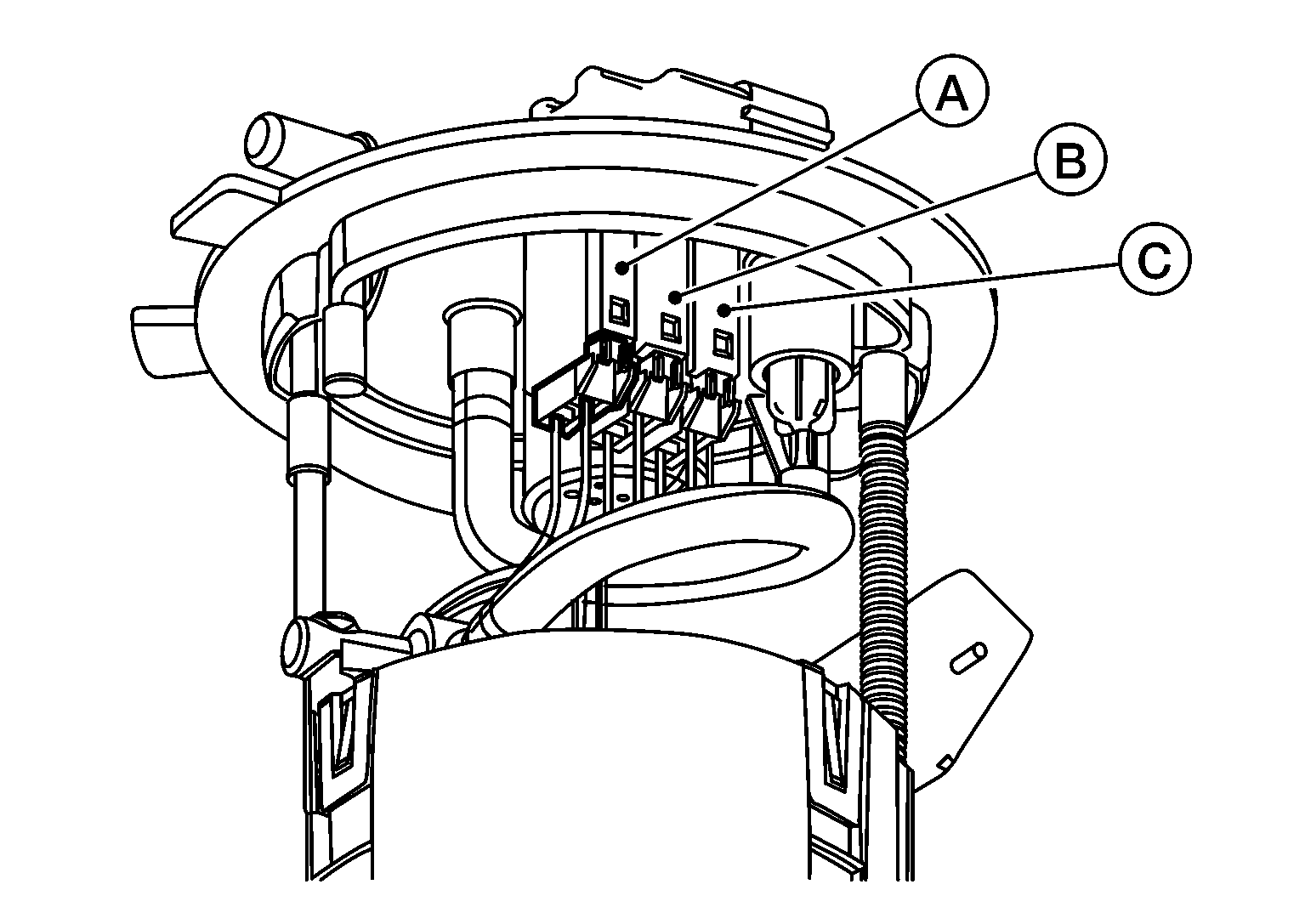

Disconnect the harness connectors from fuel level sensor unit module (A) and fuel temperature sensor (C).

Press the tabs on the terminals to release the locking tabs.

Courtesy of NISSAN NORTH AMERICA, INC.

(B)	: Fuel pump harness connector

Release the two clips and remove the fuel temperature sensor from the pump assembly.

Courtesy of NISSAN NORTH AMERICA, INC.

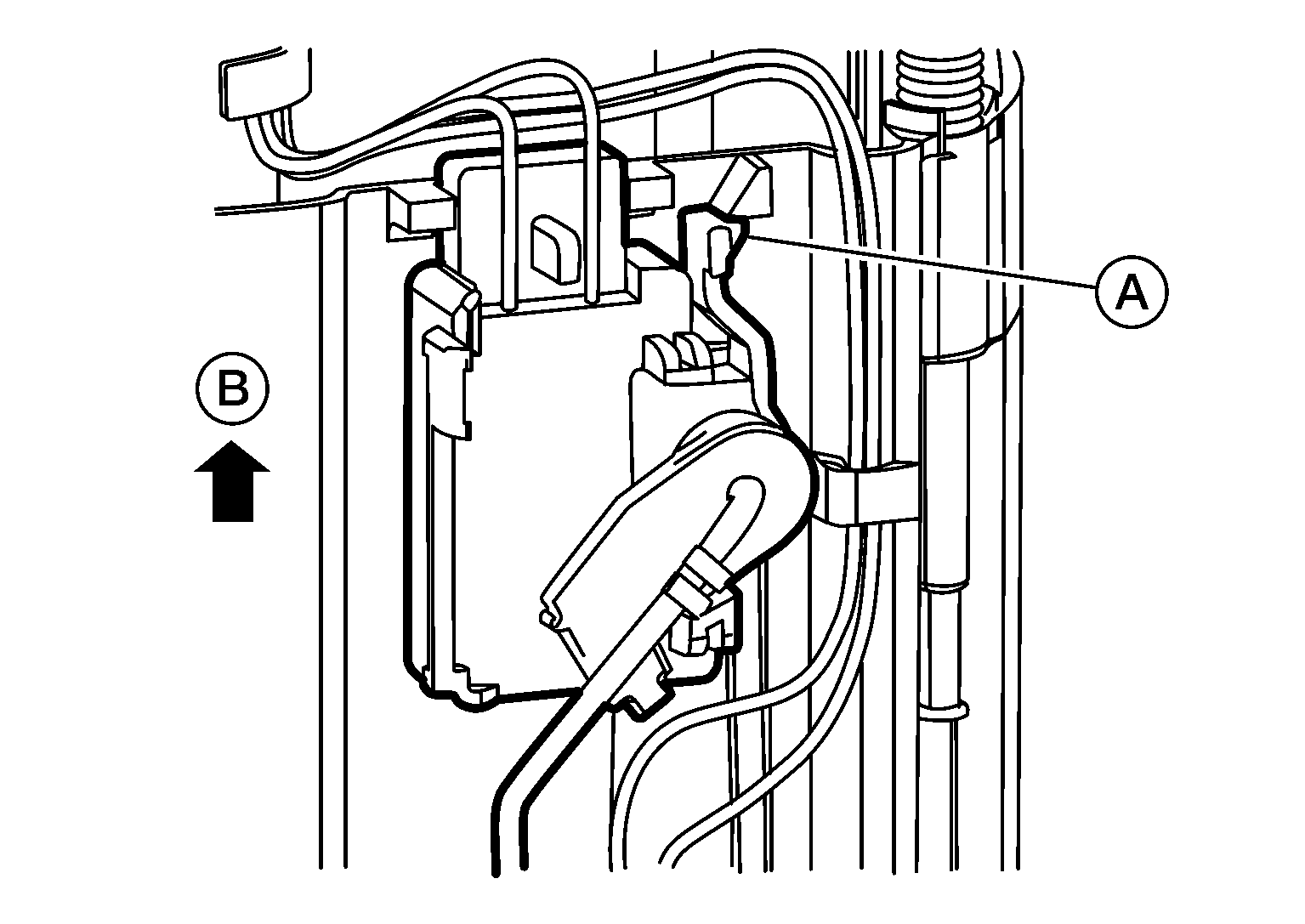

Release the tab (A) and slide the fuel level sensor unit module and float arm assembly up (B) to remove.

Courtesy of NISSAN NORTH AMERICA, INC.
