Component Location

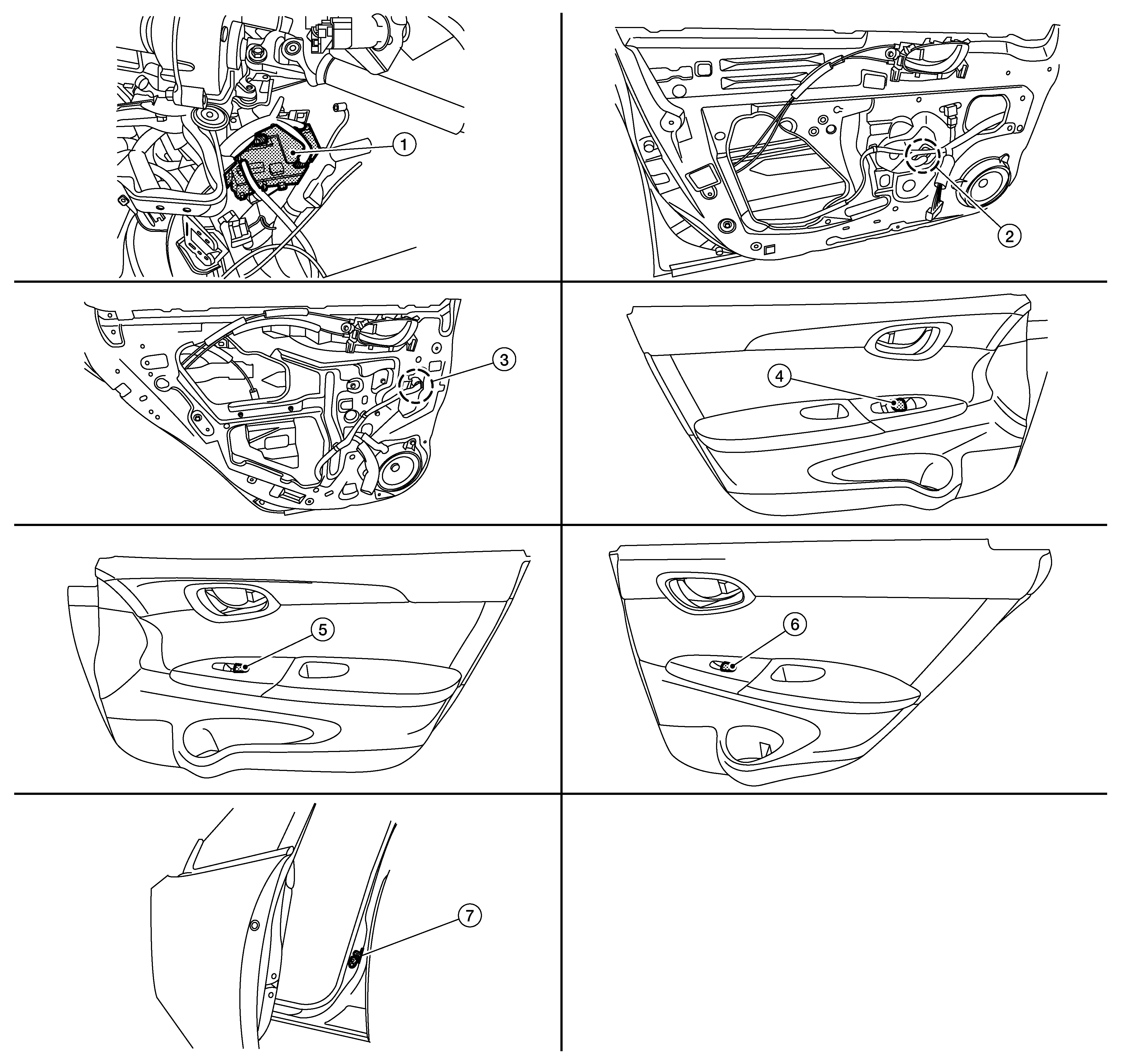

GNSAWKIA3839ZZ-839Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM (view under instrument panel on the left side of the vehicle) 2. Front power window motor LH (RH similar) (view with front door finisher removed) 3. Rear power window motor LH (RH similar) (view with rear door finisher removed)
4. Main power window and door lock/unlock switch 5. Power window and door lock/unlock switch RH 6. Rear power window switch RH (LH similar)
7. Front door switch LH (RH similar)
