Component Location

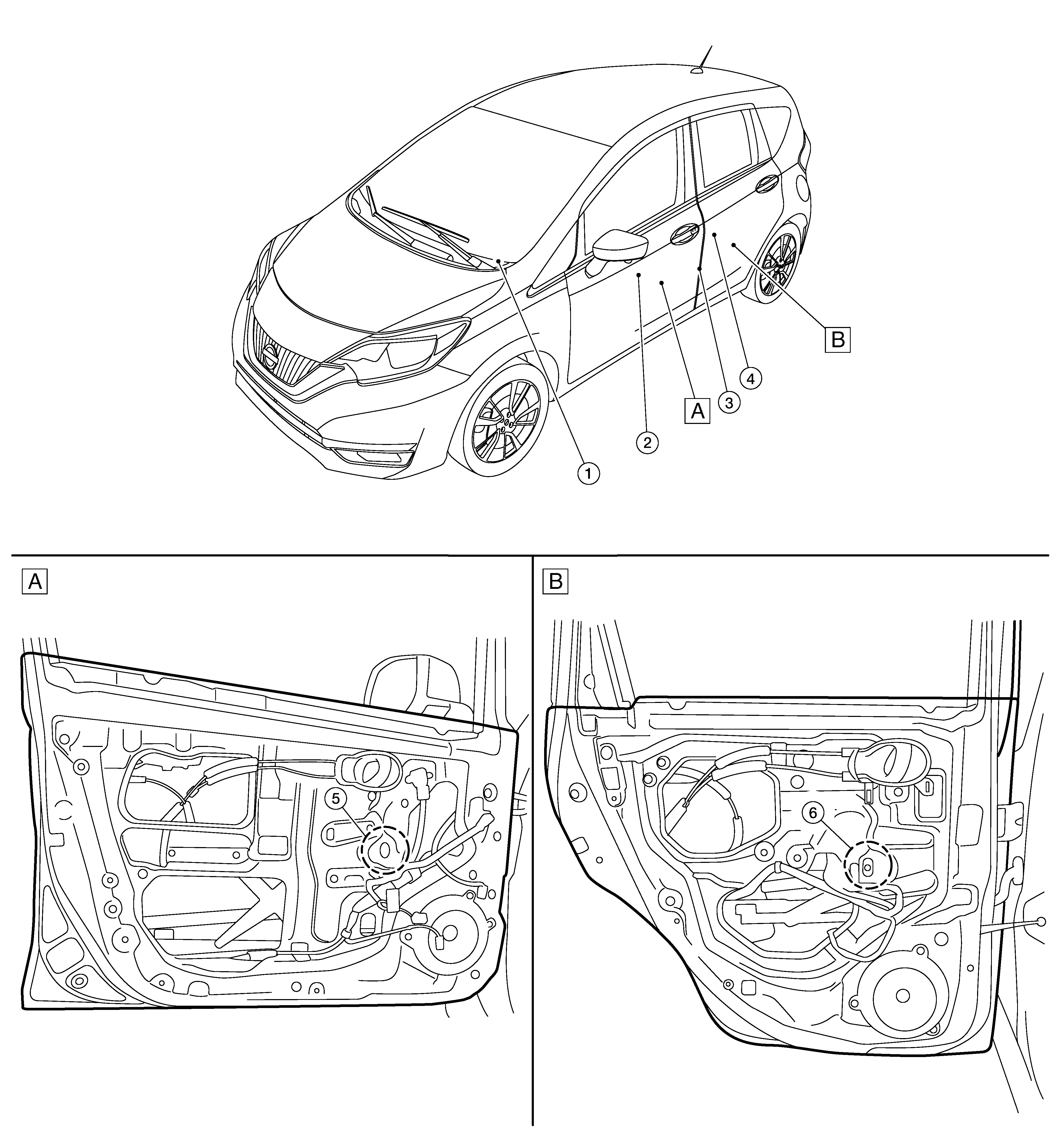

GNSAWKIA4447ZZ-447Courtesy of NISSAN NORTH AMERICA, INC.
A. View with LH front door finisher removed B. View with LH rear door finisher removed
No. Component parts Function
1. BCM
  • Supplies power supply to power window switch.
  • Controls retained power.
  • Refer to COMPONENT LOCATION for detailed installation location.
2. Main power window and door lock/unlock switch Refer to MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH .
3. Front door switch LH
  • Inputs door open/close condition to BCM.
  • Refer to DOOR SWITCH for detailed installation location.
4. Rear power window switch LH Refer to POWER WINDOW SWITCH .
5. Front power window motor LH Refer to POWER WINDOW MOTOR .
6. Rear power window motor LH Refer to POWER WINDOW MOTOR .
