Exploded View

Fuel Level Sensor Unit

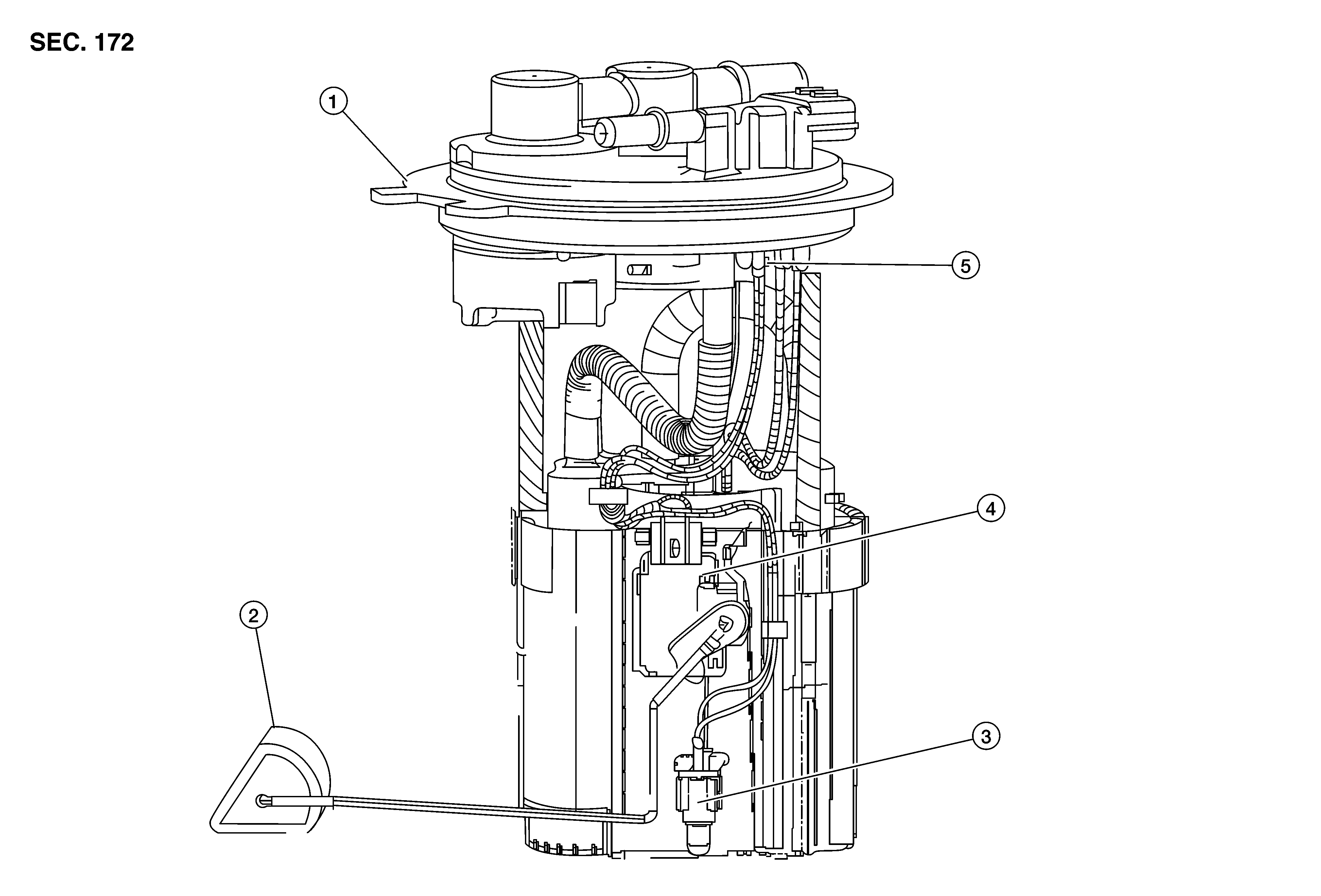

GNSALBIA1132ZZ-132Courtesy of NISSAN NORTH AMERICA, INC.
1. Fuel filter and pump assembly 2. Float arm assembly 3. Fuel tank temperature sensor
4. Fuel level sensor unit 5. Fuel level sensor unit/fuel tank temperature sensor harness connector
