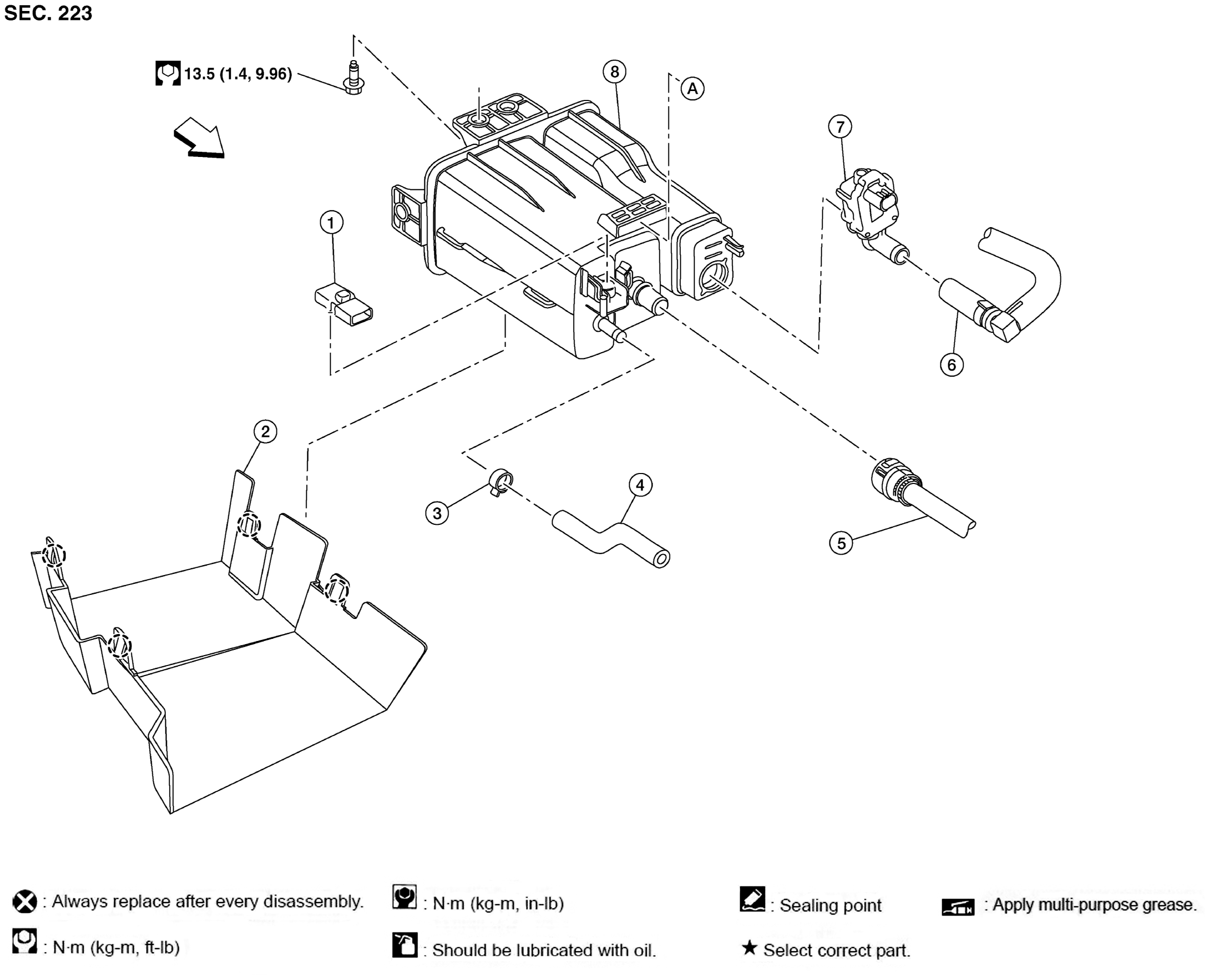

| 1. |
EVAP canister control pressure sensor |
2. |
EVAP canister protector |
3. |
Hose clamp |
| 4. |
EVAP canister purge hose |
5. |
EVAP canister vent line |
6. |
EVAP canister vent control valve hose |
| 7. |
EVAP canister vent control valve |
8. |
EVAP canister |
A. |
Mount to bracket on vehicle |
 |
Pawl |
 |
Front |
|
|
