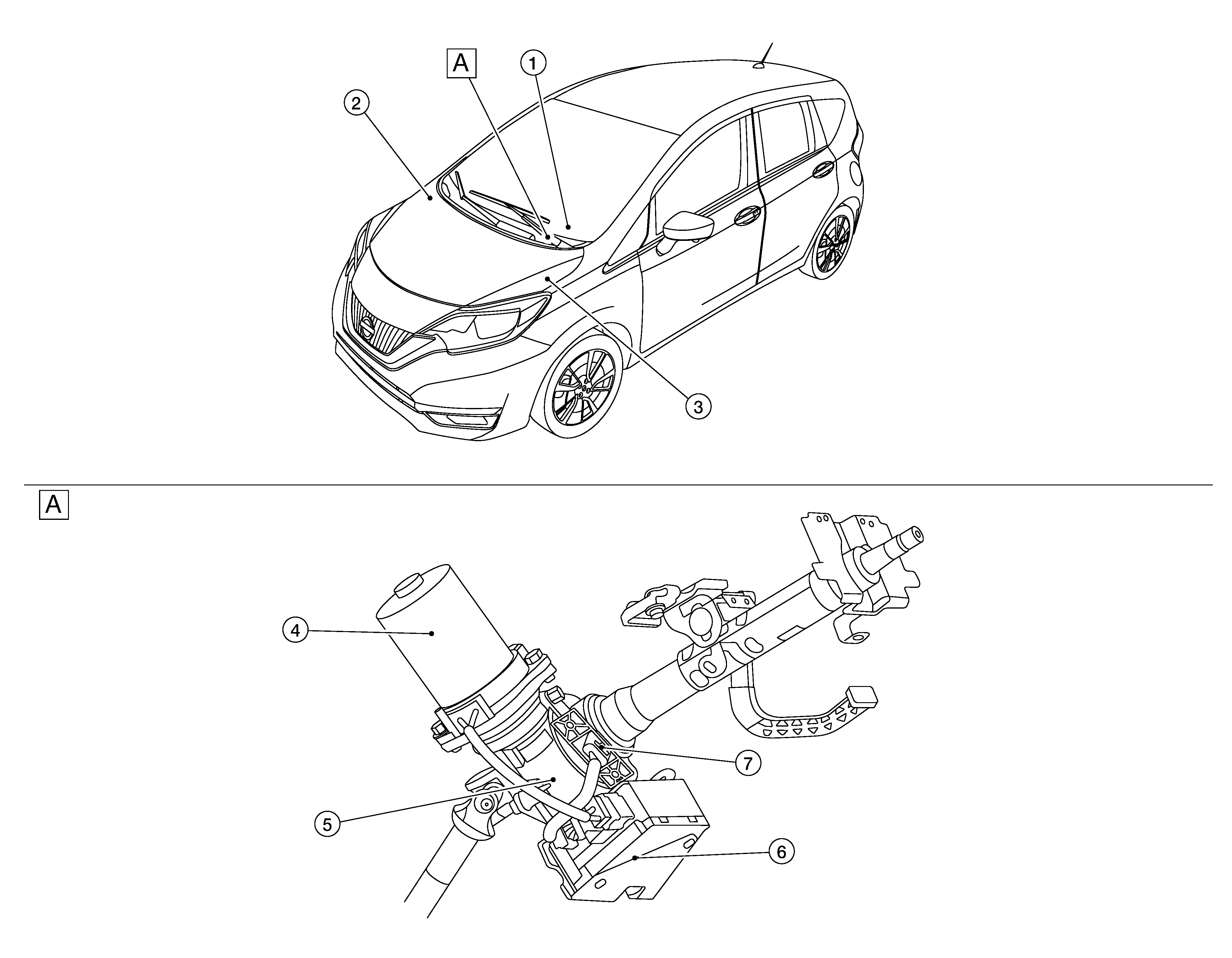

| 1. |
Combination meter
(EPS warning lamp) |
- Transmits mainly the following signal to EPS control unit via CAN communication:
- Vehicle speed signal (Meter)
- Turns ON the EPS warning lamp according to the signal from EPS control unit via CAN communication.
- For detailed installation location, refer to COMPONENT LOCATION
(Type A) or COMPONENT LOCATION
(Type B).
|
| 2. |
ABS actuator and electric unit (control unit) |
- Transmits mainly the following signal to EPS control unit via CAN communication:
- Vehicle speed signal (ABS)
- For detailed installation location, refer to COMPONENT LOCATION
.
|
| 3. |
ECM |
- Transmits mainly the following signal to EPS control unit via CAN communication:
- For detailed installation location, refer to COMPONENT LOCATION
.
|
- Receives mainly the following signal from EPS control unit via CAN communication:
|
| 4. |
EPS motor |
Refer to EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR . |
| 5. |
Reduction gear |
Refer to EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR . |
| 6. |
EPS control unit |
Refer to EPS CONTROL UNIT . |
| 7. |
Torque sensor |
Refer to EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR . |
