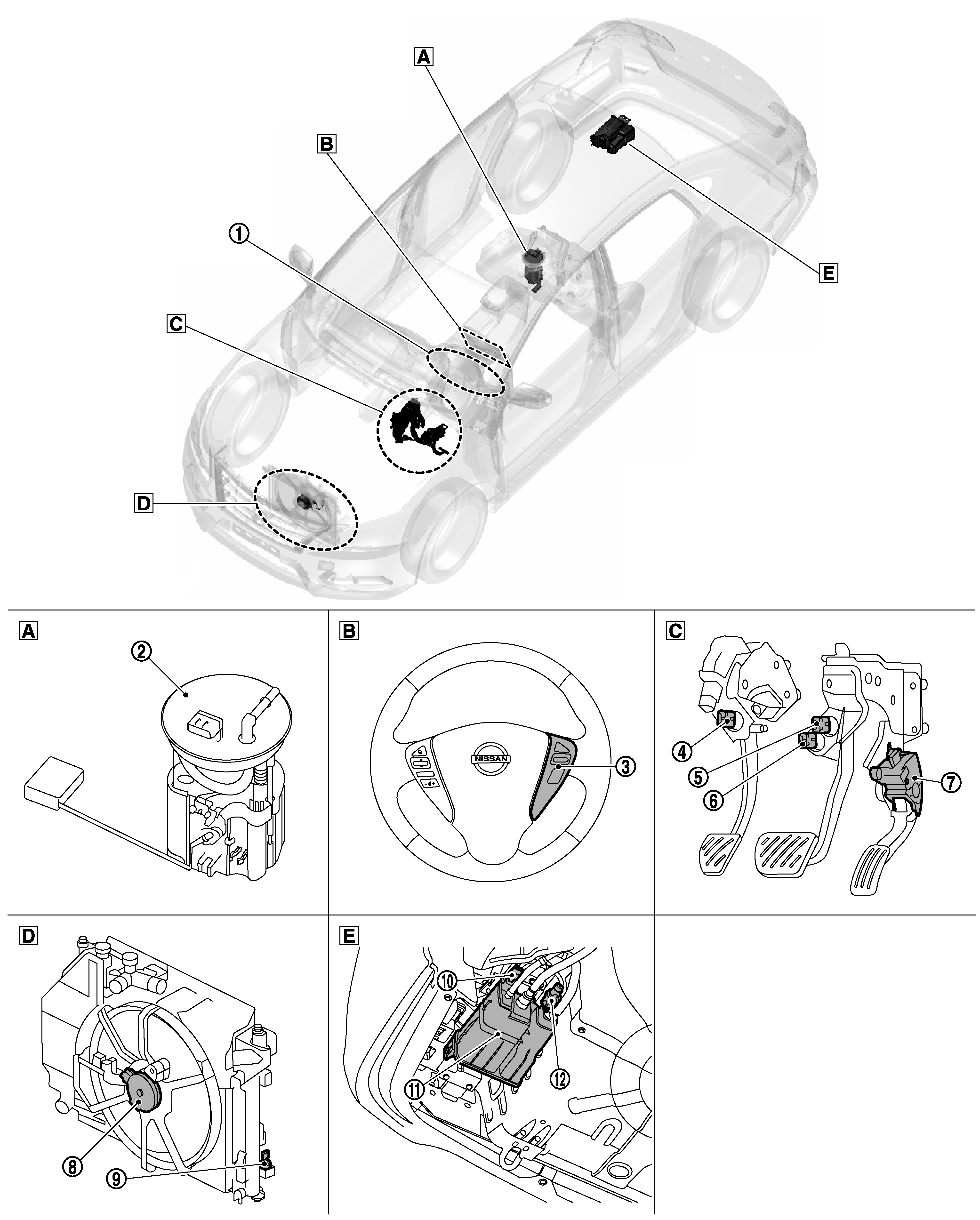

Body Compartment
|
|
Under the right side second seat |
|
On the steering wheel |
|
Periphery of pedals |
|
|
Radiator assembly |
|
Under the left side fuel tank |
|
No. |
Component |
Function |
|
|
Combination meter |
|
|
|
Fuel level sensor unit, fuel filter and fuel pump assembly |
|
|
|
ASCD steering switch (ASCD models) |
|
|
ICC steering switch (ICC models) |
||
|
|
Clutch pedal position switch |
|
|
|
Stop lamp switch |
|
|
|
Brake pedal position switch |
|
|
|
Accelerator pedal position sensor |
|
|
|
Cooling fan motor |
|
|
|
Refrigerant pressure sensor |
|
|
|
EVAP control system pressure sensor |
|
|
|
EVAP canister |
EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the tank. |
|
|
EVAP canister vent control valve |
