Intake Manifold Tuning Valve: Notes

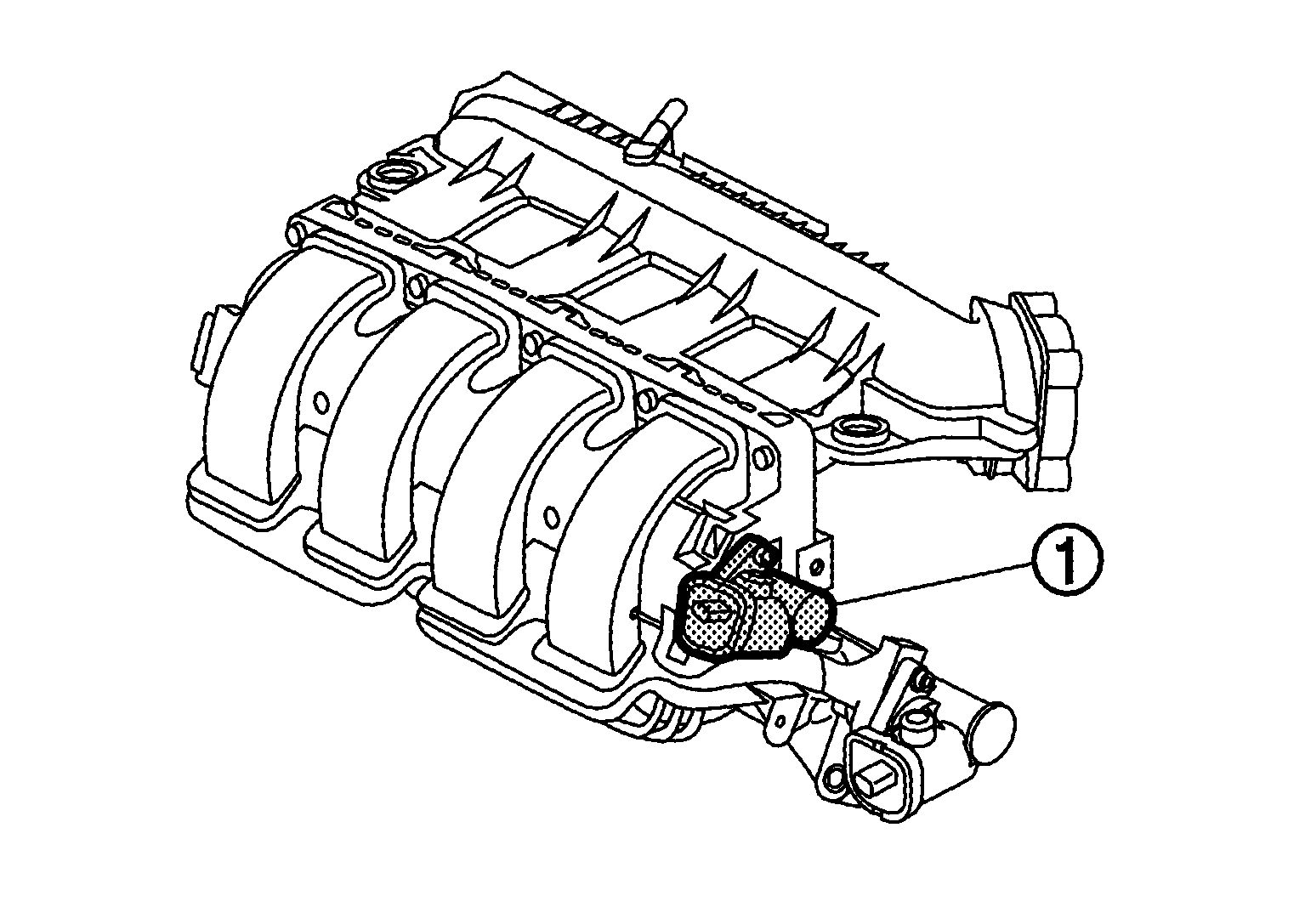

Intake manifold tuning (IMT) valve is integrated to intake manifold.

Courtesy of NISSAN NORTH AMERICA, INC.

Intake manifold tuning valve consists of valve and motor.

Intake manifold tuning valve is used to control the suction passage of the intake manifold tuning system.
