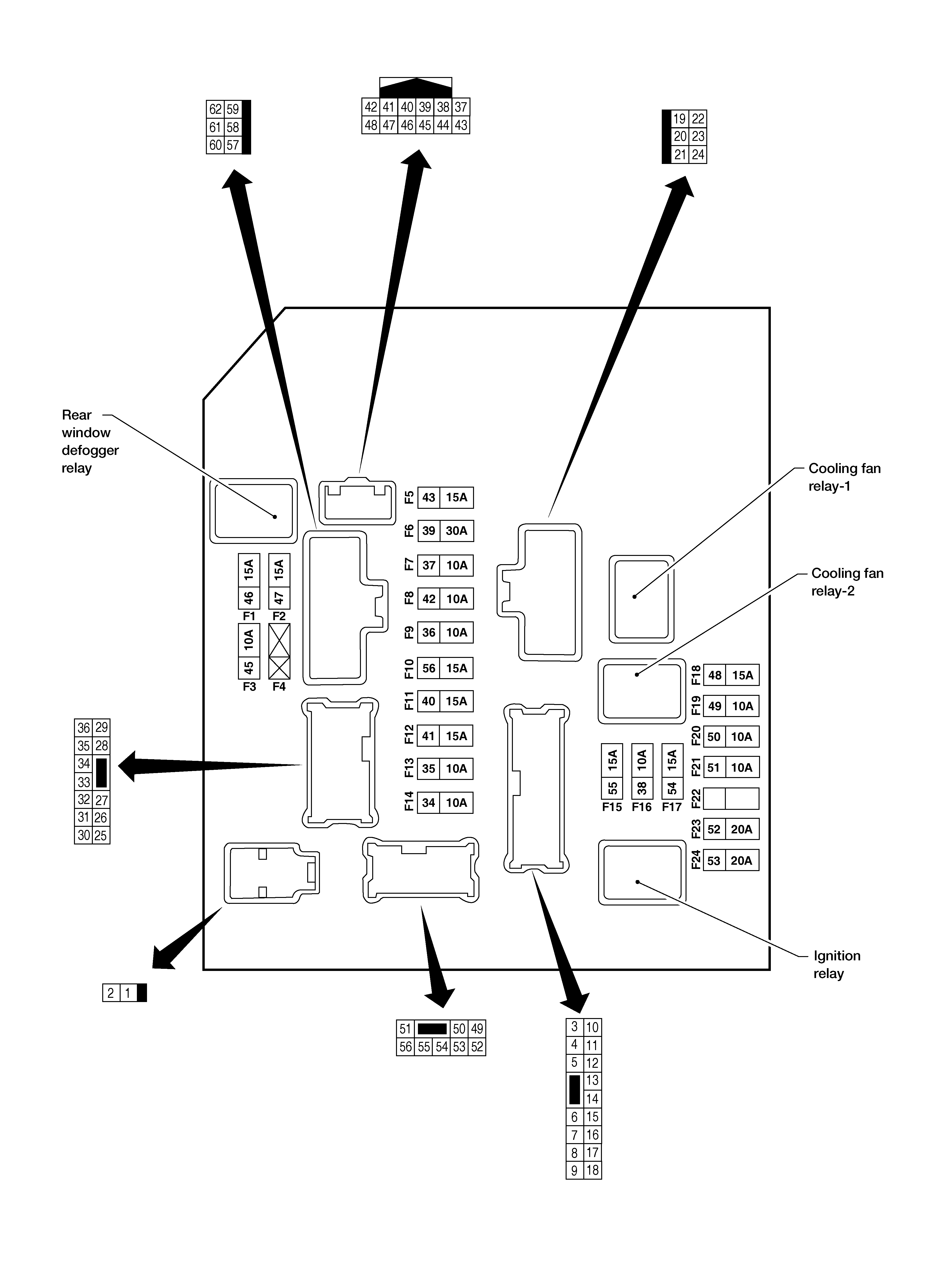

Terminal Layout
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers represent the fuse numbers as they appear in the wiring diagrams.
