Removal and Installation: Removal

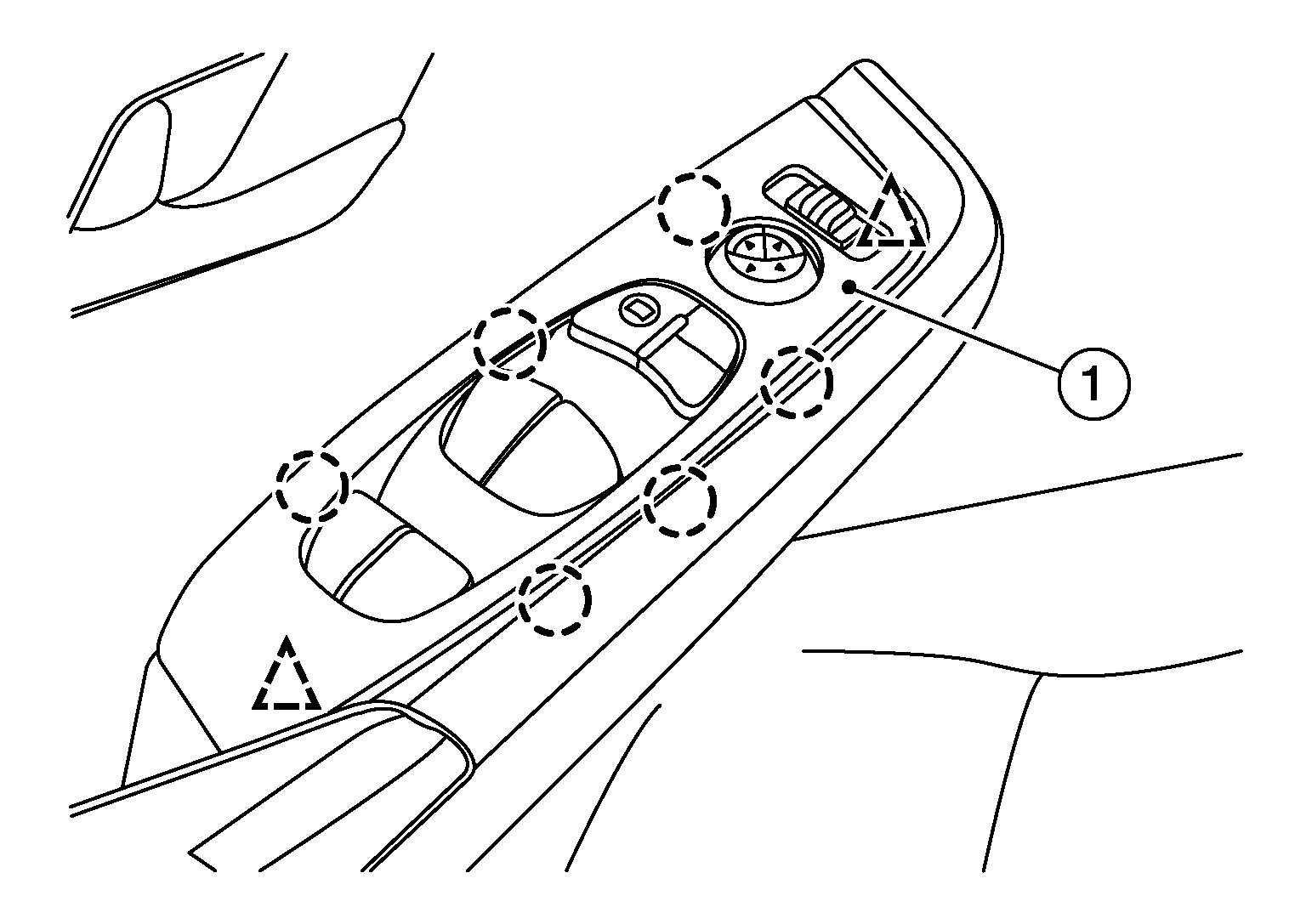

Using suitable tool, release clips and pawls and remove main power window and door lock/unlock switch finisher (1).

Courtesy of NISSAN NORTH AMERICA, INC.

	: Pawl
	: Clip

Disconnect the harness connectors from the main power window and door lock/unlock switch and door mirror remote control switch.

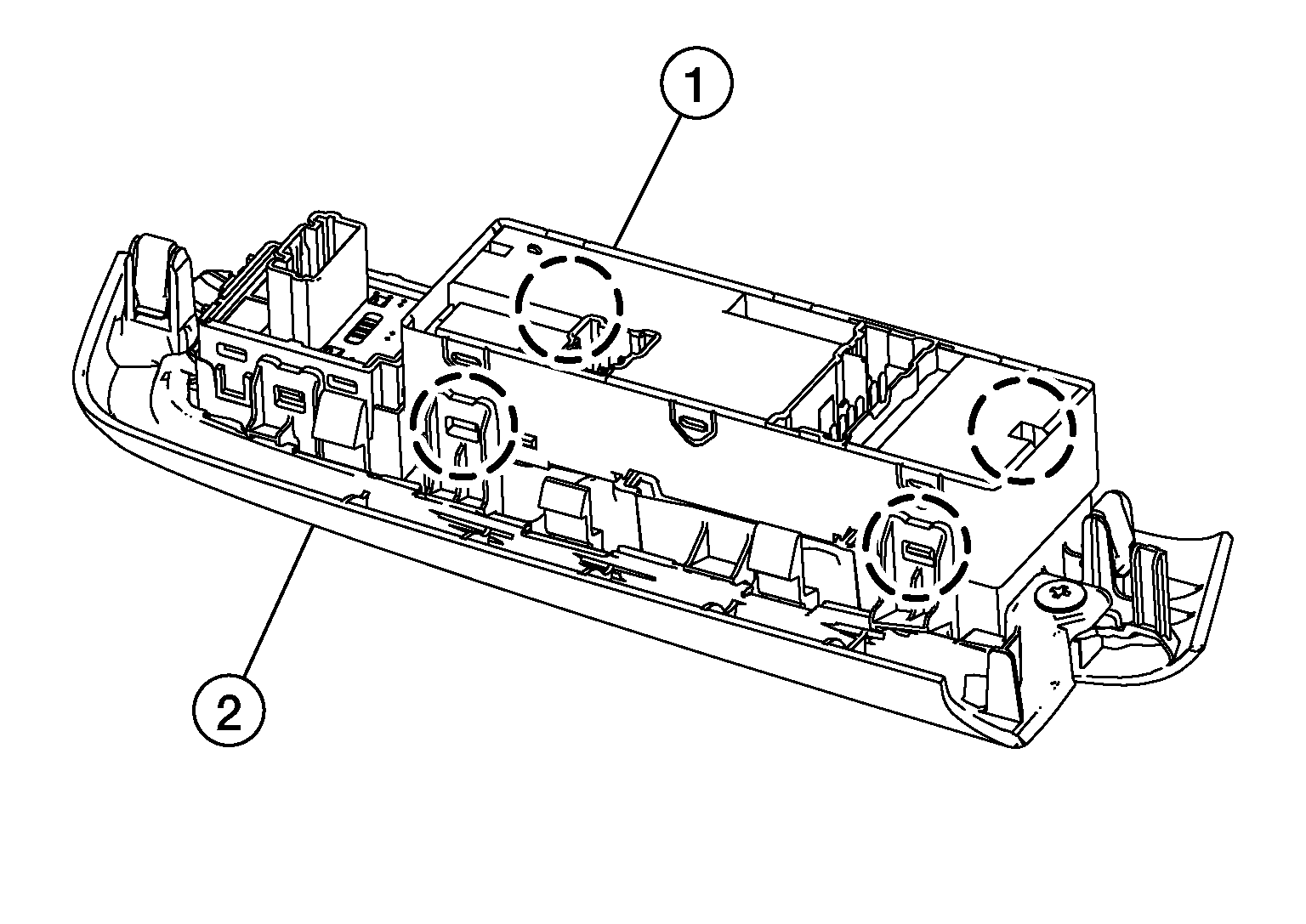

Using a suitable tool, release pawls and remove the main power window and door lock/unlock switch (1) from the main power window and door lock/unlock switch finisher (2).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
