Exploded View

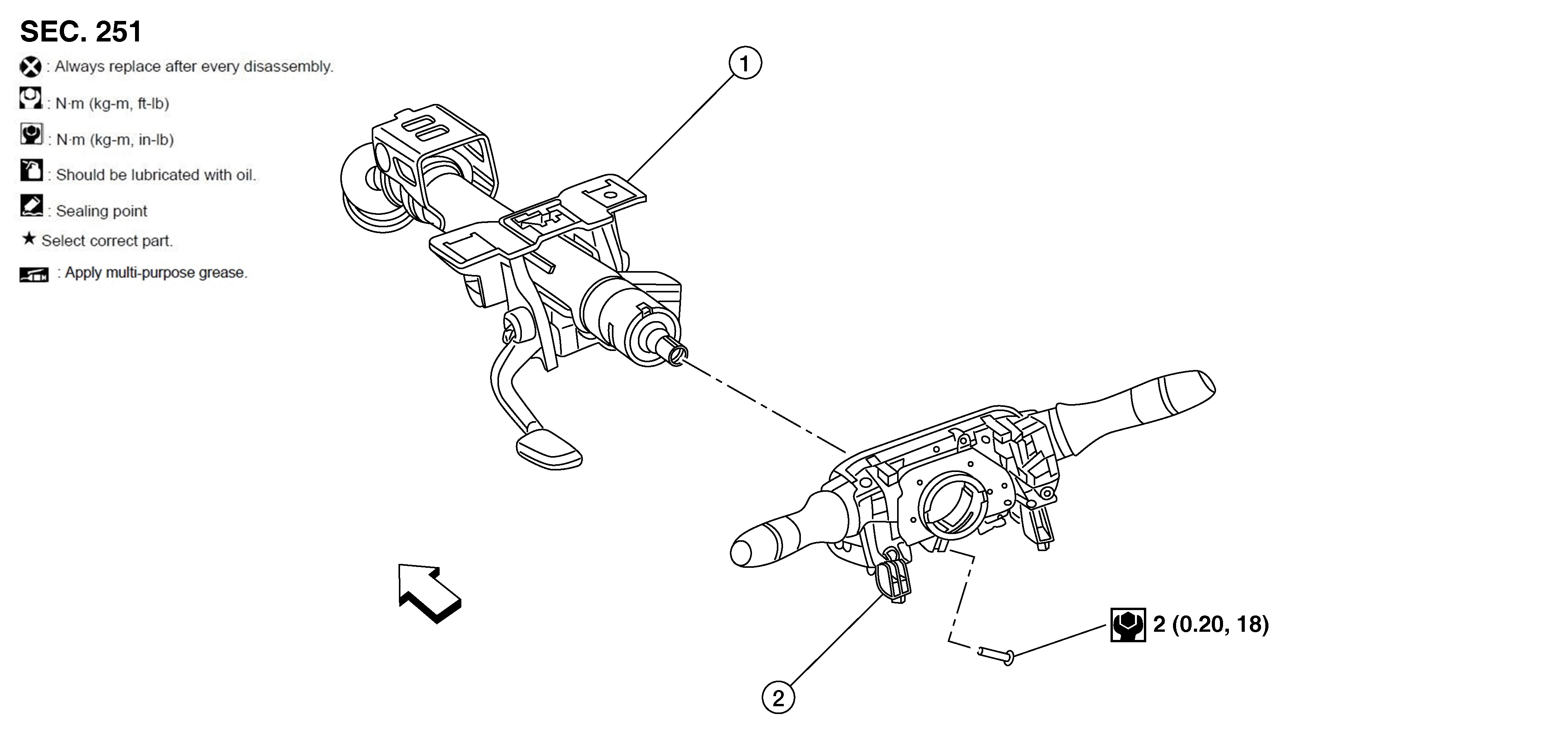

Fig 1: Combination Switch Components With Torque Specifications
GNSALMIA0331Z-331Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Combination switch

SYMBOL

Front
NOTE: Shown with the steering wheel removed for clarity only.
